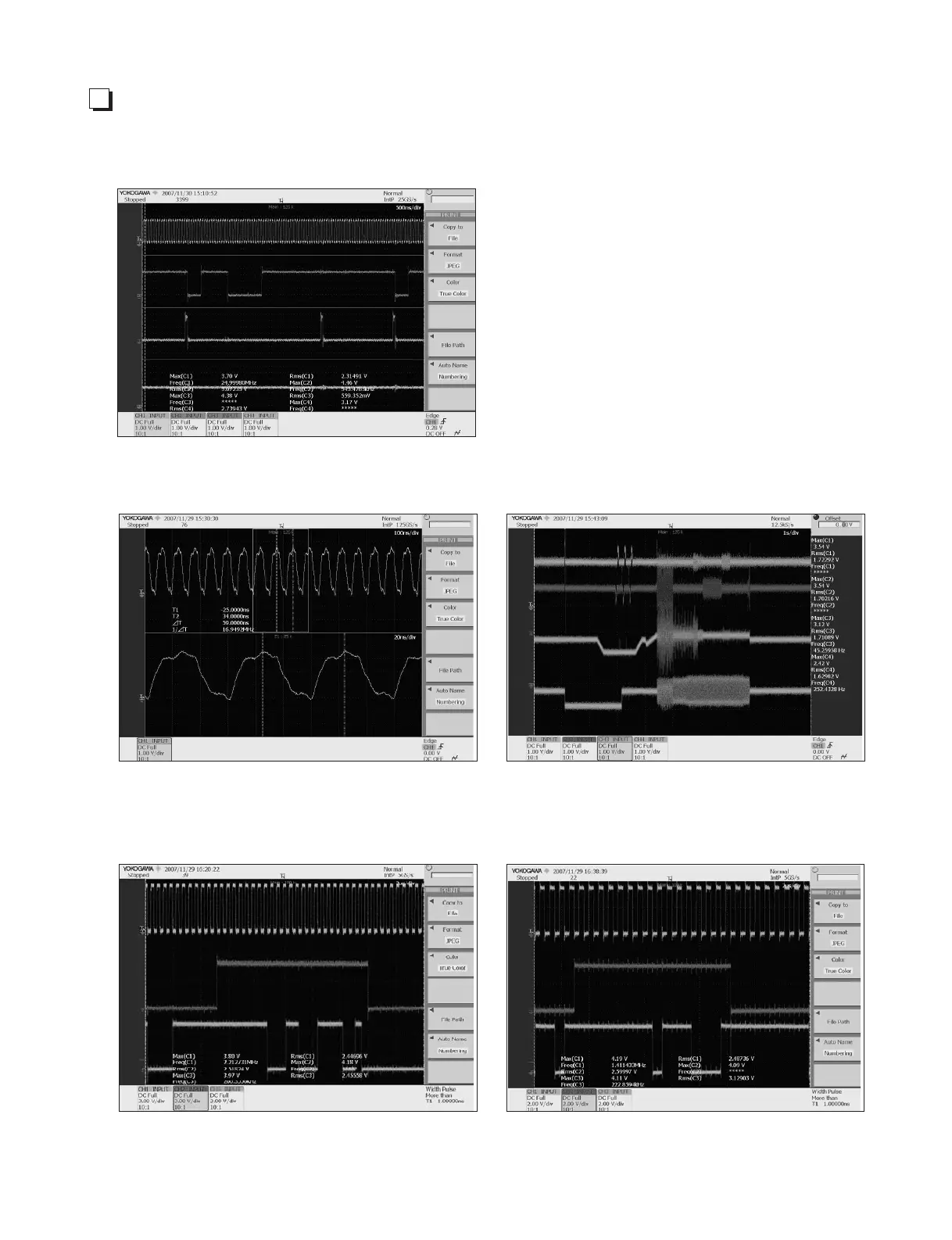

WAVEFORMS OF MAJOR CHECK POINT
1. FLASH/ SDRAM
CLK
DATA
ADDRESS
RESET
FE
TE
FOD
RF
2. SERVO
FLASH/ SDRAM
IC802 PIN 8,21,35
IC803 PIN12
IC807 PIN30 CD-16M
SERVOWAVEFORMS-FE,TE,FOD,RF
BCK
LRCK
DATA
3. AUDIO PATH
CD_ I2S
IC807 PIN34,35,36
MUX_ I2S
IC801 PIN88,99,100
