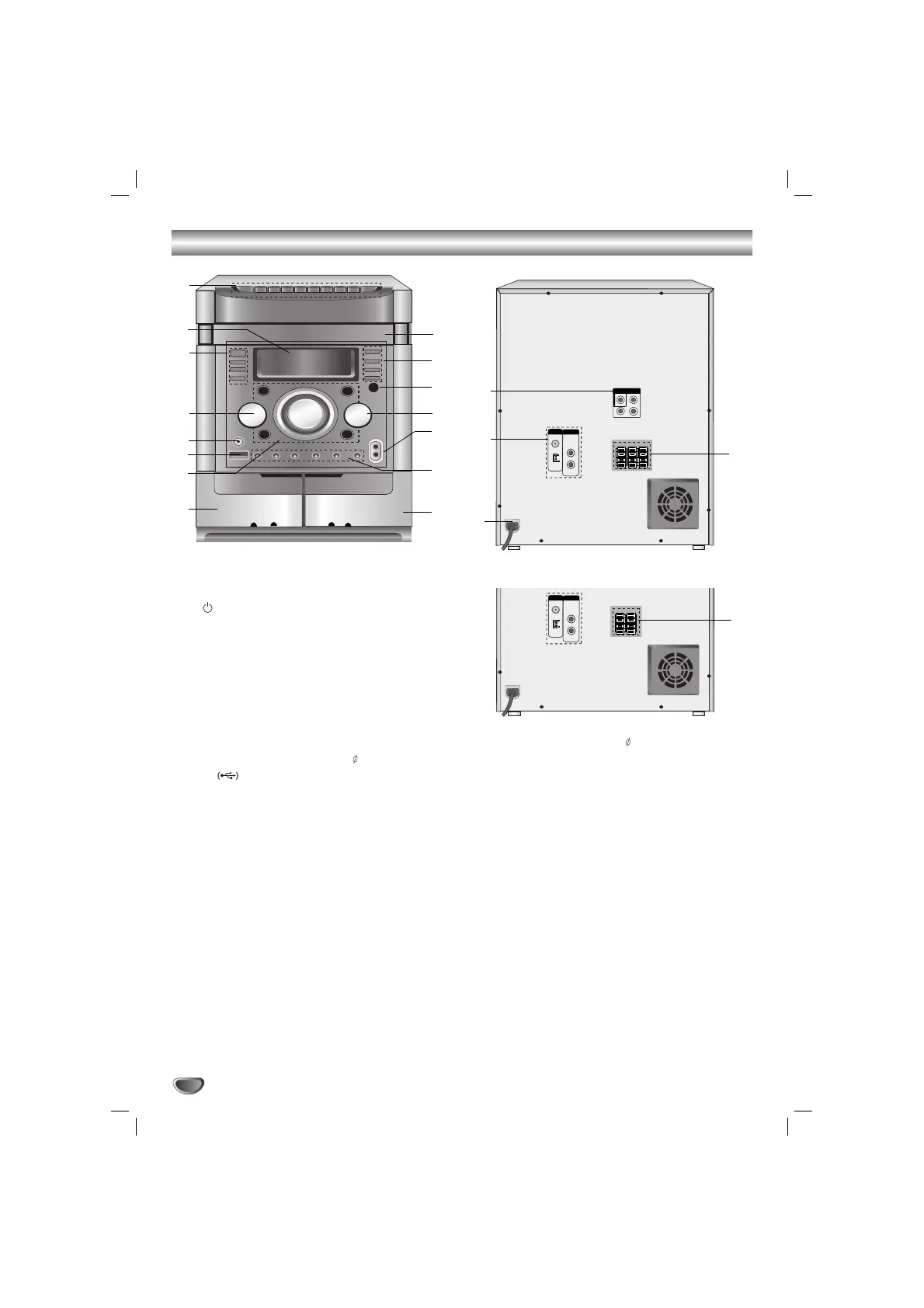

Front Panel/ Rear Panel
1. NUMERIC buttons (0-9)
2. DISPLAY WINDOW
3. • (
/
[
)POWER button
• CLOCK button
• TIMER button
• DUBBING (DUBB.)/ CD SYNCHRO RECORDING
(CD SYNC.)/ (ST./MO.) button
4. MULTI JOG
• MANUAL TUNING
• CD SKIP
• CLOCK ADJUST
• (b-KEY CON-#) KEY CONTROL
5. HEADPHONE Jack (PHONES): 3.5 mm
6 USB connector
7 • FUNCTION SELECT buttons
(TUNER,TAPE, KARAOKE/DVD/CD,AUX)
• EQ. button
• XTS Pro button
• USB button
• XDSS plus button
• Volume control knob
8. Z PUSH EJECT position (TAPE 1)
9. Z PUSH EJECT position (TAPE 2)
10. • RECORD/RECORD PAUSE (zREC/[]) button
• TUN.(-/+) buttons -AUTO TUNING/
REWIND/ FAST FORWARD (
FF
/
GG
) -TAPE/
SCAN (
FF
/
GG
) /TEMPO (-/+) buttons -CD
• PRESET (-/+) buttons/ TAPE REVERSE PLAY
(
bb
) button (OPTIONAL) /TAPE FORWARD PLAY
(
BB
) button
• STOP (xSTOP) button
1
3
4
5
6
7
8
9
10
11
12
13
2
18
15
19
14
17
11. MIC JACKS (MIC1, MIC2): 6.3 mm : OPTIONAL
12. MIC VOLUME (MIC VOL.) knob
13. Remote control sensor
14. • OPEN/CLOSE (Z OP/CL) button
• DISC SKIP (D.SKIP) button
• PLAY MODE, DEMO button
• SET/CD
[]
, RDS (OPTIONAL) button
15. DISC DOOR
16. •
COMPONENT VIDEO OUT (PROGRESSIVE SCAN)
(Y PB PR) Connector
• VIDEO OUT Connector
17. • FM/AM ANTENNA Connector
• AUXILIARY INPUT (AUX IN) connector
18. POWER CORD
19. SPEAKER Connectors (MDT352 Model)
20. SPEAKER Connectors (MDD262 Model)
16
MDD262 Model
MDT352 Model
20
