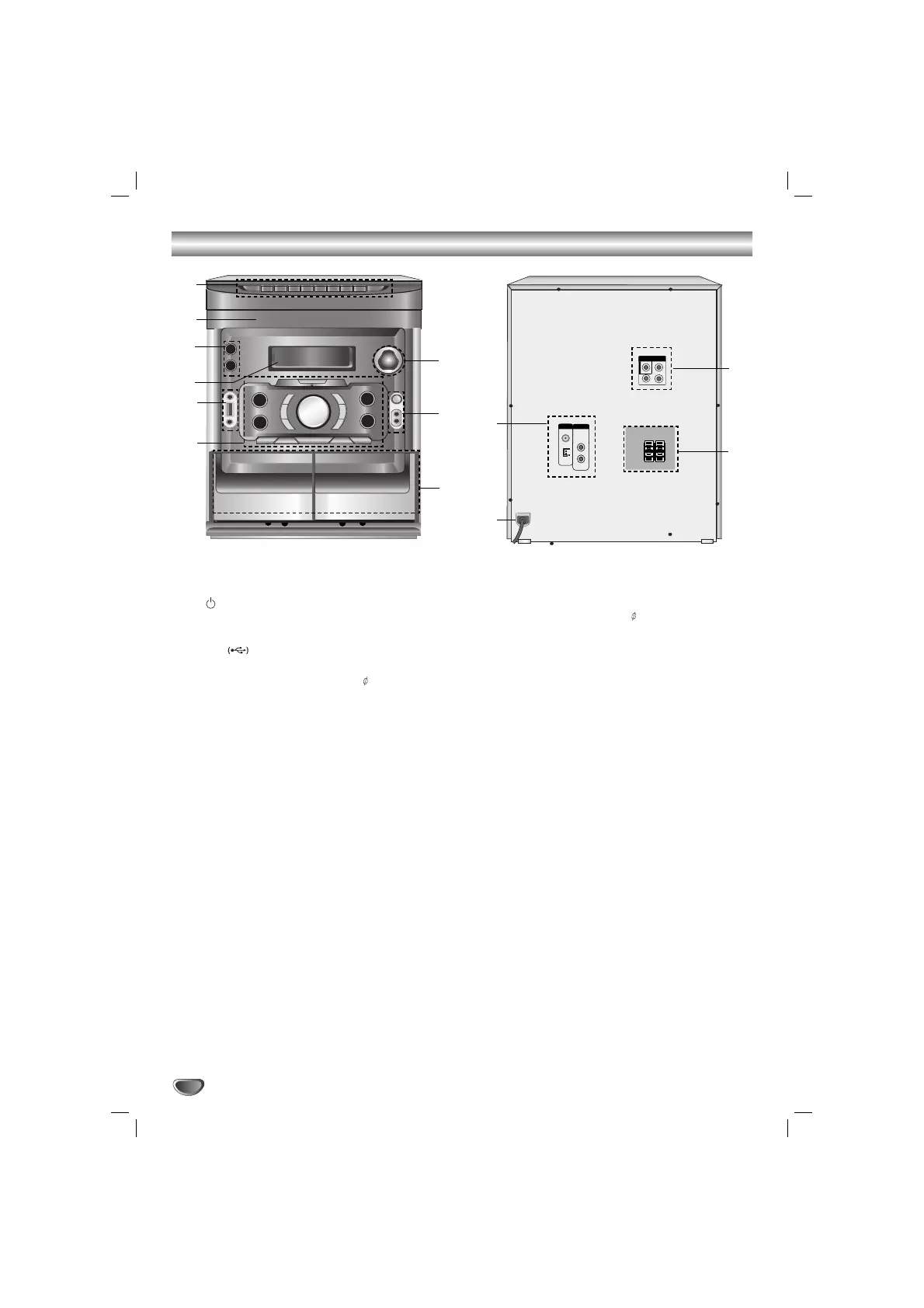

Front Panel/ Rear Panel
1. NUMERIC buttons (0-9)
2. DISC DOOR
3. • (
/
[
)POWER button
• Z OPEN/CLOSE button
4. DISPLAY WINDOW
5. • USB connector
• DEMO button
• HEADPHONE Jack (PHONES):
3.5
mm
6. • XDSS/MP3 OPT.button
• XTS-PRO button
• FUNCTION SELECT buttons
(TUNER,AUX, KARAOKE/CD/DVD,TAPE)
• CLOCK button
• TIMER button
• SET/CD
[]
/RDS-OPTIONAL
• EQ button
• CD SYNCHRO RECORDING (CD SYNC.)/
DUBBING (DUBB.)/ (ST./MONO) button
• REC/[] button
• CD SKIP/SEARCH (.
bbbb
/
BBBB
>),
CD SCAN (.
bbbb
/
BBBB
>)
REWIND/ FAST FORWARD - TAPE
(.
bbbb
/
BBBB
>),TUNING (-/+),
(b- KEY CON. -#) KEY CONTROL buttons
• PRESET (-) button
• PRESET (+)/ FORWARD PLAY (
G
) button
• STOP (xSTOP) button
• Volume control knob
7. • Z PUSH EJECT position (TAPE 1)
• Z PUSH EJECT position (TAPE 2)
8. • MIC VOLUME knob : OPTIONAL
• MIC Jacks (MIC1/ MIC2): 3.5 mm : OPTIONAL
9.
DISC SELECT buttons (1, 2, 3)
10. • FM/AM ANTENNA Connector
• AUXILIARY INPUT (AUX IN) connector
11. POWER CORD
12. SPEAKER Terminals
13. •
COMPONENT VIDEO OUT (PROGRESSIVE
SCAN) (Y PB PR) Connector
• VIDEO OUT Connector
1
3
4
5
6
7
8
9
10
11
12
13
2
