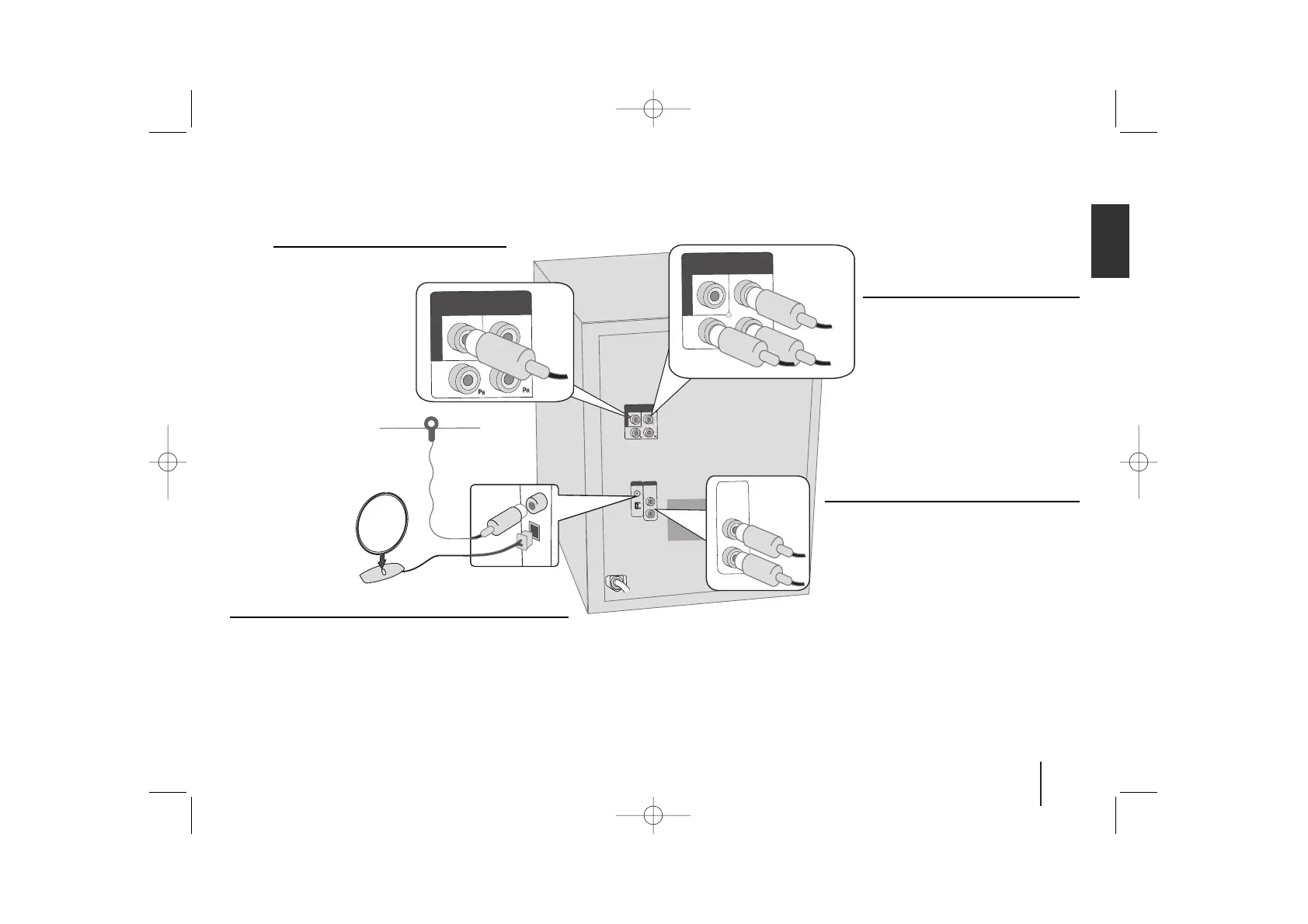

Hooking up the unit
COMPONENT VIDEO OUT
(PROGRESSIVE SCAN) jacks
connection
Connect one end of the component(Y PB
PR) cable to the COMPONENT VIDEO
OUT (PROGRESSIVE SCAN) jack on
the unit and other end to the COMPO-
NENT INPUT jack on your TV.
VIDEO OUT jack connection
Connect the VIDEO OUT jack on the unit to
the corresponding input jacks on your TV
using a Video cable.
AUX IN (L/R) jacks connection
Connect a VCR or Auxiliary device, etc. to the
INPUT jack of this unit.
Press the FUNCTION button on the remote
control until the “AUX” indicator is displayed in
the display window.
Antenna connection
Fit the AM loop aerial to its stand
Connect the AM loop aerial to the unit.
Connect the FM aerial
The reception will be at its best when the two loose ends of
the aerial are in a straight line and horizontal.
