LG MDV902 - Component Identification; Front Panel Controls and Indicators; Rear Panel Connections

4

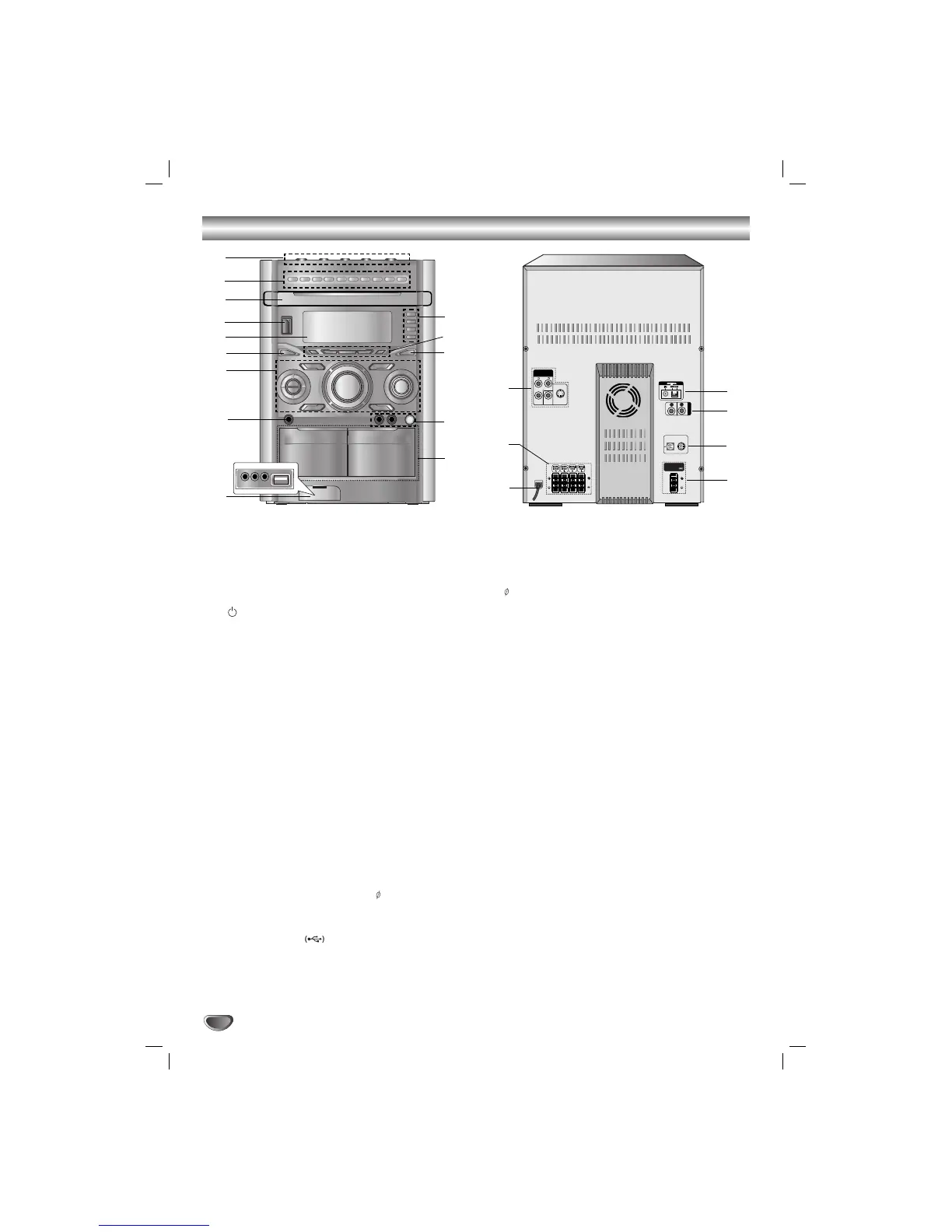

Front Panel/ Rear Panel
WOOFER SYSTEM
AUX IN
SUB WOOFER
SPEAKER
R
L
COMPONENT
YMONITOR
OUT
S-VIDEO
OUT
VIDEO OUT
(PROGRESSIVE SCAN)
REAR
R (8 )
REAR
L (8 )
CENTER
(8 )
FRONT
R (4 )
FRONT
L (4 )
WOOFER
PRE-OUT
AUX IN
MIC ANT.
C
H
A
N
N
E
L
1. • DISC SKIP button
• Z OPEN/CLOSE button
•
DISC SELECT buttons (DISC1, DISC2,DISC3)
2. NUMERIC buttons (0-9)
3. DISC DOOR
4. (
/
[
)POWER button
5. DISPLAY WINDOW
6. XDSS button
7. • (PROG./MEMO.)PROGRAM/MEMORY button
• (zREC/PAUSE[])
RECORD/RECORD PAUSE button
• (PLAY MODE) PLAY MODE/DEMO button
• (SET/CD
[]
/(RDS-OPTIONAL)/AM-NOISE button
• FUNCTION SELECT buttons
(TUNER, KARAOKE/DVD,TAPE, USB,AUX/AV)
• VOLUME knob
• EQ button
• SURROUND button
• (MP3 OPT) MP3 OPTIMIZER button
• USER EQ button
MULTI JOG.
• MANUAL TUNING
• CD SKIP(.SKIP>)
• CLOCK ADJUST
• (b-KEY CON-#) KEY CONTROL
8. HEADPHONE Jack (PHONES): 6.3 mm
9. • GAME LINK connector
(VIDEO IN, AUDIO L/R)
• USB connector
10. Z PUSH EJECT position (TAPE 1)
Z PUSH EJECT position (TAPE 2)
11.• MIC VOLUME knob (MIC VOL.)
• MIC Jacks (MIC1/ MIC2):
6.3 mm : OPTIONAL
12. OAO button
13. • AUTO TUNING DOWN/UP button
REWIND/ FAST FORWARD(
bbbb
/
BBBB
)/
TEMPO DOWN(-)/TEMPO UP(+)/SCAN(-/+)
• PRESET DOWN/UP button
• STOP/CLEAR(x) button
• BACKWARD PLAY (
bb
) button - OPTIONAL
• FORWARD PLAY (
BB
) button
14.
• CLOCK button
• TIMER button
• (ST./MONO) STEREO/MONO,
(NOR.DUBB.) NORMAL DUBBING button
• CD SYNCHRO RECORDING (CD SYNC.),
HIGH DUBBING (HI-DUBB.) button
15. • COMPONENT VIDEO OUT
(PROGRESSIVESCAN) connector (Y P
B PR)
• MONITOR OUT Jack
• S-VIDEO OUT Jack
16.
SPEAKER Terminal
17. POWER CORD
18. SUBWOOFER SPEAKER Terminal
19. WOOFER SYSTEM Terminal
20. (AUX IN) AUXILIARY INPUT Jack
21. (FM/AM) ANTENNA Jack
1
3
4
5
6
7
8
9
10
11
12
13
2
14
18
16
15
17
19
20
21
