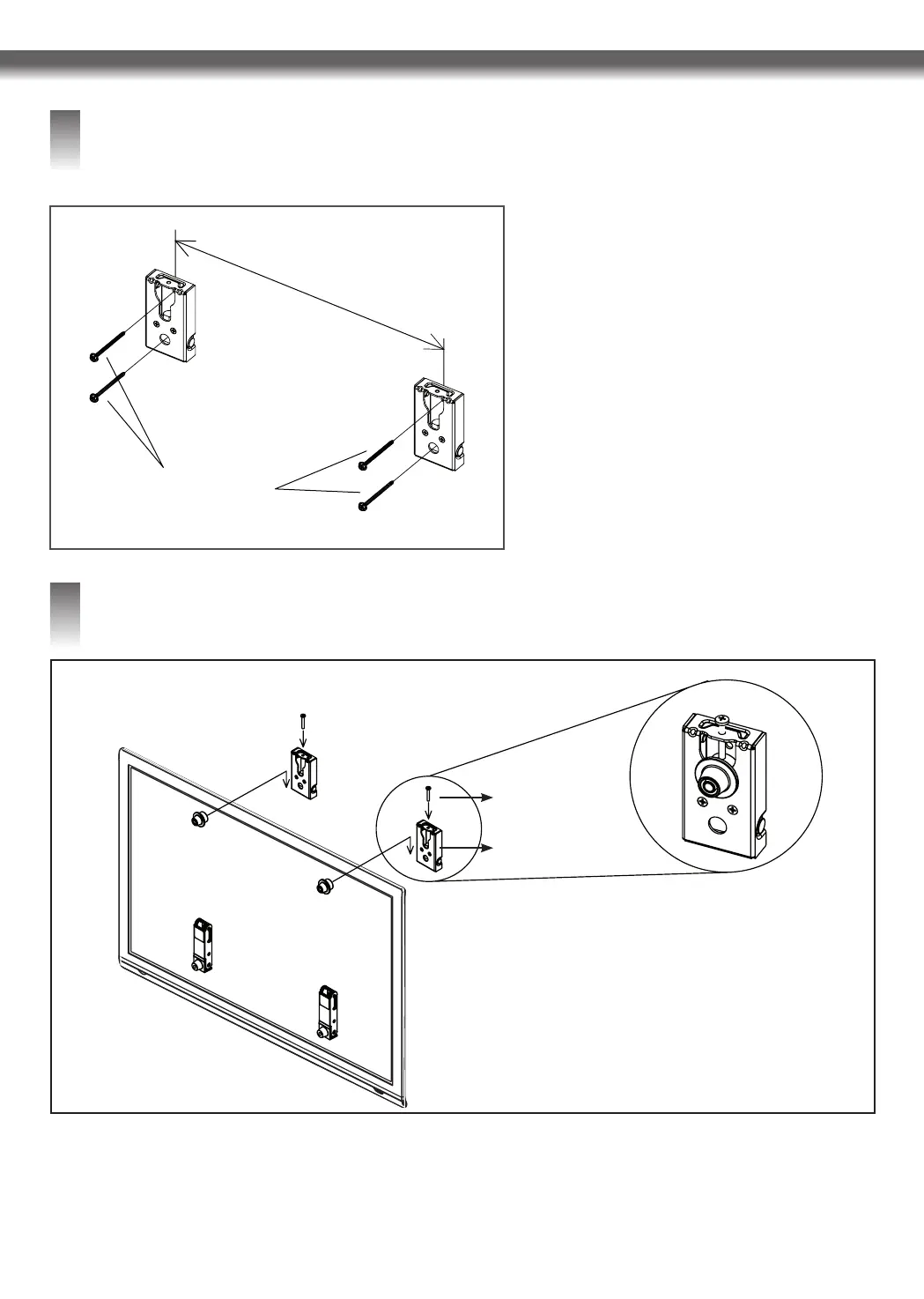

Installing Wall Mounting Bracket
Wall mount anchor
200 mm or 400 mm
Install the brackets to the desired mounting
locations on the wall.
If either of the mounting locations is
inappropriate for installation, move both of the
brackets to the locations that meet the
conditions above.
Attach the wall mounting bracket using the wall
mounting anchors as shown in the figure.
Tighten the screws until the wall, the wall
mounting bracket and the screws are joined
together securely using a (manual or electric)
phillips screwdriver or 8 mm spanner.
<Attaching the screws>
5
Connecting the Bracket to the TV
Assemble the guide spacers of the wall mounting bracket and the safety/horizontal alignment screws as shown in
the figure.
Make sure that the product is attached securely by pulling on the bottom of the set.
When mounting the product that has a speaker, hold and lift up on the product, not the speaker.
- Always have 2 or more people hold the product for installation.
Safety/horizontal
alignment screw
Wall Bracket Top
