INSTALLATION OF INDOOR, OUTDOOR UNIT
ENGLISH
9

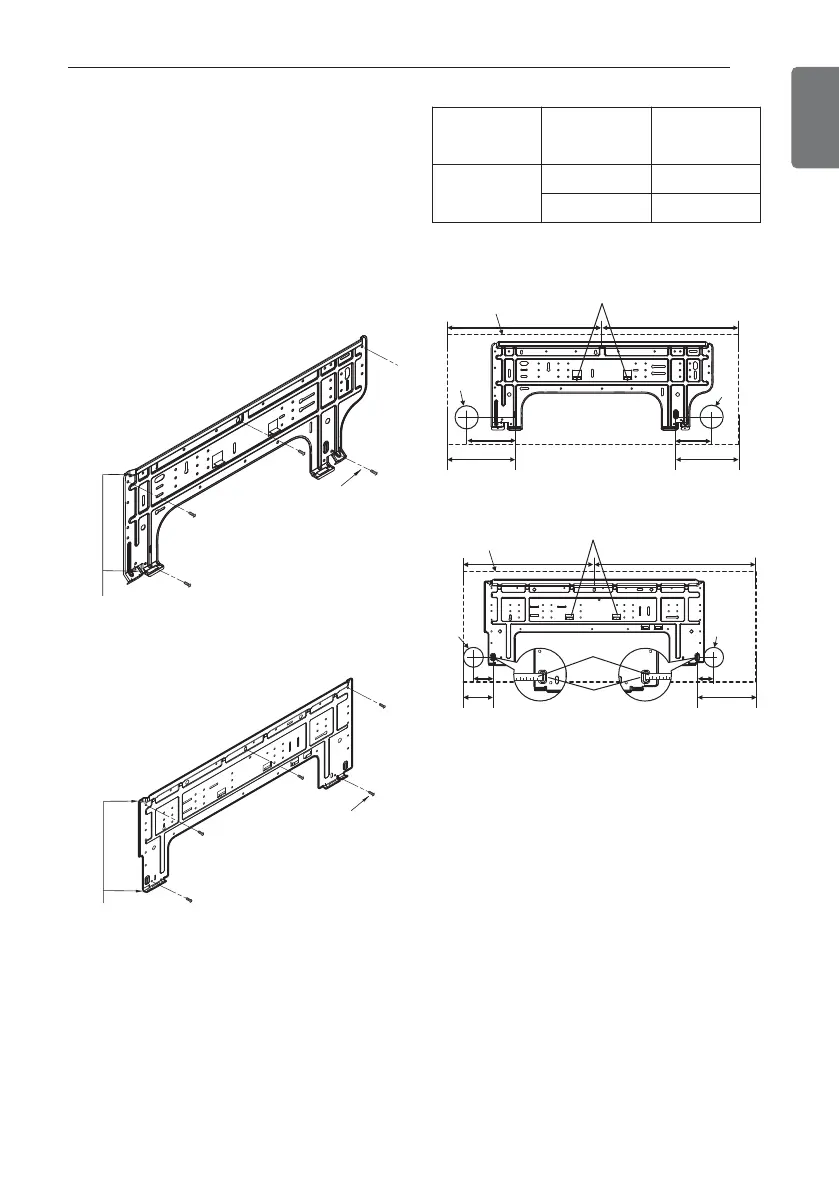

Fixing Installation Plate
The wall you select should be strong and solid
enough to prevent vibration
1 Mount the installation plate on the wall
with type "A" screws. If mounting the unit
on a concrete wall, use anchor bolts.
- Mount the installation plate horizontally
by aligning the centerline using a level.
<Type 1>
<Type 2>
2 Measure the wall and mark the centerline.
It is also important to use caution concern-
ing the location of the installation plate-
routing of the wiring to power outlets is
through the walls typically. Drilling the hole
through the wall for piping connections
must be done safely.
<Type 1>
<Type 2>
To Next Page
