LG MULTI V ARNU093M1A4 - Dimensions - Vertical Air Handling Unit NK Chassis

33
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL DATA

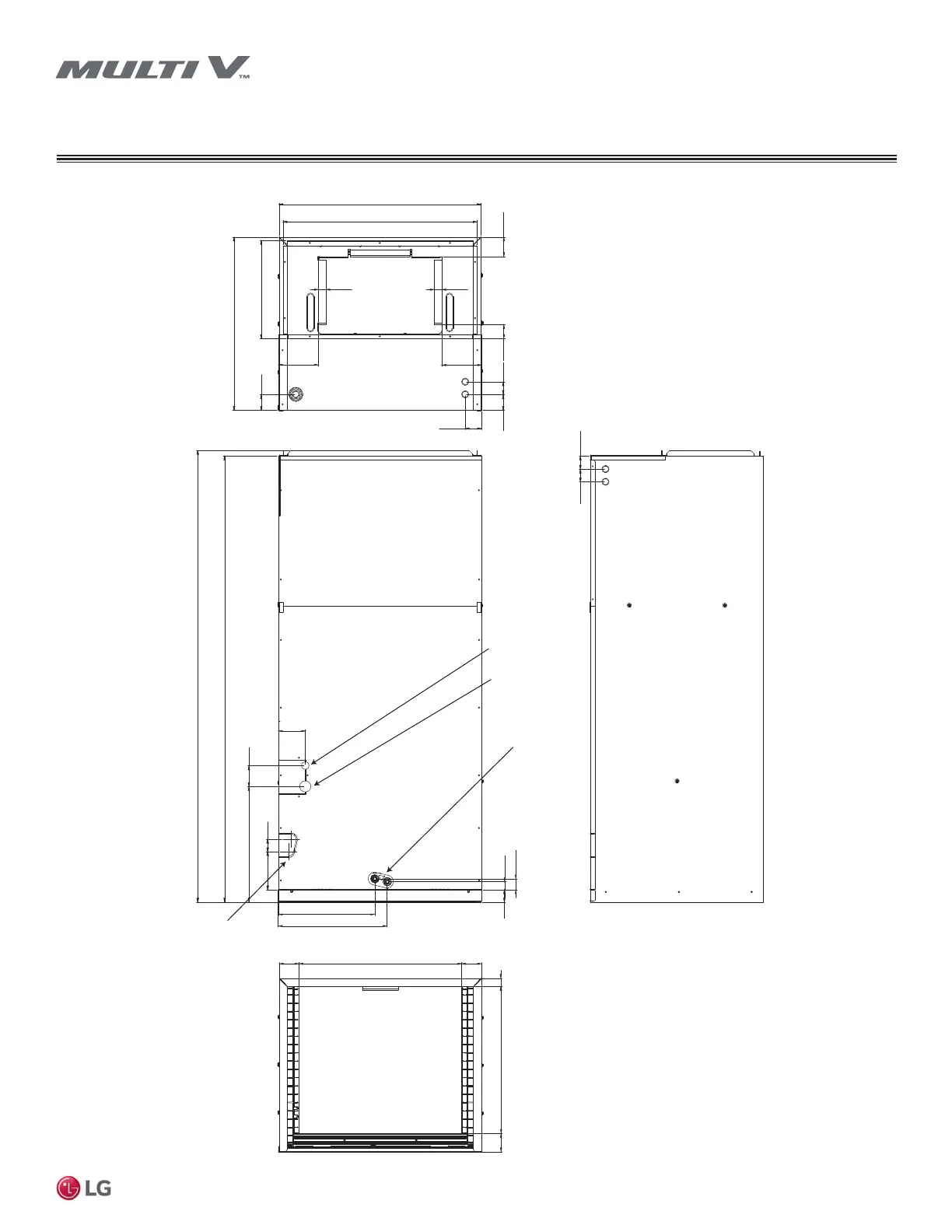

Dimensions – Vertical Air Handling Unit NK Chassis
Top View
Front View
Bottom View
Side View
24
21-1/4
55-13/16
55-3/16
25
14-1/4
1-1/2
13/16
4-7/8
15/16 15/16
2-7/16
4-7/8
3-5/16
11-15/16
13-7/16
15/16
1-5/16
2-7/16 2-7/1620-1/4
1
2-1/4 18-3/16
Unit: inch
1-15/16
2-1/16
2-3/16
12-1/8
1-5/81-9/16
2-9/16
4-11/16
1-9/16
Liquid pipe
Vapor pipe
Drain connection
for upflow application
Drain connection
for horizontal left
application
