73
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING
Convertible Mid-Static Ducted MA Chassis
Optional Connections
Figure 72 shows the control board for the MA chassis. Connect optional equipment to the control board as required for your system.

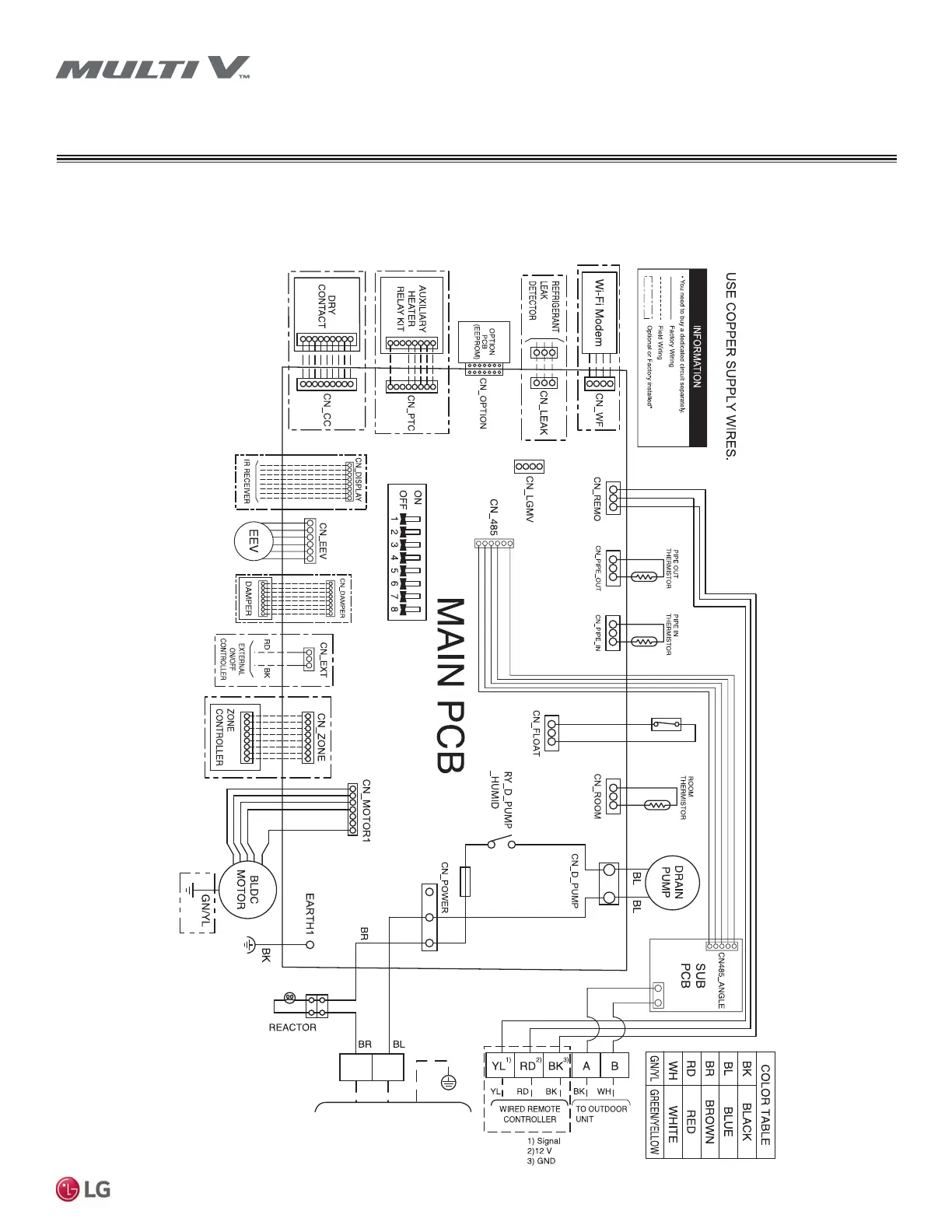

Figure 72: Convertible Mid-Static Ducted MA Chassis Wiring Diagram
MEZ65014864 Rev.01 020224
FUSE_H
250 V / T 5 A
POWER INPUT
L(L1) N(L2)
3/24
*Indicated function is optional or factory installed depending on the
applicable model.
*Optional parts are sold separately.
To Next Page
