WIRING
Mid-Static and High-Static Ducted M3 Chassis

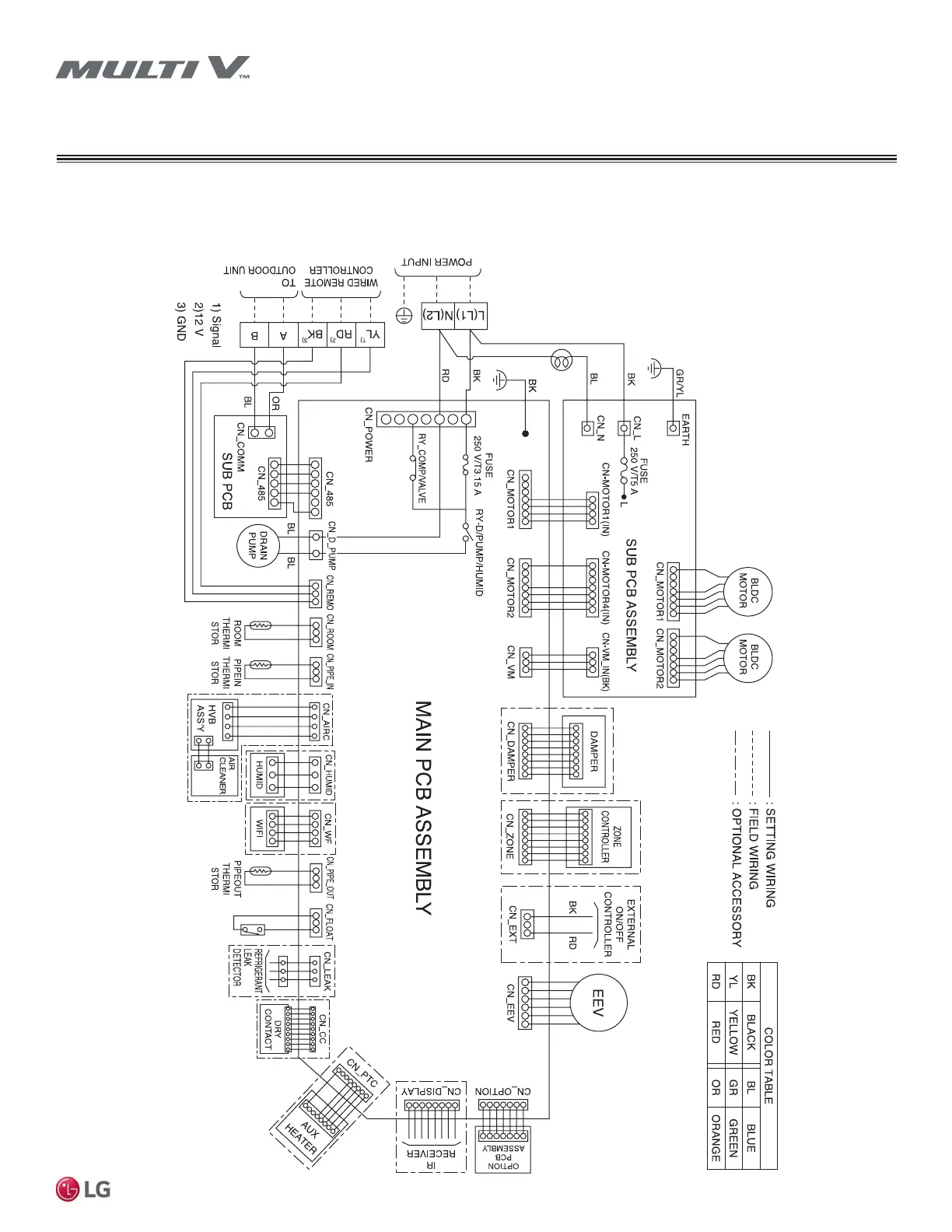

Figure 71: Mid-Static and High-Static Ducted M3 Chassis Wiring Diagram.
Optional Connections
Figure 71 shows the control board for the M3 chassis. Connect optional equipment to the control board as required for your system.
