GENERAL DATA
5HIULJHUDQW3LSLQJ'LDJUDPV
Heating
Cooling
Th1 = Thermistor, Return Air
Th2 = Thermistor, Pipe In
Th3 = Thermistor, Pipe Out
EEV = Electronic Expansion Valve
Heat Exchanger
Turbo
Fan
Th3
Th1
Th2
EEV
Ceiling Cassette lndoor Unit (4-Way)
Filter
Filter
Refrigerant Pipes
to Outdoor Unit
Flare Nut
Flare Nut
Liquid Line
Vapor
Line

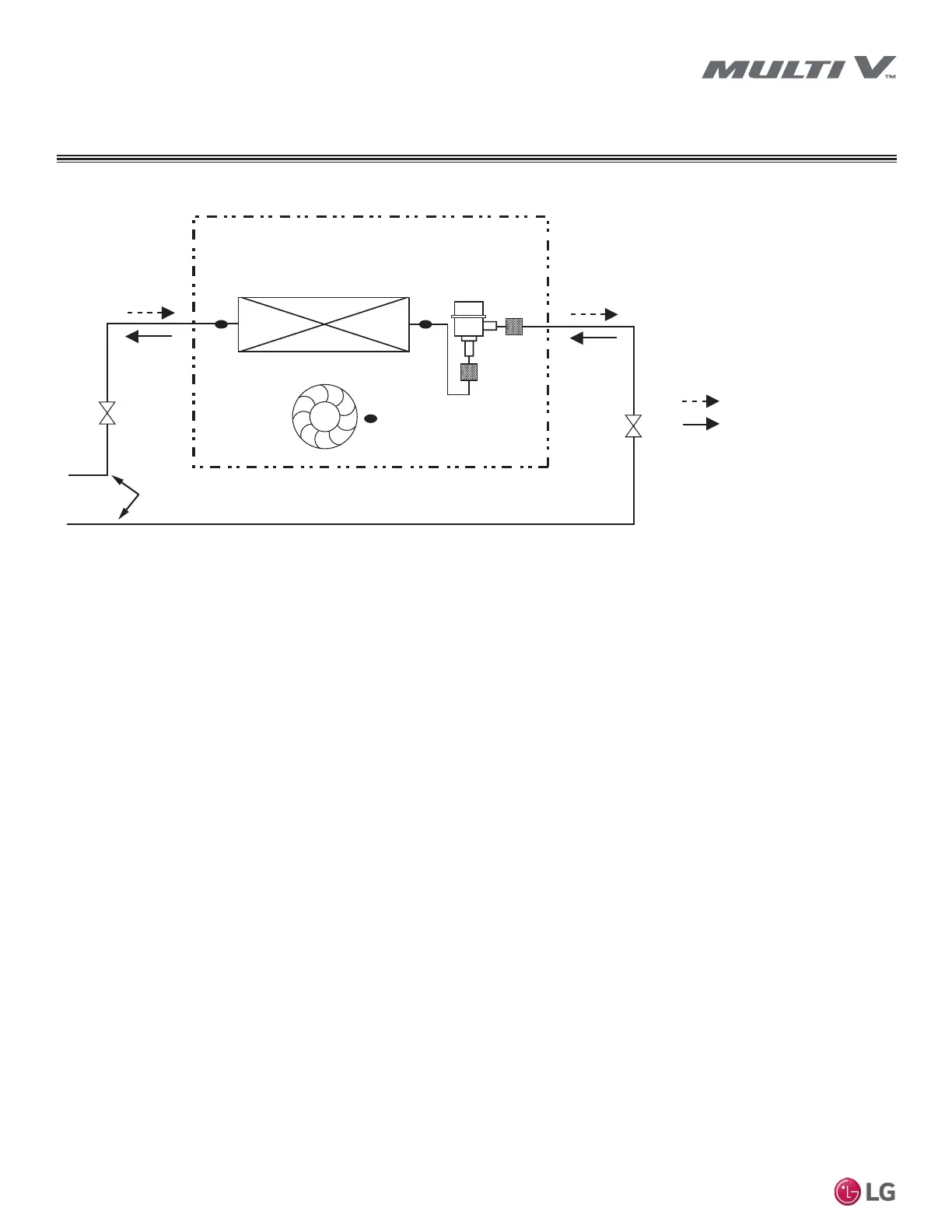

Figure 7: Refrigerant Piping Diagram TR, TQ, and TA Chassis
