LG MULTI V ARNU48GTMA4 Engineering Product Data Book

Indoor unit
20 _ Ceiling Concealed Duct(High Static)
Indoor Units
7. External Static Pressure (E.S.P) & Air Flow
Note:
1. The above table shows the correlation between the air rates and E.S.P.
2. The above table shows the available E.S.P. range.
3. If the E.S.P. of the installed indoor is less than the lowest value(as mention in the table), indoor components
can be failed.
ARNU76GB8A4, ARNU96GB8A4
ARNU76GB8A4, ARNU96GB8A4

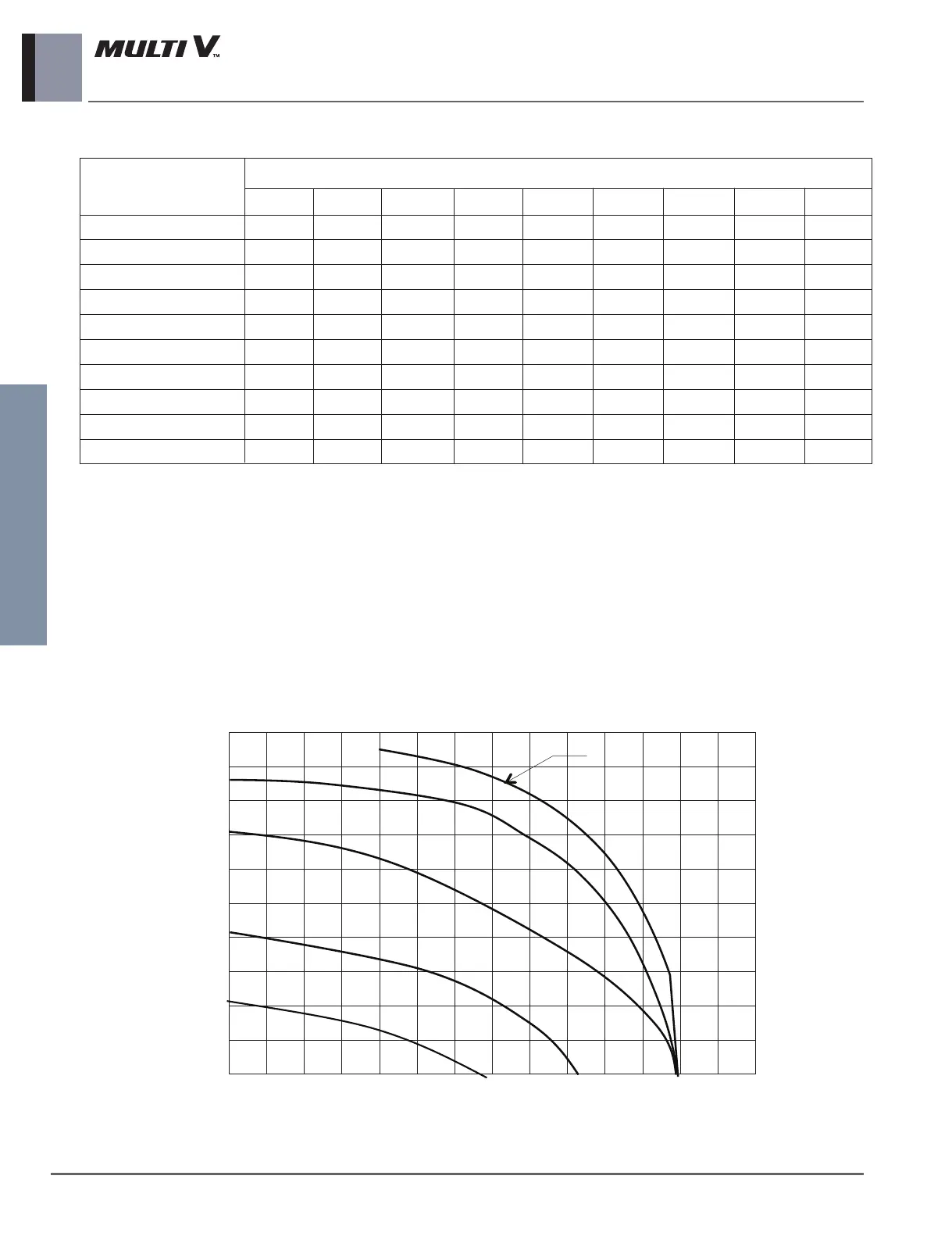

Fan Performance
(Unit: CMM)
Setting Value
60 40.5 - - - - - - - -
65 52.7 - - - - - - - -
70 63.7 47.1 - - - - - - -
75 71.1 56.9 44.7 - - - - - -
80 76.3 69.7 55.2 - - - - - -
85 83.3 78.6 67.4 55.9 - - - - -
91 89.7 87.1 78.9 67.6 54.2 - - - -
95 - - 86.1 77.0 66.4 50.6 30.0 - -
100 - - 88.3 84.9 75.9 69.5 60.8 43.1 -
105 - - 88.3 84.9 81.1 77.4 69.2 67.9 51.3
6(59) 9(88) 12(118) 15(147) 18(177) 20(196) 22(216) 23(226) 25(245)
Static Pressure(mmAq(Pa))
External Static Pressure(mmAq)
Air Flow(CMM)
Fan setting value curve
30
8
10
12
14
16
18
20
22
24
26
6
40 50 60 70 80 90 100
