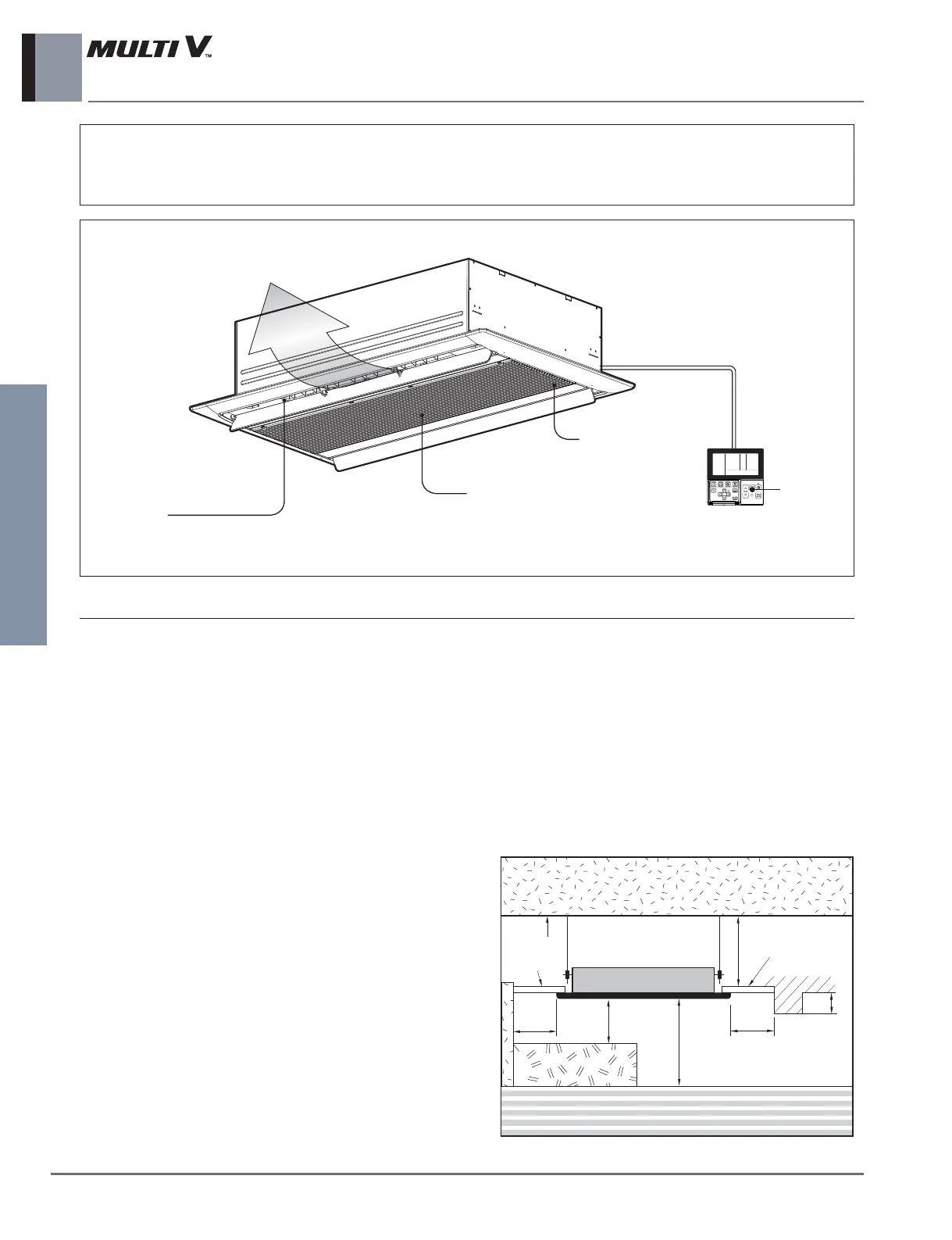

10. Installation
Indoor unit
16 _ Ceiling Cassette 2-way
Indoor Units
• Please read the instruction sheets completely before installing the product.
• When the power cord is damaged, replacement work shall be performed by authorized personnel only.
• Installation work must be performed in accordance with the national wiring standards by authorized personnel only.
Anti-bacteria filter
Air Outlet
Air Intake
Wired
Remote
Controller
Required Parts Required Tools
• Connecting cable
• Pipes: Gas side
Liquid side
• Hanging Bolt
(W 3/8 or M10 length 650mm)
• Insulated drain hose
• Additional Drain hose
• Level
• Screw driver
• Electric drill
• Hole core drill
• Flaring Tool set
• Torque Wrenches
• Hexagonal Wrench
• Gas-leak detector
• Thermometer
10.1 Selection of the best location
• There should not be any heat source or steam near the
unit.
• There should not be any obstacles to the air circula-
tion.
• A place where air circulation in the room will be good.
• A place where drainage can be easily obtained.
• A place where noise prevention is taken into consider-
ation.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall,
ceiling, or other obstacles.
• The indoor unit must have sufficient maintenance
space.
Unit:cm
Ceiling
Ceiling Board
Ceiling Board
20 or more
Above 200
300 or less
100
or more
50 or
more
50 or
more
30 or less
Floor
