LG Multi V CRUN Series Installation Manual

14 Outdoor Unit

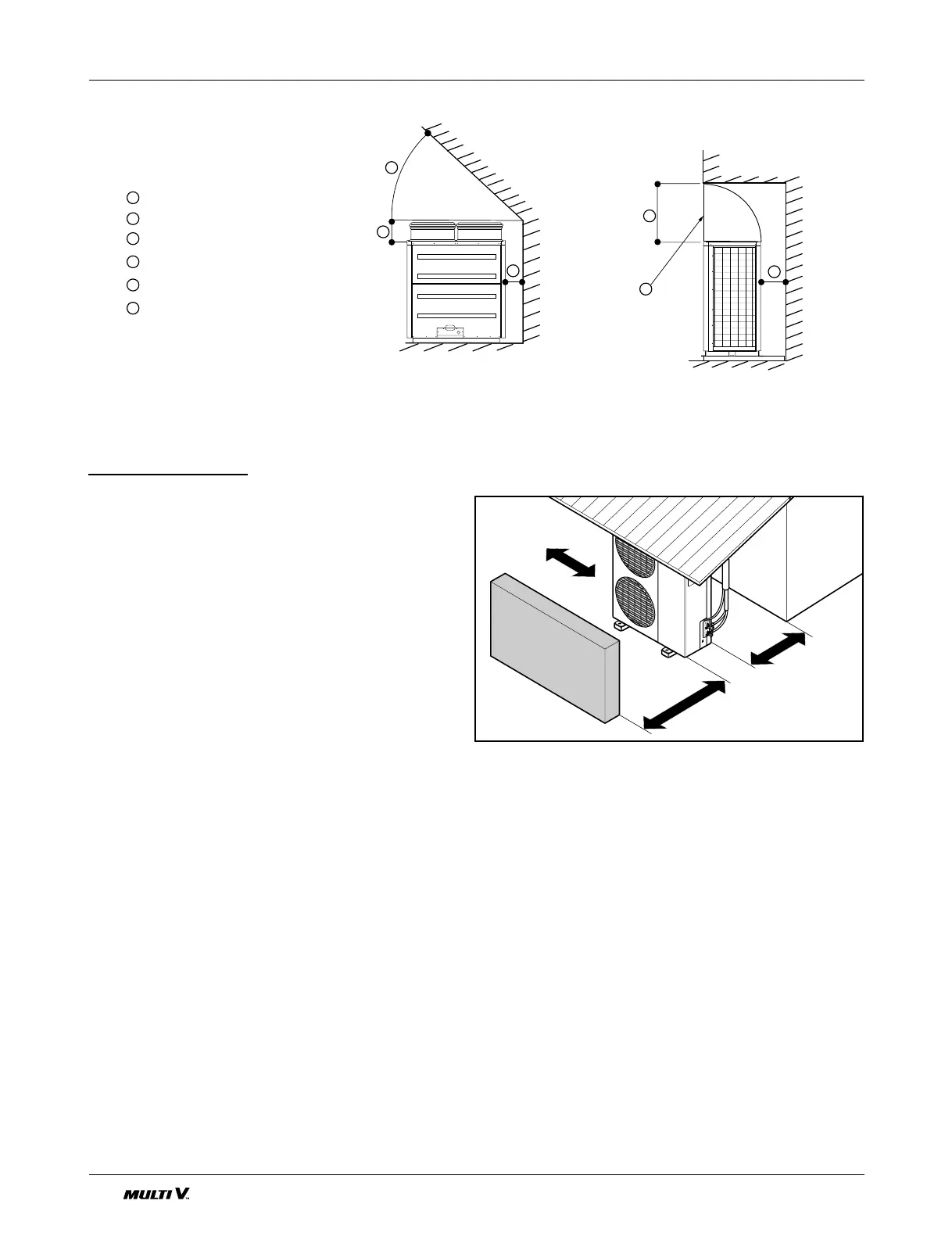

Installation Space
For CR
UN458S0
• If an awning is built over the unit to prevent direct
sunlight or rain exposure, be careful that heat radi-
ation from the condenser is not restricted.
• There should not be any animals or plants which
could be affected by hot air discharged.
• Ensure the spaces indicated by arrows from the
wall, ceiling, fence or other obstacles.
More than
30cm
More than
30cm
More than
70cm
Sunroof
Fence or
obstacles
When there is an obstruction above the unit
45° or more
300 mm or more
250 mm or more
1000 mm or more
Air outlet guide (Procured at the site)
250 mm or more
A
A
B
C
E
D
F
B
C
D
E
F
