Installation Space
ENGLISH
Installation Space

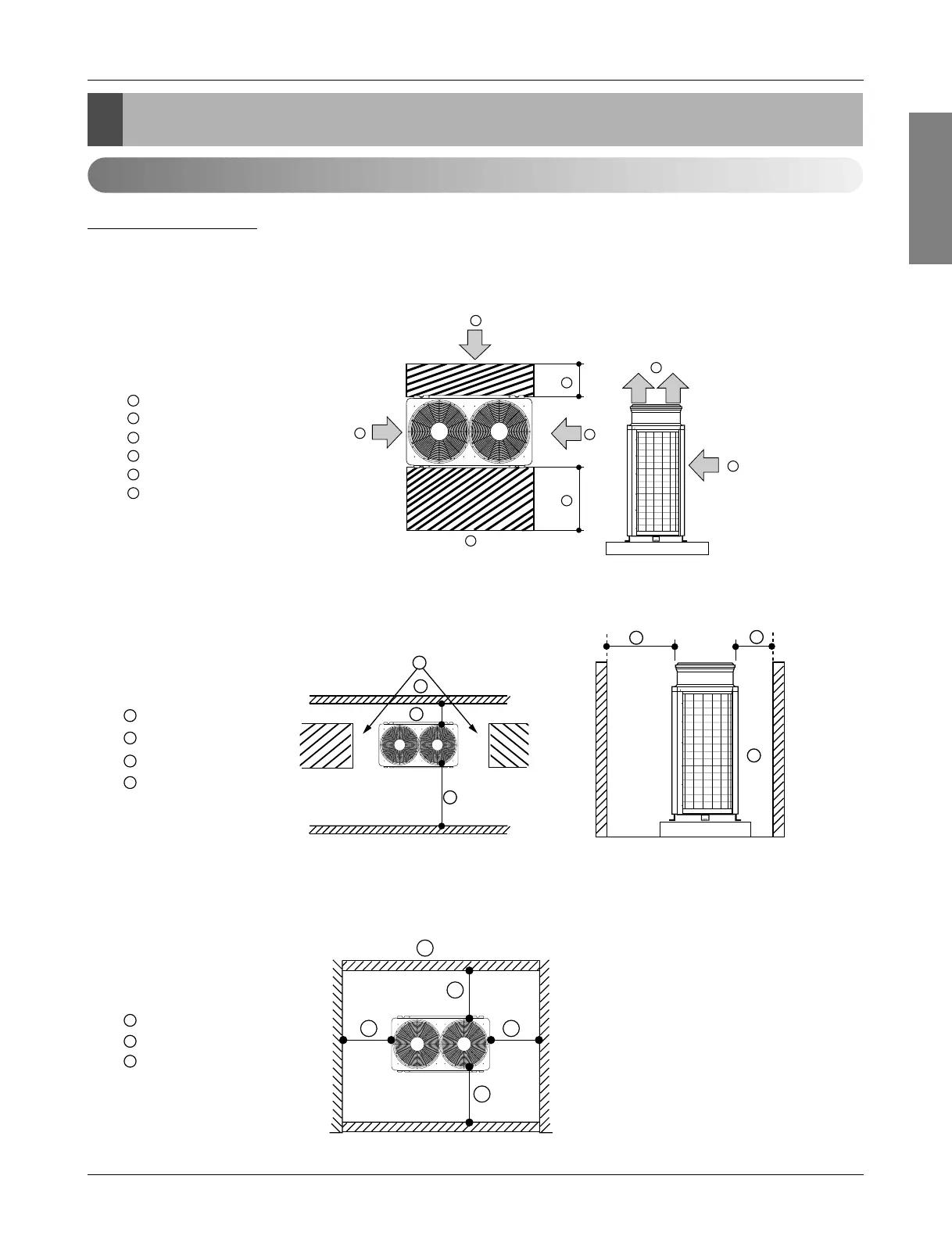

Individual Installation
For CRUN1008T0
Basic space required
A space of at least 250 mm is necessary at the back for inlet air. Taking servicing, etc. from the rear into
account, a space of about 500 mm should be provided, the same as at the front.
When inlet air enters from right and left sides of unit
When unit is surrounded by walls
<Side view>
D
C
A
A
B
C
D
A
C
B
B
500 mm or more
250 mm or more
Back(HEX side)
150 mm from the wall
500 mm or more
250 mm or more
Back(HEX side)
A
B
C
C
A
B
B B
AB
C
H
H
A
F
B
D
E
E
F
C
250 mm or more
500 mm or more
Front panel
Top discharge (open in principle)
Side inlet (open in principle)
Rear inlet (open in principle)
A
B
C
D
E
F
<Top View>
<Side View>
