Troubleshooting Guide
- 115 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
60*
Master 601
Slave1 602
Slave2 603
Slave3 604
Comp PCB EEP-
ROM error
Error No. Error Type Error Point Main Reasons
EEPROM Access error
and Check SUM error
1. EEPROM contact defect/wrong insertion
2. Different EEPROM Version
3. ODU Comp PCB assembly damage
n Error Diagnosis and Countermeasure Flow Chart
Is EEPROM insertion normal?
No
Yes
Recheck power and installation condition
1.Check EEPROM insert direction/connection condition
2.Check EEPROM Check SUM
’ Replace if abnormality found
Is Comp PCB assembly normal?
No
Yes
Replace Comp PCB assembly

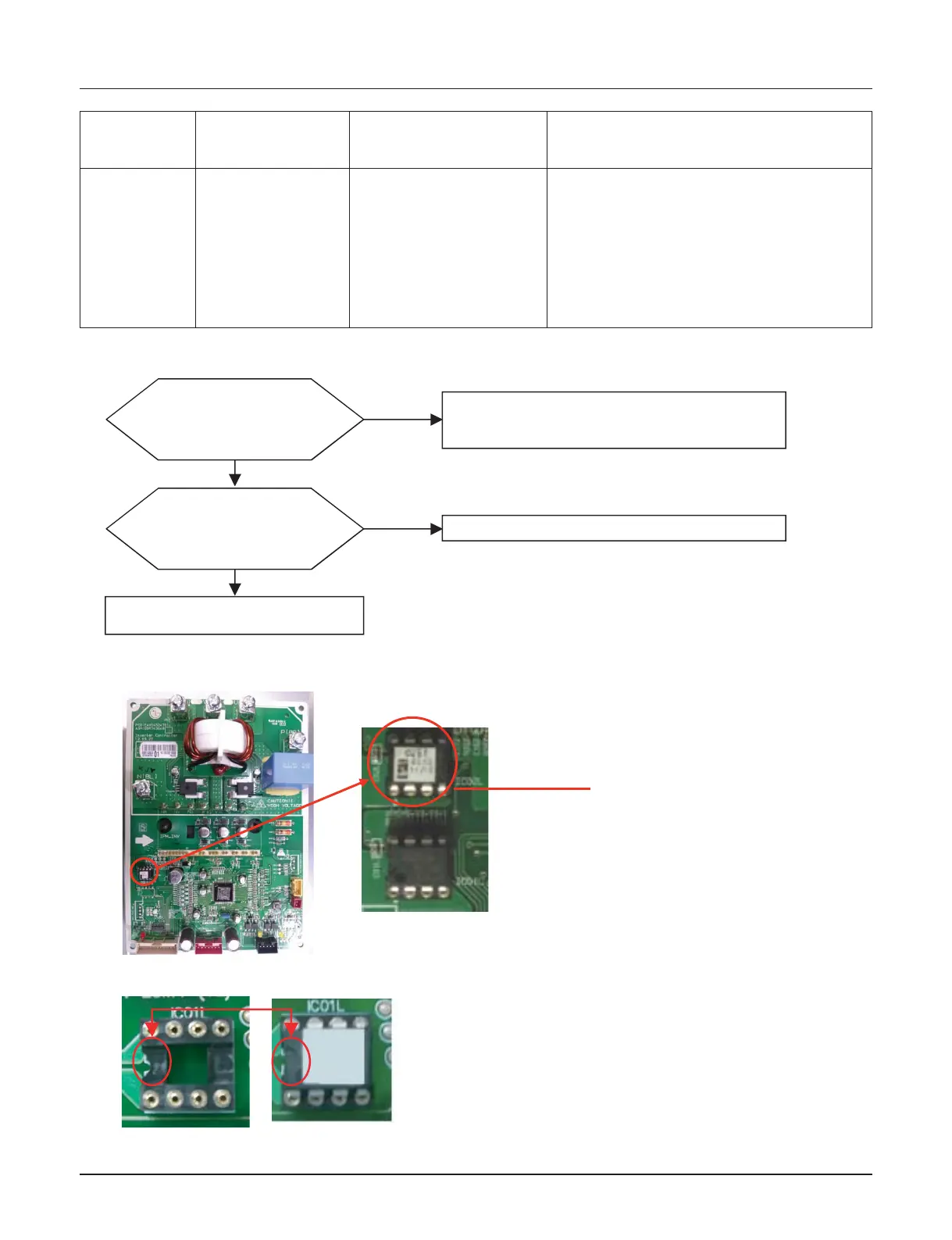

* Inverter EEPROM inserting point
* Right inserting direction of inverter EEPROM
❊ Note : Replace after power off
