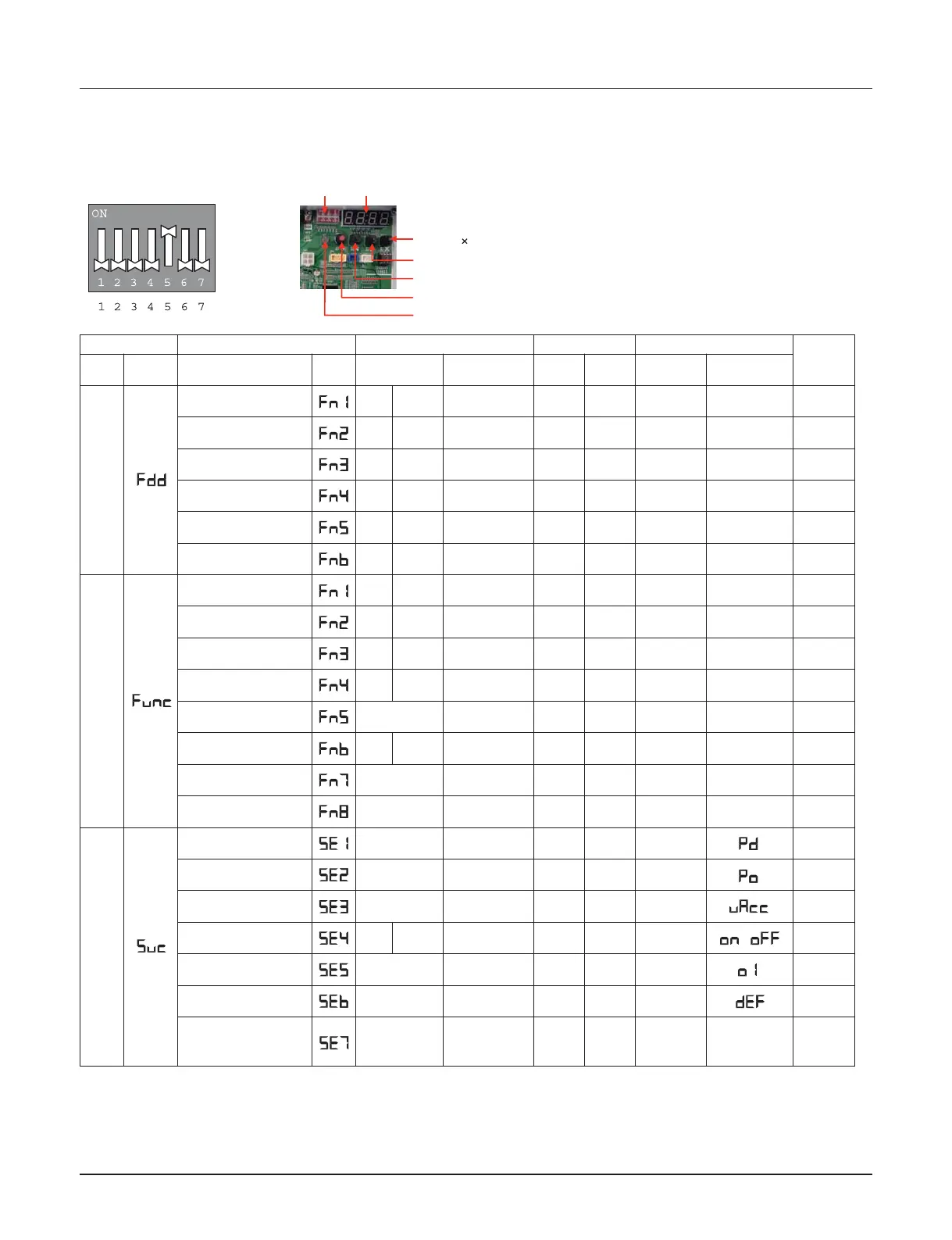

n Setting the function
Select the mode/function/option/value using ʻ
ʼ, ʻ
ʼ Button and confirm that using the ʻ
ʼ button after dip
switch No.5 is turned on.
DIP-SW01 7 - Segment
SW01C ( : confirm)
SW02C ( : backward)
SW03C ( : forward)
SW04C (
: cancel)
SW01D (reset)
MODE FUNCTION OPTION VALUE ACTION
remarks
content
Display1
content
Display2
content Display3 content
Display4
implement Display5
FDD
Refrigerant auto charg-
ing(cooling)
-
-
- - - Operate
show the
process
-
Refrigerant auto charg-
ing(heating)
-
-
- - - Operate
show the
process
-
Refrigerant amount
auto judgment(cooling)
-
-
- - - Operate
show the
process
-
Refrigerant amount
auto judgment(heating)
-
-
- - - Operate
show the
process
-
ITR(Cooling)
-
-
- - - Operate
show the
process
-
ITR(Heating)
-
-
- - - Operate
show the
process
-
Install
ation
Cool & Heat Selector
oFF
op1~op2
selected the
option
- -
change the
set value
blank
save in
EEPROM
Static pressure com-
pensation
oFF
op1~op3
selected the
option
- -
change the
set value
blank
save in
EEPROM
Night low noise
oFF
op1~op12
selected the
option
- -
change the
set value
blank
save in
EEPROM
Overall defrost
on oFF
selected the
option
- -
change the
set value
blank
save in
EEPROM
ODU address
- - 0~255
set the
value
change the
set value
blank
save in
EEPROM
Snow removal & rapid
defrost
oFF
op1~op3
selected the
option
- -
change the
set value
blank
save in
EEPROM
IDU capacity adjusting
op1~op2
selected the
option
- -
change the
set value
blank
save in
EEPROM
Target pressure adjust-
ing
op1~op4
selected the
option
- -
change the
set value
blank
save in
EEPROM
SVC
Pump Down
- - - -
start opera-
tion
-
Pump Out
- - - -
start opera-
tion
-
Vacuum mode
- - - -
start opera-
tion
-
Backup
unit
inv1~inv2
selected the
option
- -
start opera-
tion
save in
EEPROM
Forced oil return
- - - -
start opera-
tion
-
Forced defrost
- - - -
start opera-
tion
-
Cycle data view op1~op7 - - -
Show in
segment
Show the each
numerical value
in process
-
* Functions save in EEPROM will be kept continuously, though the system power was reset.
