• EEV Coil and body(Outdoor unit)

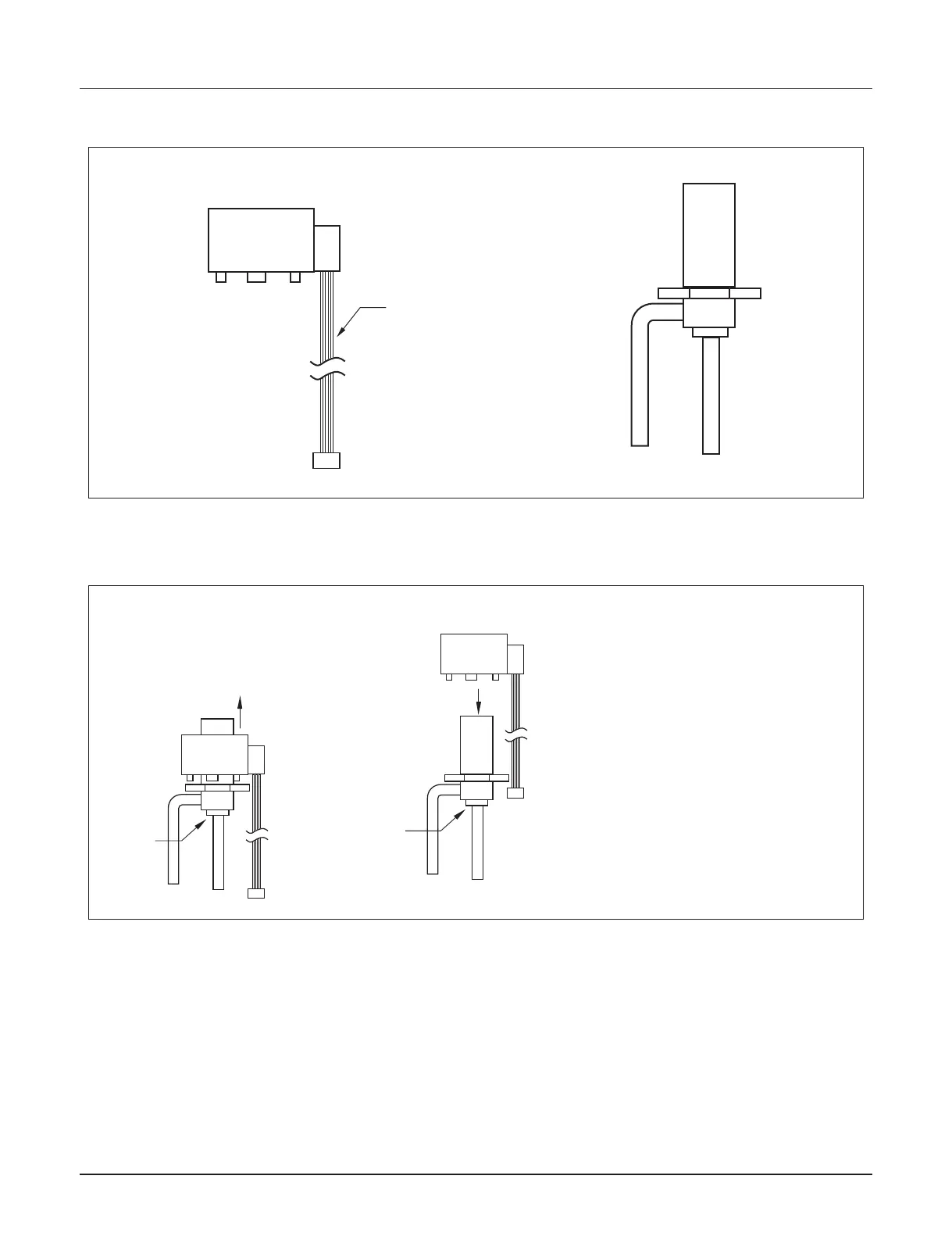

• Remove and assemble the coil
Lead wire
Coil
Body
Body
Body
• Grip the A part tightly, and pull
up coil part upward.
- When the coil part is removed or
assembled, be careful not to bend
the pipe of the body.
AssembleRemove
Checking Method for Key Components
