9
ENGLISH

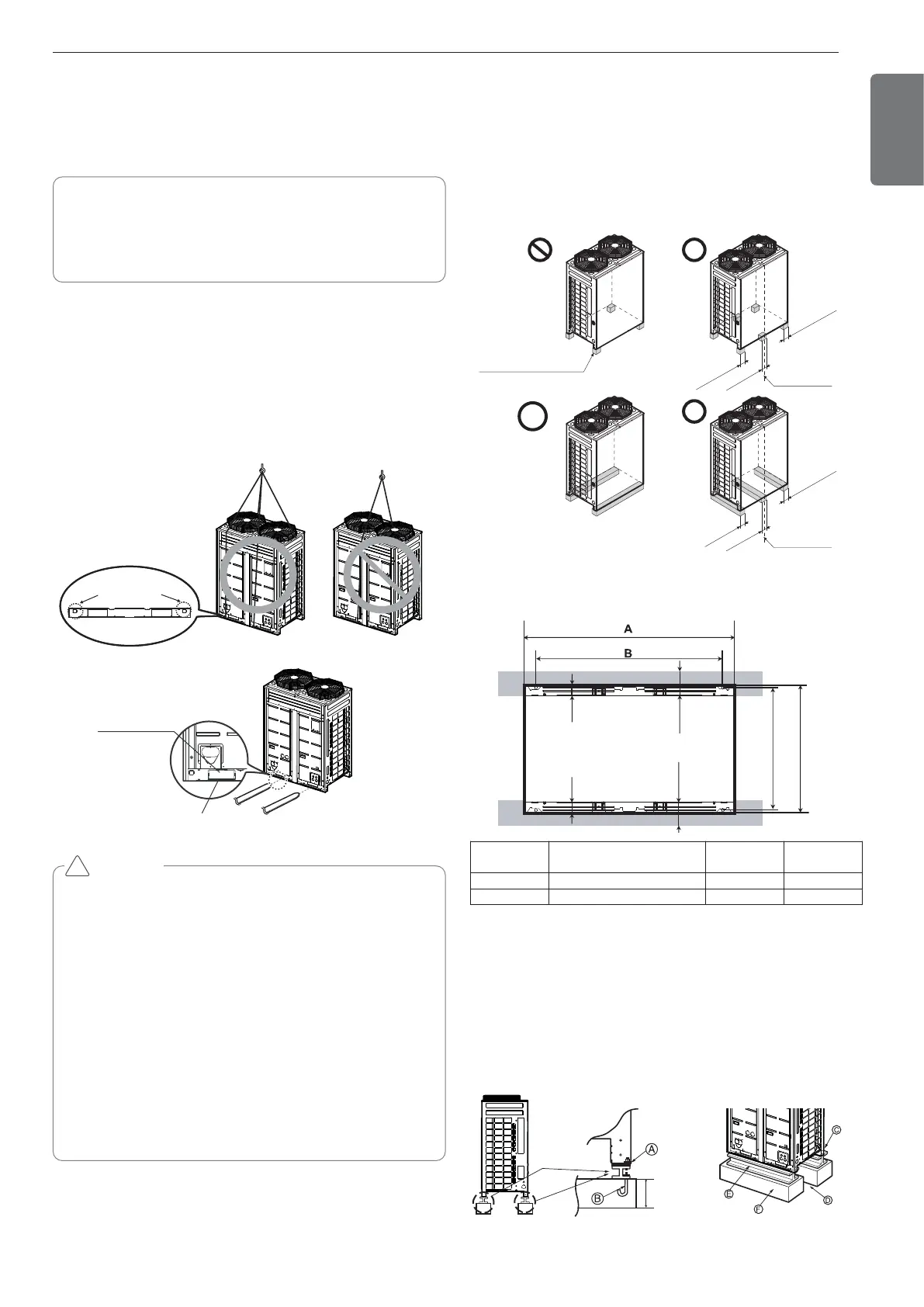

• Install at places where it can endure the weight and vibration/noise
of the outdoor unit.
• The outdoor unit supports at the bottom shall have width of at least
100mm under the Unit’s legs before being fixed.
• The outdoor unit supports should have minimum height of 200mm.
• Anchor bolts must be inserted at least 75mm.
Chassis Outdoor Unit Capacity A(mm) B(mm)
UX2 8~12 HP 920 792
UX3 14~20 HP 1240 1102
• Fix the unit tightly with bolts as shown below so that unit will not fall
down due to earthquake or gust.
• Use the H-beam support as a base support
• Noise and vibration may occur from the floor or wall since vibration is
transferred through the installation part depending on installation sta-
tus. Thus, use anti-vibration materials (cushion pad) fully (The base
pad shall be more than 200mm).
• Install the outdoor unit at the higher installation console by 50cm
than the average snowfall (annual average snowfall) if it is installed at
the area with much snowfall.
• Where snow accumulated on the upper part of the Outdoor Unit by
more than 10cm, always remove snow for operation.
- The height of H frame must be more than 2 times the snowfall and
its width shall not exceed the width of the product. (If width of the
frame is wider than that of the product, snow may accumulate)
- Don't install the suction hole and discharge hole of the Outdoor
Unit facing the seasonal wind.
CAUTION
Be very careful while carrying the product.
•
Do not have only one person carry product if it is more than 20 kg.
• PP bands are used to pack some products. Do not use them as
a mean for transportation because they are dangerous.
• Do not touch heat exchanger fins with your bare hands. Other-
wise you may get a cut in your hands.
• Tear plastic packaging bag and scrap it so that children cannot
play with it. Otherwise plastic packaging bag may suffocate chil-
dren to death.
• When carrying in Outdoor Unit, be sure to support it at four
points. Carrying in and lifting with 3-point
support may make Outdoor Unit unstable, resulting in a fall.
• Use 2 belts of at least 8 m long.
• Place extra cloth or boards in the locations where the casing
comes in contact with the sling to prevent damage.
•
Hoist the unit making sure it is being lifted at its center of gravity.
• When carrying the suspended, unit pass the ropes under the unit and
use the two suspension points each at the front and rear.
• Always lift the unit with ropes attached at four points so that impact
is not applied to the unit.
• Attach the ropes to the unit at an angle of 40° or less.
