CUT SHEET
Due to our policy of continuous product innovation, some specifications may change without notification.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
W
L7
Y
D
L9
8L
X
L2
L6
L1
L10
L3
H
Plan View
Front View
End View
End View
Z
See Pipe & Electrical Connections Cut Sheet
L4
L5
Front View
CUT-SHEET
Dimensional Data and Weights
W (Width)
37-13/32
H (Height)
54-1/4
D (Depth)
15-11/32
L1
1-1/4
L2
24-23/32
L3
15/16
L4
1-7/16
L5
1-9/16
L6
2-7/16
L7
1-9/16
L8
1-5/16
L9
6-9/16
L10
13-1/32
Center of Gravity
X
10-3/16
Y
6-11/16
Z
21-15/32
Table 34: Unit Weight Information (lbs)
Model Operating Shipping
Mounting Point Weights
1234
ARUN036GS2 234 258 87 33 83 31
ARUN047GS2 234 258 87 33 83 31
ARUN053GS2 234 258 87 33 83 31
Image not to scale. All dimensions ± 0.25 inches.
Consult NEC for required electrical clearances.
Figure 63 depicts the minimum airfl ow clearance
data provided is for a single unit installation placed
in an open area without overhangs or near other
heat rejecting equipment. Refer to "Placement
Considerations" on page 57 or "Clearance Re-
quirements" on page 59 for minimum require-
ments for complex installation scenarios.
Power wiring cable size must comply with the ap-
plicable local and national code.
Must follow installation instructions in the appli-
cable LG installation manual.
Figure 63: Maintenance and Air Flow Clearances

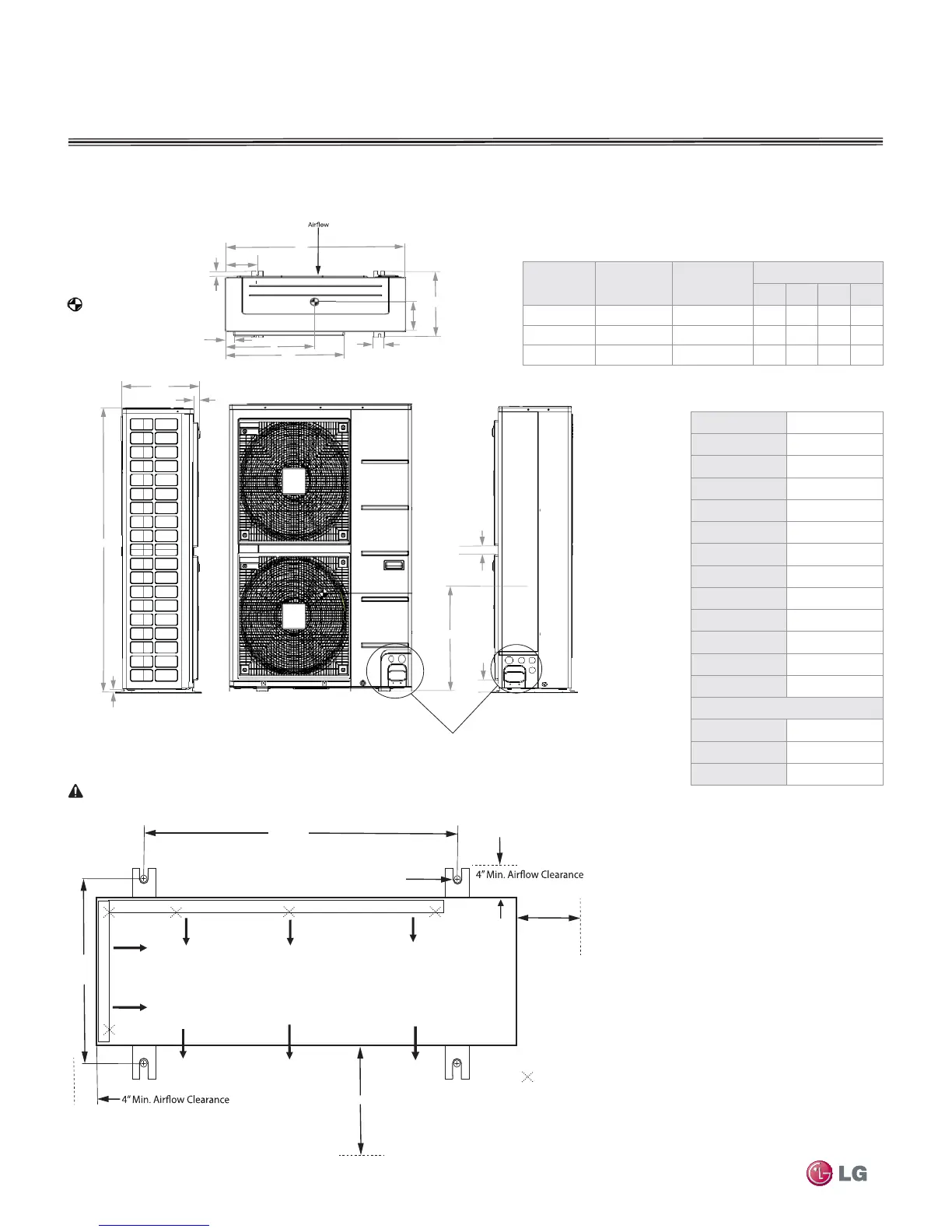

Figure 62: Unit Dimensions
Note:
The arrows show the direction of airflow.
24-3/8
Bolt Diameter - 1/2” (typical of 4)
12” Min.
Maintenance
Clearance
Compressor and
control component
access
24” Min. Maintenance Clearance
14-3/8
Base pan drain holes (Typical of 5)
= Center of Gravity
L = Length Dimension
Legend:
To Next Page
