CONTROLLER INSTALLATION
Installing the Controller
Follow this procedure to install the controller.
Note:
• If replacing an existing MultiSITE CRC1 Series Remote Controller, label the wires
before removal.
• Electronic controls are static sensitive devices. Discharge yourself properly before
manipulating and installing the Remote Controller.
• A short circuit or wrong wiring may permanently damage the Remote Controller or
the equipment.
• This Remote Controller must be installed to provide a separation distance of at
least 8 inches from all persons and must not be collocated or operating in conjunc-
tion with any other antenna or transmitter.
• If your installation includes wireless accessories, you can install the optional
ZigBee Pro wireless module when the controller case is open. Refer to page 16
for Zigbee Pro wireless module installation instructions.

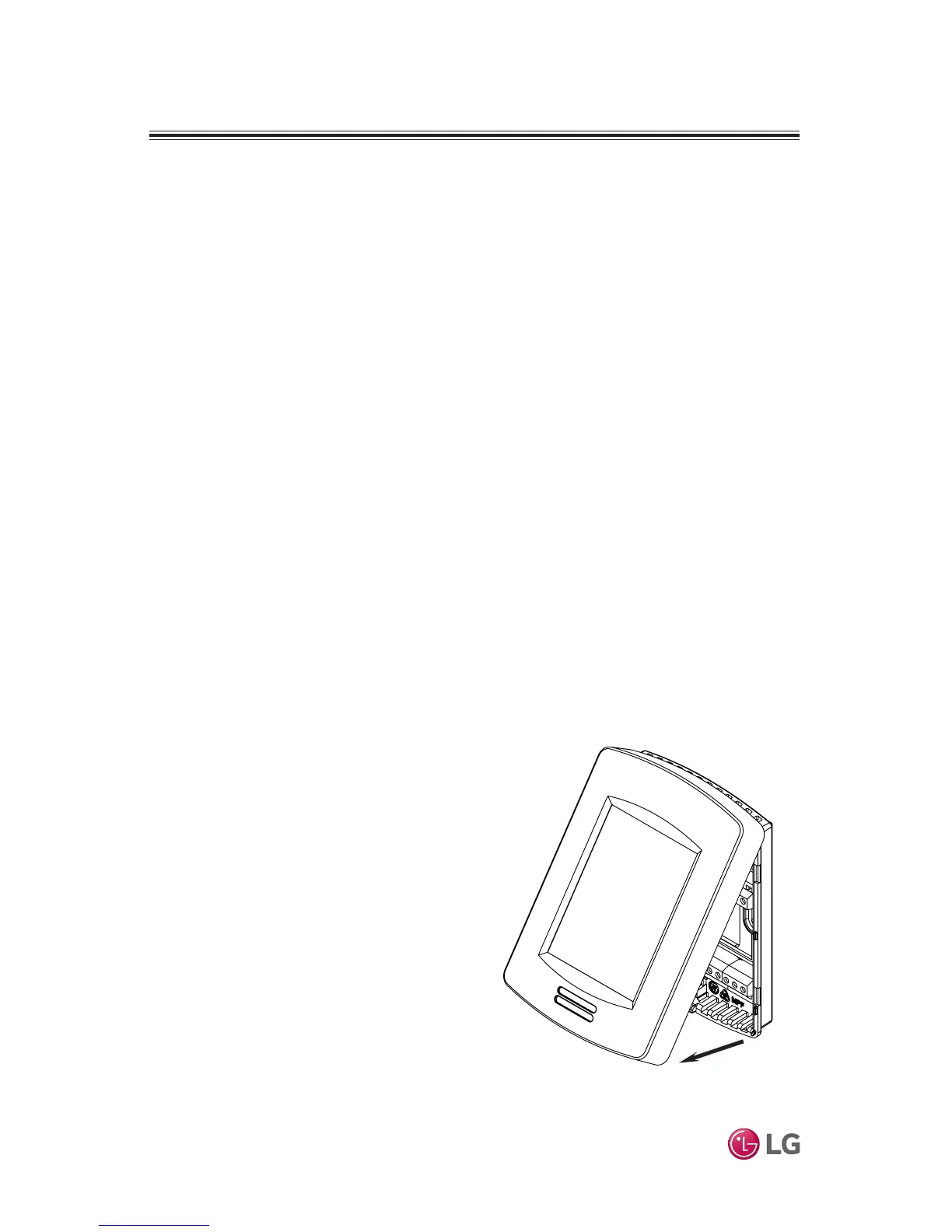

Figure 2: Open Cover
1. Remove security screw (if any) on
bottom of Remote Controller cover
(Figure 2).
2. Read FCC ID and IC label installed
in cover before installing any wire-
less product.
3. Ensure correct side of base faces
up.
4. Pull cables 6 inches out from wall.
5. Align base and mark location of two
mounting holes on wall (Figure 3).
6. Install anchors in wall.
7. Insert wires through center opening
of base.
8. Insert screws in mounting holes on
each side of base.
9. Strip each wire 1/4 inch from end.
