16
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ZigBee Pro Wireless Module
Follow this procedure to install the optional
ZigBee Pro wireless module (model ZVR-
CZPWC1. This wireless module is required
for the controller to communicate with the
optional wireless sensors.
ACCESSORIES INSTALLATION

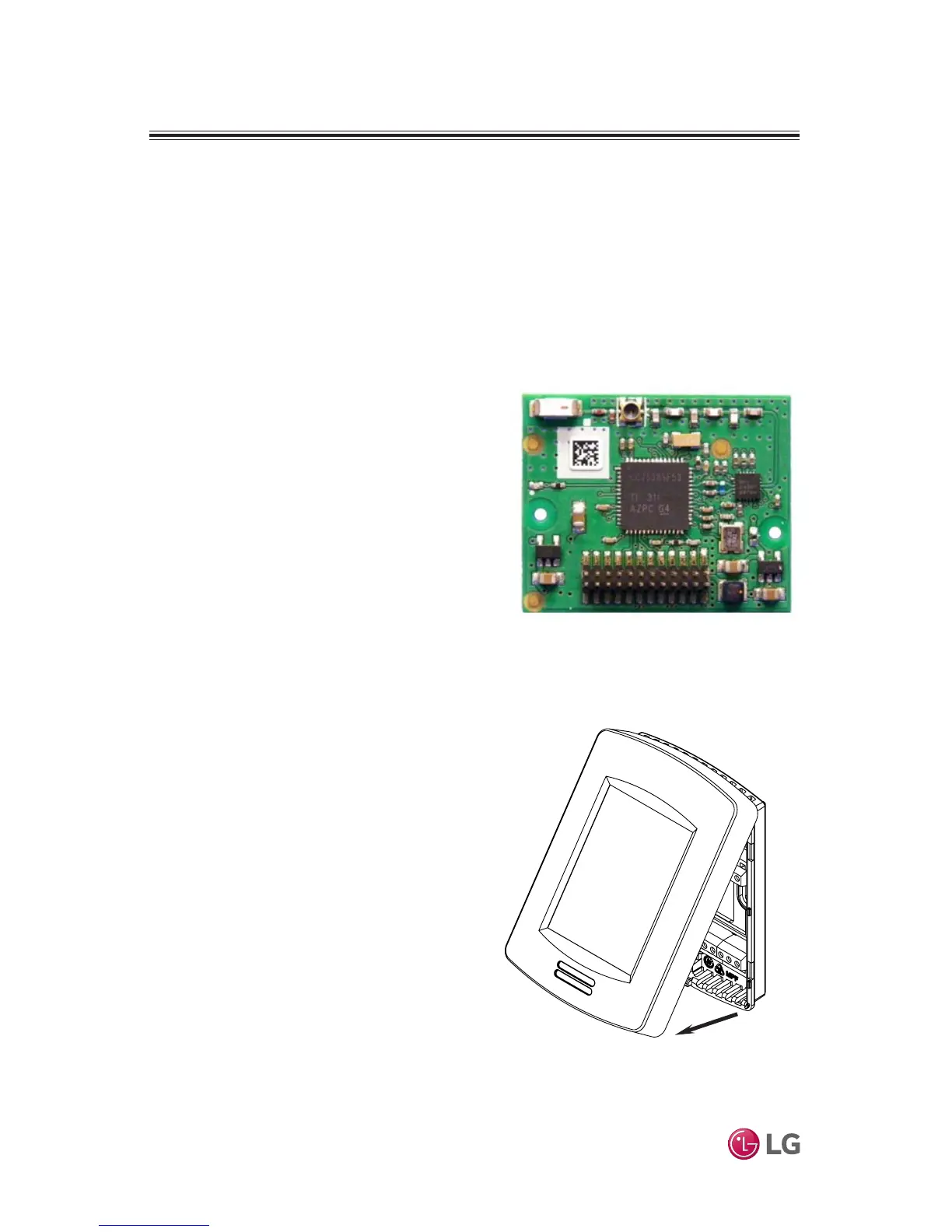

Figure 7: ZigBee Pro Wireless Module
1. Remove security screw (if any) on
bottom of Remote Controller cover.
2. Open unit by pulling on bottom side
of Remote Controller (Figure 8).
3. Carefully remove Remote Control-
ler’s Motherboard from casing and
turn over.
4. Locate gap in upper-right corner of
Remote Controllers motherboard
and locate holes to insert ZigBee Pro
module to motherboard (Figure 9).
5. Align connector pins on ZigBee Pro
module with holes on motherboard.
Ensure alignment of pins is correct
so as to not damage ZigBee Pro
module.
Figure 8: Open Cover
*ZigBee is a registered trademark of the ZigBee Alliance.
