CONTROLLER INSTALLATION
Installing the Controller – continued
10. Insert each wire in terminal
block according to wiring dia-
gram (Figure 4). Table 1 lists
the function of all terminal
connections.
11. Carefully push excess
wiring back into hole.
Figure 3: Install Base
BACnet+ BACnet- BACnet Common Not used Not used Not used
Signal
12VDC
Common
4 5 6
13 14 15
Typical Indoor Unit

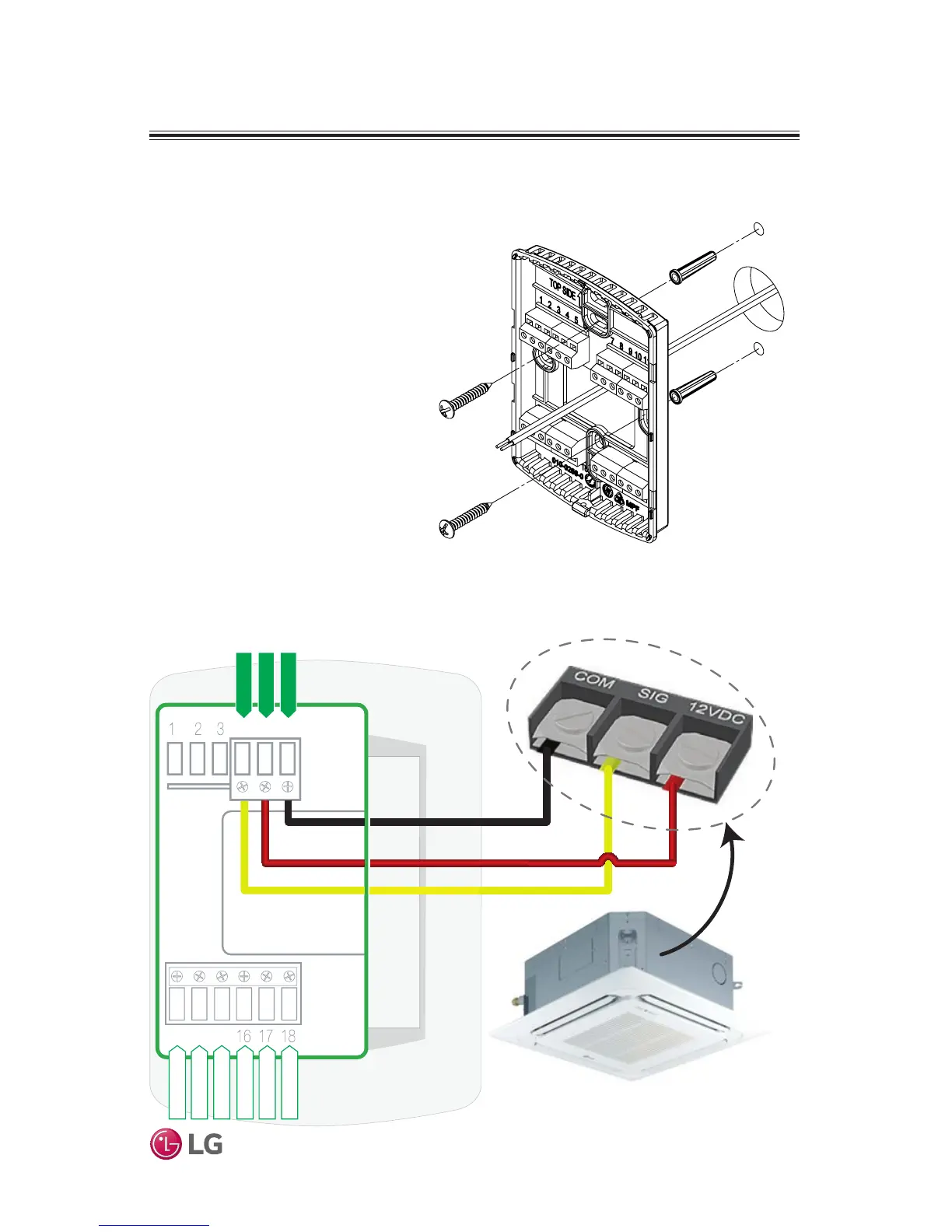

Figure 4: Controller Wiring
