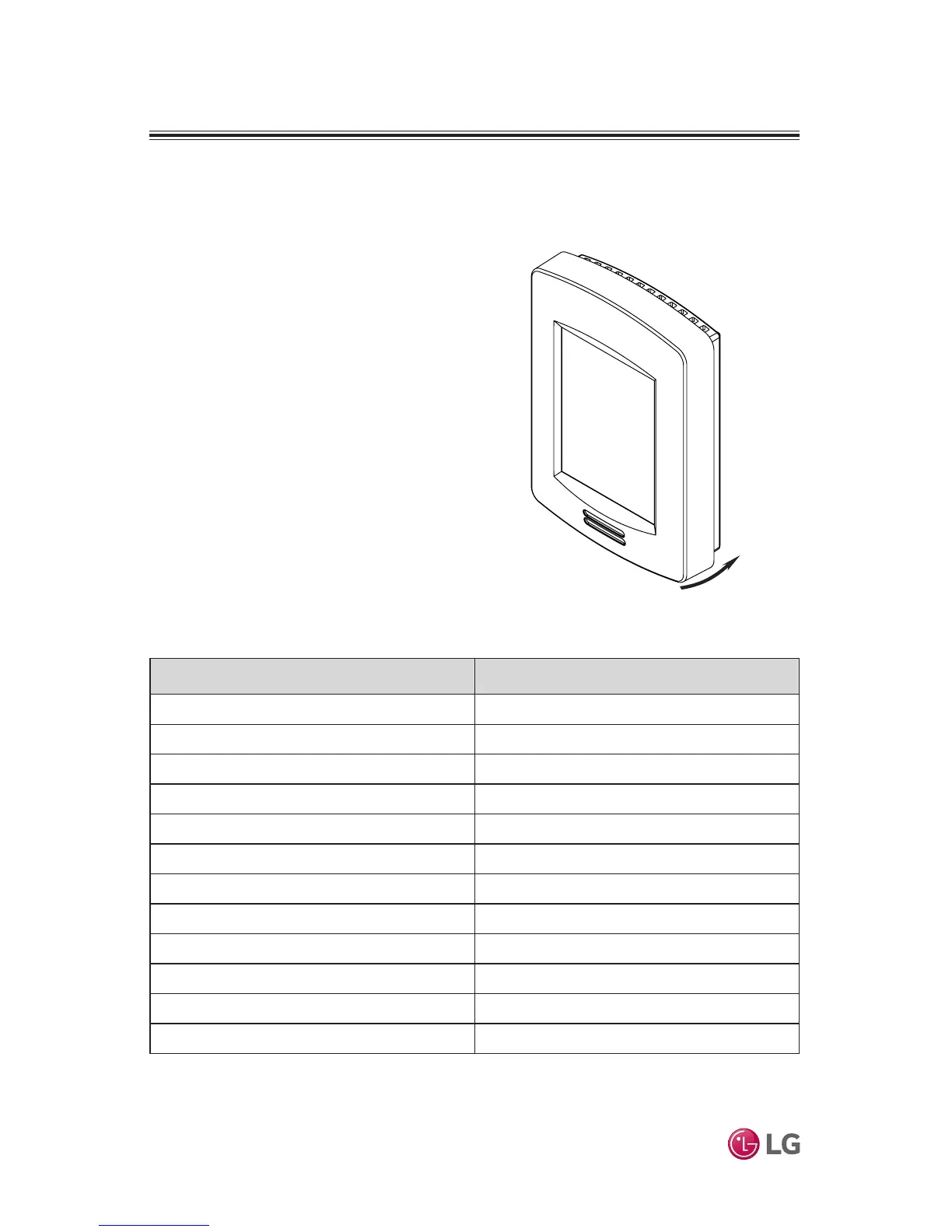

Figure 5: Reinstall Cover
CONTROLLER INSTALLATION
Installing the Controller – continued
12. Gently align cover to top of base and
snap in place from bottom (Figure 5) .
13. Install security screw.
Terminal Function
Terminal 1 Not used
Terminal 2 Not used
Terminal 3 Not used
Terminal 4 Signal Wire
Terminal 5 12VDC
Terminal 6 Common
Terminal 13 BACnet +
Terminal 14 BACnet -
Terminal 15 BACnet MS/TP Common
Terminal 16 Not used
Terminal 17 Not used
Terminal 18 Not used
Table 1: Controller Terminal Functions

LG MultiSITE CRC1 Series Specifications

General

Brand	LG
Model	MultiSITE CRC1 Series
Category	Remote Control
Language	English
