ACCESSORIES INSTALLATION
Installation Sequence
Complete the following steps (in this order)
to correctly install the ceiling mounted
motion sensor:
• Install battery.
• Pair sensor with MultiSITE Controller.
• Remove plastic pull tab.
• Verify sensing motion.
• Install sensor to ceiling surface.
Install Battery
1. Use a flathead screwdriver to carefully
pry cover away from motion sensor
(Figure 20).
2. Install one CR2 battery in Sensor
Housing (Figure 21). Ensure bat-
tery polarity is correct When bat-
tery is first installed, the sensor
automatically goes into pairing
mode. Refer to “ZigBee Setup”
on page 28.
3. Replace cover on motion sensor.
4. Proceed to Verify Sensing
Motion.
Verify Sensing Motion
1. Wait three minutes for sensor to warm
up. Sensor requires a three minute
warm-up before it reporting any motion
detection.
2. Wave hand or object in front of sensor.
3. Verify LED flashes red on sensor
(Figure 15). LED flashing red indicates
motion detected.
4. Proceed to Install Wall Mounted Motion
Sensor.

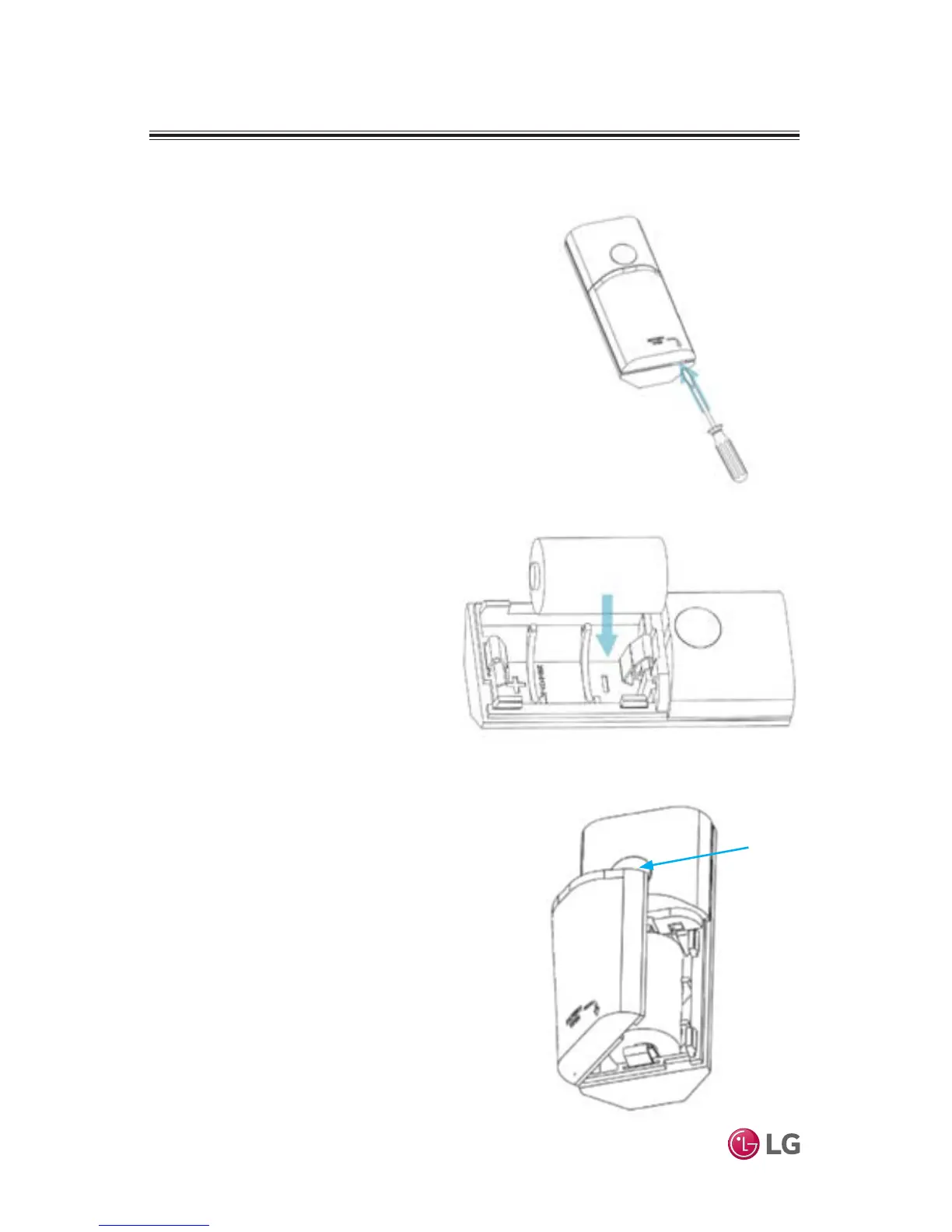

Figure 20: Remove
Sensor Cover
Figure 21: Install Battery
LED
Figure 22: Flashing LED
To Next Page
