Owner’s & Installation Manual 11
Installation InstructionsInstallation Instructions
Function Code Set
Press button to start.
3
During the test run, pressing the below
buttons will exit the test run:
- Select operation, temperature
up/down, wind flow control, wind
direction, start/stop button.
4
Pressing and holding the button for
3 seconds enters the remote controller
setup mode. If it is not held for 3 seconds,
it enters the user setup mode.
- Please cancel the right and left of wind
direction for RAC product.
1
Setup figure '01' blinks at the lower part
of indication window.
2

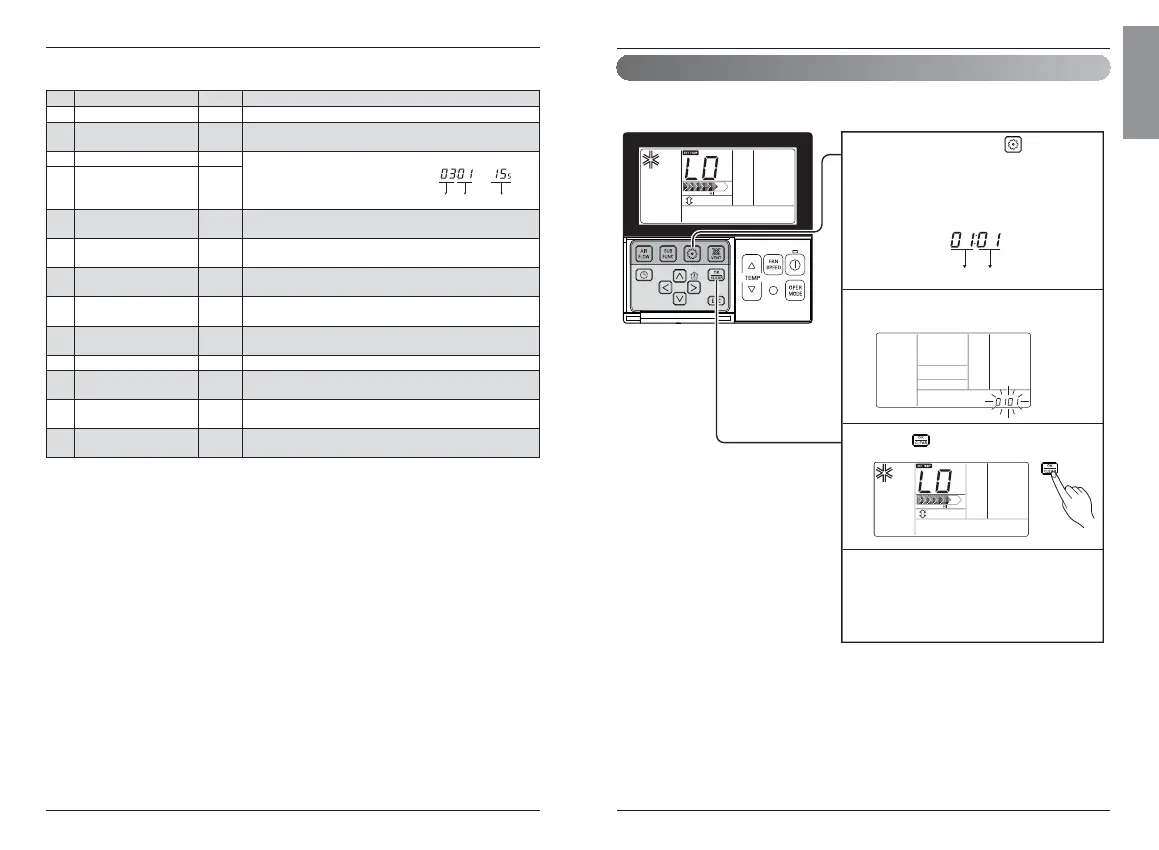

Installer Setting - Test Run Mode
After installing the product, you must run a Test Run mode.
For details related to this operation, refer to the product manual.
10 New Wide Wired Remote Controller
2) General Ventilation product
Some contents may not be displayed depending on the product function
No. Function Code Value
1 Test Run 01 01 : Test Run Setup
2 02 00~FF : Address of Central Control
3 SA(Supply Air) ESP 03 <ESP level> <ESP value> <Example>
4 EA(Exhaust Air) ESP 04
01 : Low 0~255
02 : High
03 : Super High
5 Product Direction 05
01 : Normal
02 : Opposite
6 Quick Refresh Priority 06
01 : Supply Air First
02 : Exhaust Air First
7 Master Setting 07
00 : Slave
01 : Master
8 Override Setting 08
00 : Slave
01 : Master
9 Dry Contact 09
00 : Auto-Off
01 : Auto-On
10 Release Of 3 Minute Delay 10 01 : Set
11 Zone State 11
01 : Variable
02 : Fixed
12
Humidification for Singular
13
00 : Not in Use
Ventilation 01 : Use
13
Humidification for Heat Mode
14
00 : Automatic
Ventilation 01 : Manual
Address Setting
Function Code ESP valueESP step
To Next Page
