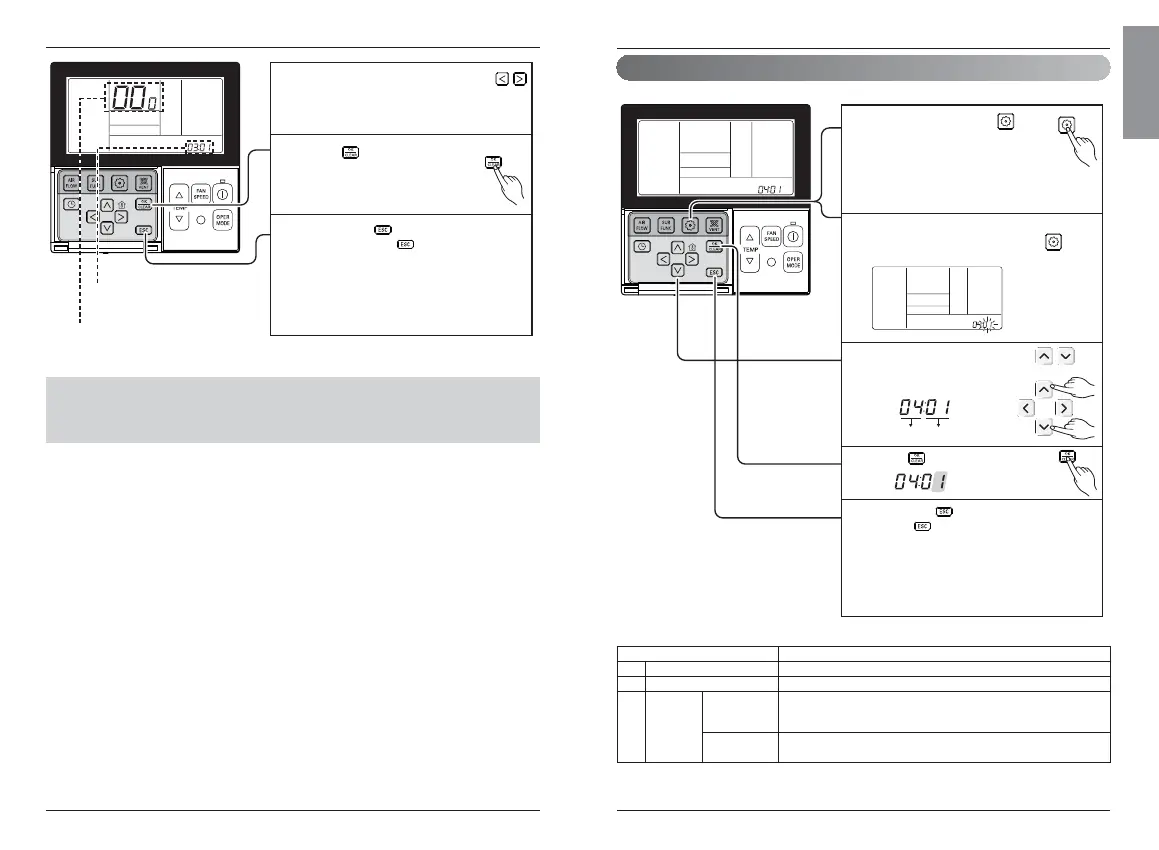

Owner’s & Installation Manual 15
14 New Wide Wired Remote Controller
Installation Instructions
Function Code Thermistor setting
Set Thermistor value by pressing
button. (01: Remote Controller,
02: Indoor, 03: 2TH)
3
Press button to save.
4
5
If moving to room temperature perception
sensor selection menu by pressing
button, it indicates as pictured below.
2
Pressing and holding the button
for 3 seconds enters the remote
controller setup mode. If it is not held
for 3 seconds, it enters the user setup
mode.
1
Pressing the button will exit the settings
mode. If is not pressed, the remote
controller will automatically exit setup mode
after 25 seconds with no input. If the set
button is not pressed, the changes will not
take effect.
Installer Setting - Thermistor
The function of 2TH has different operation characteristics according to the product.
Temperature sensor selection Function
01 Remote controller Operation in remote controller temperature sensor
02 Indoor unit Operation in indoor unit temperature sensor
03 2TH
Cooling
Operation of higher temperature by comparing indoor unit's and wired
remote controller’s temperature.
(There are products that operate at a lower temperature.)
Heating
Operation of lower temperature by comparing indoor unit's and wired remote
controller's temperature.
Thermistor Table
Installation Instructions
Function code,
ESP code
ESP value
Press button to save.
7
Select ESP fan step again by using
button and set up the ESP value, as No.
4 and 5, that corresponds to each wind
flow.
6
Pressing the button will exit the
settings mode. If is not pressed, the
remote controller will automatically exit
setup mode after 25 seconds with no
input. If the set button is not pressed, the
changes will not take effect.
8
• Please be careful not to change the ESP value for each fan step.
• It does not work to setup ESP value for very low/power step for some products.
• ESP value is available for specific range belongs to the product.
This is the function to select the temperature sensor to judge the room temperature.
