Getting Started8
Getting Started
1
Setting up the sound
bar system
Preperation

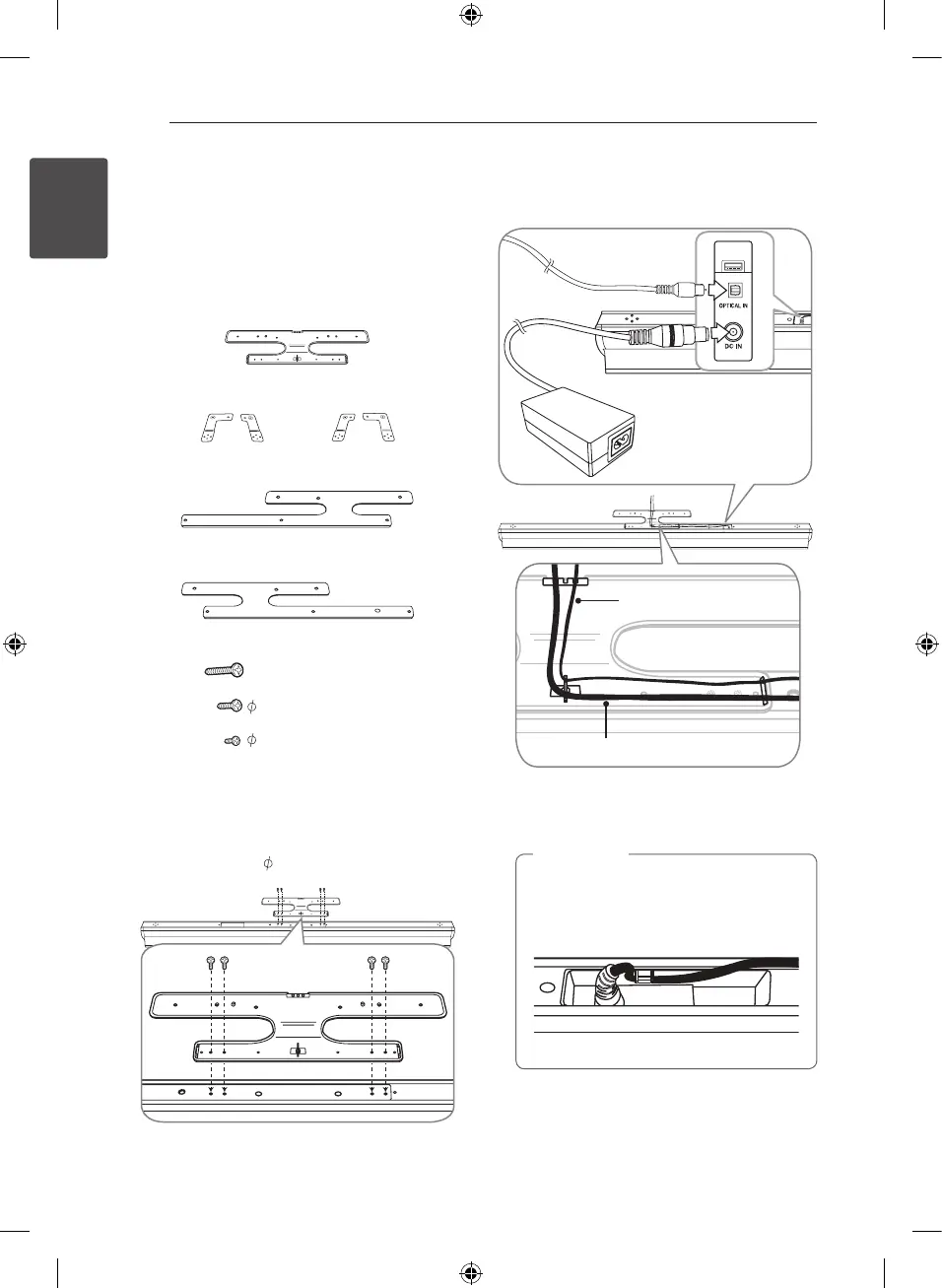

Check the supplied accessories below.
TV center bracket (2)
Bracket cover (Left)
Bracket cover (Right)
Brackets (R1 UP / R2 DOWN / L2 DOWN/ L1 UP)
M 4.0 mm x 26 mm (8 EA)
3.0 mm x 14 mm (16 EA)
3.0 mm x 8 mm (8 EA)
Attach the sound bar to the
TV
1. Attach the TV center bracket on the sound bar
with the screws ( 3.0 mm x 14 mm).
2. Connect the AC adaptor cable and the optical
cable to the sound bar. (Only the L channel
sound bar has the OPTICAL IN connector.)
Optical cable
AC Adapter cable
3. Arrange the cables to cable holder on TV center
bracket. At this point, the AC adapter cable
must be on the outside of the cable holder.
Arranging the AC adaptor cable, you have
to x the cable below the cable holder.
Refer to the image below.
,
Note
NB7530A-N0_DTWNLLK_ENG.indd 8 2013-08-19 3:10:59
