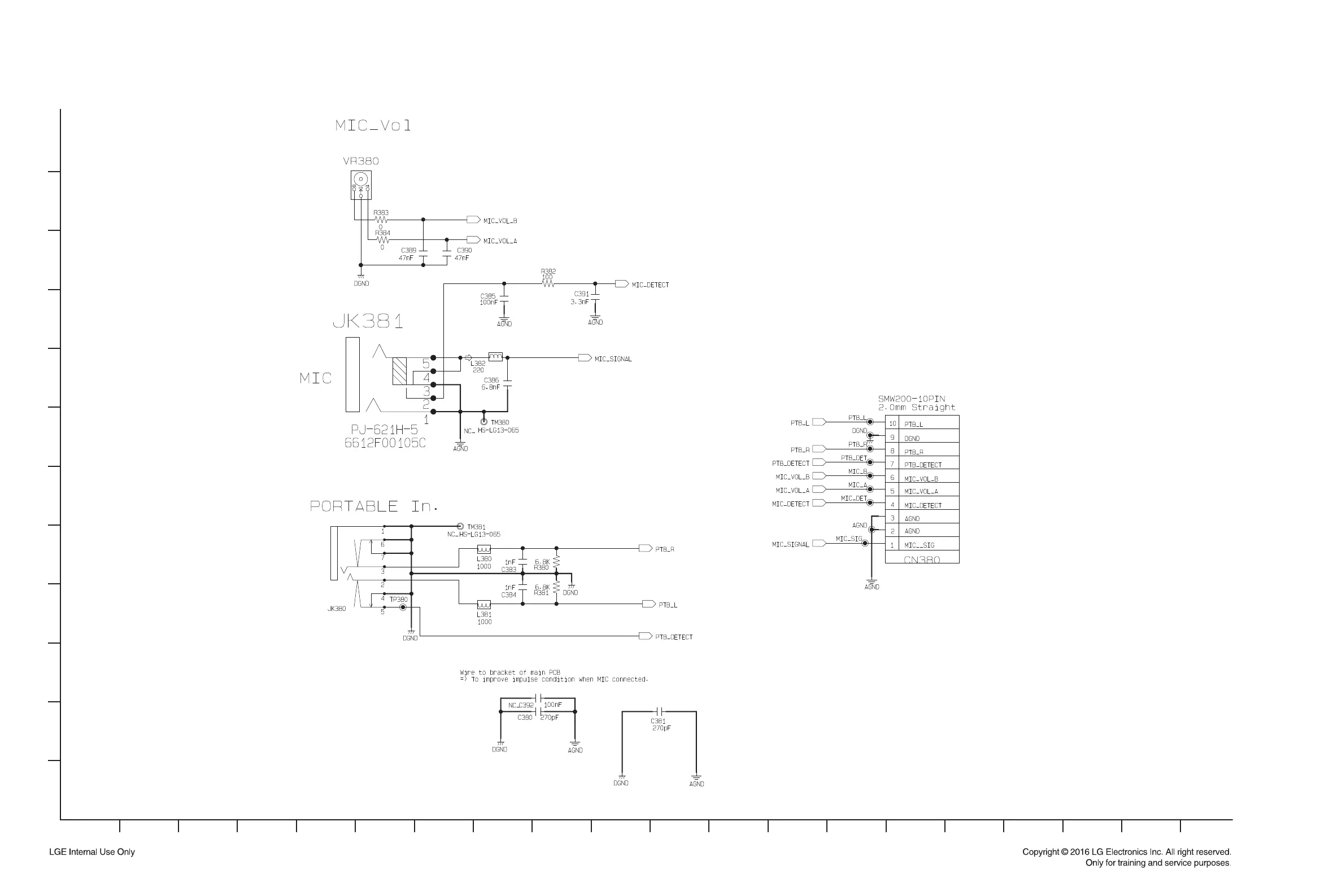

8. MIC & PORTABLE CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MIC & PORTABLE
EAX65589004-SD_Rev1_1.0
2015. 07. 14
