LG OLED65B6P Service Manual

- 19 -
LGE Internal Use Only
Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

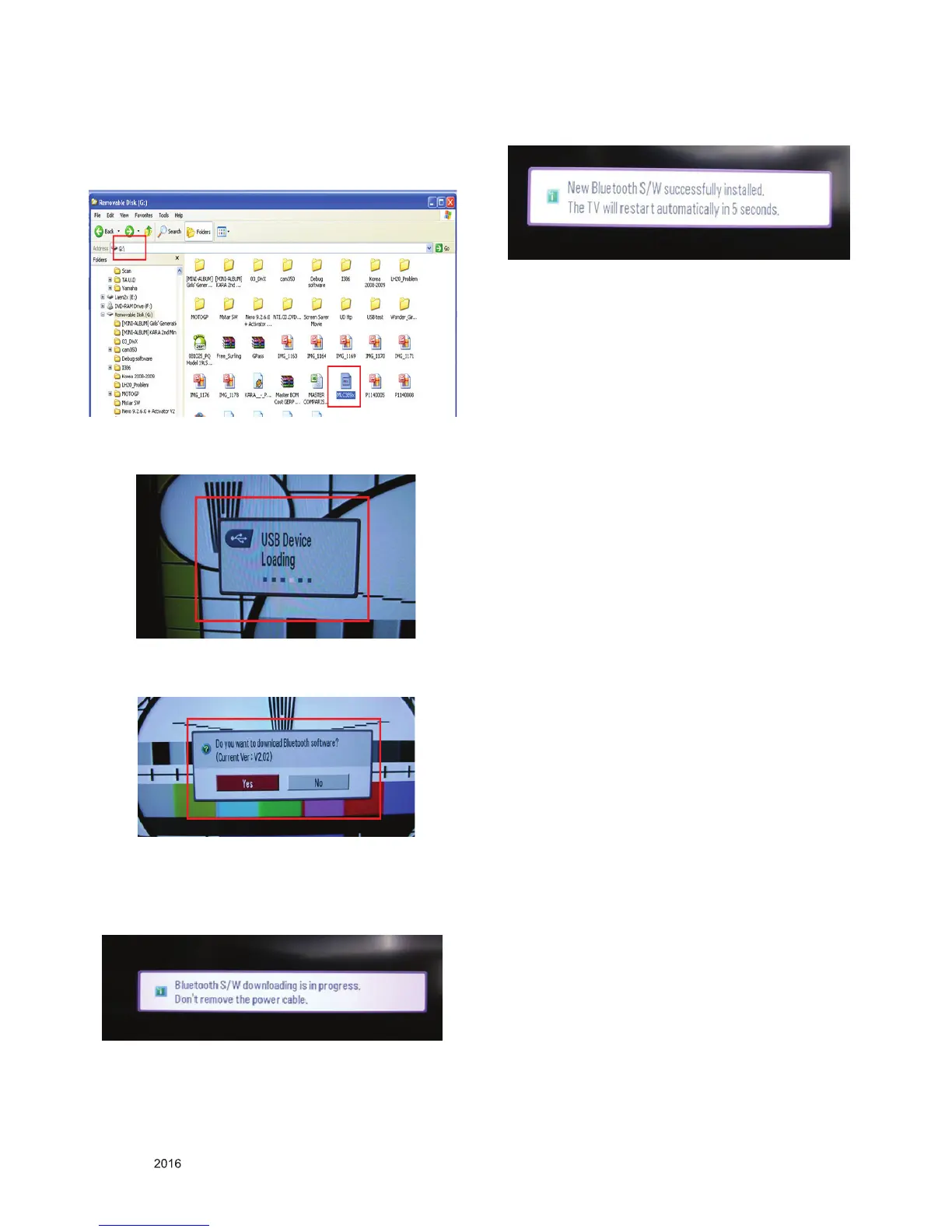

3) Copy New File
Copy Bluetooth software MCL389x.bin file to memory
stick with out folder.
(Caution) Do not copy the file to the inside folder
(2) Connection
- Plug-in USB Memory stick to the USB input of the set.
(3) USB input -> Automatically loading menu
* The OSD “USB Device loading” is appealed by
automatically…
(4) Selecting Window for Bluetooth Software update
▪ The Pop-up window appears for selecting to update
Bluetooth software and information about current
Bluetooth software. (Ex : V2.02)
▪ Select “Yes”
(5) Bluetooth S/W Downloading Process
▪ Time Process Downloading new Bluetooth software about
10seconds
▪ Please Wait until finish and do not un-plug power cable
(6) OSD – Bluetooth software updated successfully
▪ OSD Information Bluetooth software update success
▪ LCDTV Set will restart by automatically…
▪ Time Process to restart about 5seconds
(7) Check S/W Version
▪ Push “IN-START” button on service remote Controller
▪ Check Information Bluetooth S/W version will appear on
OSD Service Menu.
Example : Bluetooth SW version 2.05

LG OLED65B6P Specifications

General

Screen Type	oled
Wall Mount	300mm x 200mm
Tuner	digital
Screen Size	64.5 inches, 65 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
Number Of Speakers	4
HDMI Ports	4
HDMI 2.1 Ports	0
USB Ports	3
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	magic
3D	no
Power Consumption	200 kilowatt hours
Depth with Stand	8.9 inches
Height with Stand	34.7 inches
Width with Stand	57.1 inches
Net Weight with Stand	57.1 pounds
Depth without Stand	1.9 inches
Height without Stand	33 inches
Net Weight without Stand	49.8 pounds
