- 27 -
LGE Internal Use Only
Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

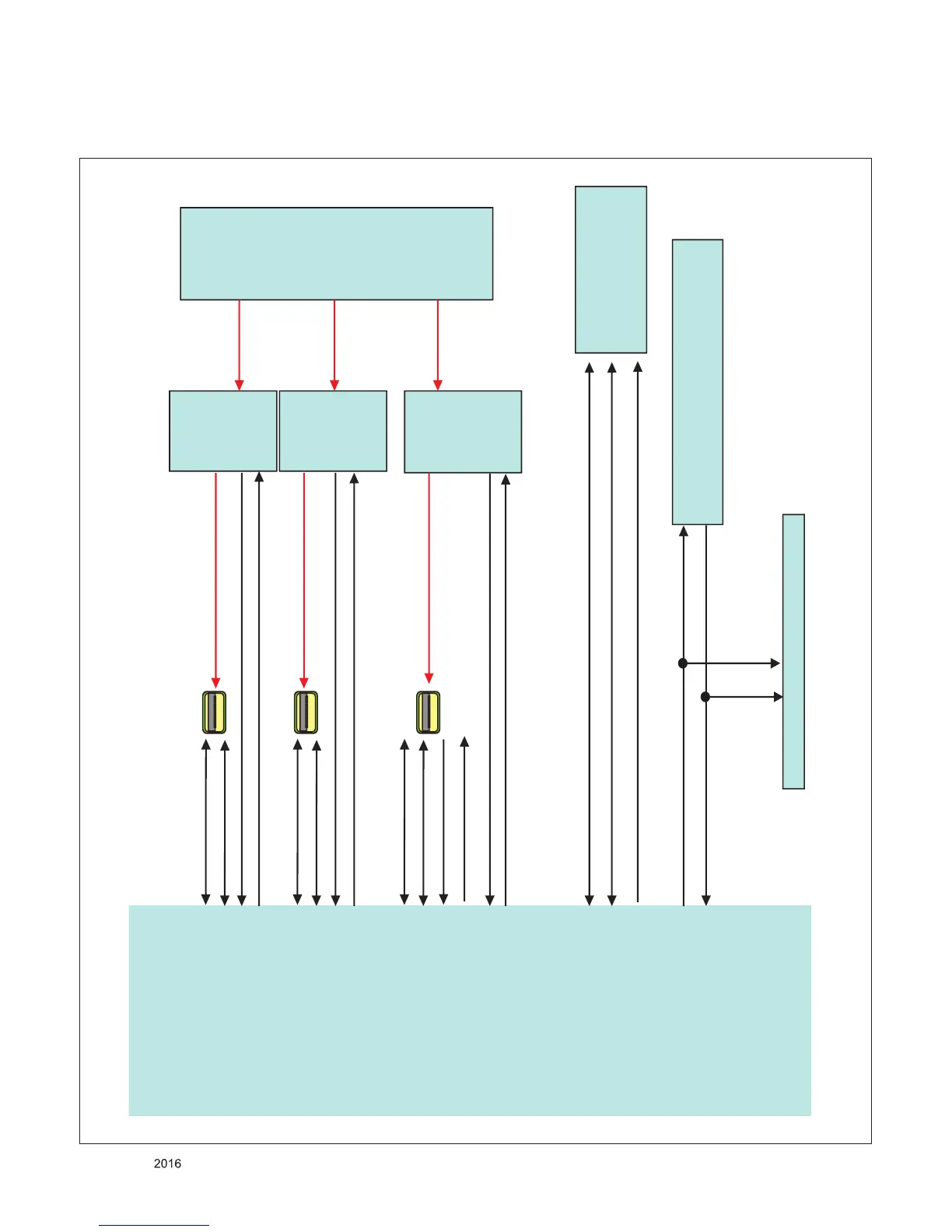

8. USB / WIFI / M-REMOTE / UART
USB3
USB_DP1
USB_DM1
HSDP0
HSDM0
USB2
USB_DP2
USB_DM2
RTC_XI
RTC_XO
OCP
IC4400
6A
DCDC
IC2305
+5V_USB_1
+5V_USB_2
/USB_OCD1
USB_CTL1
USB_CTL2
/USB_OCD2
WIFI_DM
WIFI_DP
HSDM3
HSDP3
RENESAS MICOM(IC3000)
ST_IO13
ST_IO12
SOC_TX
SOC_RX
USB3_DP0
+5V_USB_1
USB_CTL3_0
/USB_OCD3_0
HSDM1
HSDP1
ST_IO16
ST_IO17
USB3_0_DM0
USB3_0_DP0
USB1
USB3_DM0
AI3L
AI3L
RS232C_Debug
USB2.0
WIFI Combo
M_RFModule_RESET
GPIO93_MCLK
USB3_TXM0/USB3_TXP0
USB3_RXP0/USB3_RXM0
HSIN / HSIP
HSON / HSOP
OCP
IC4301
OCP
IC4301
+5V_NORMAL
+5V_NORMAL
JK4300
JK4302
USB2.0
USB3.0
+5V_NORMAL
JK4400
K2L
