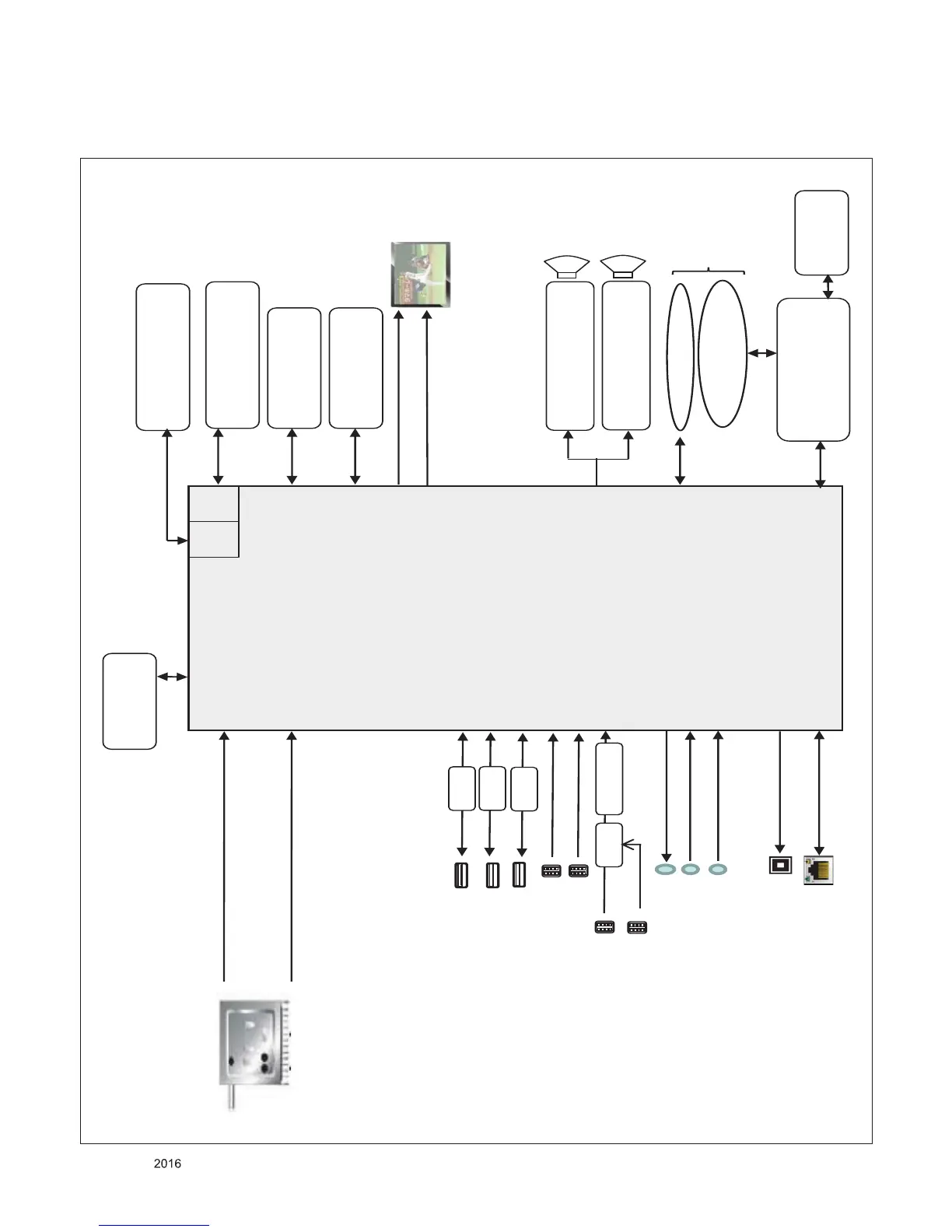

Block Diagram
1.K2L Circuit Block Diagram
MAIN Audio AMP
(NTP7515D)
K2L
USB1 (3.0)
OPTIC
LAN
HDMI1 HDMI 2.0
EEPROM(NVRAM)
(256Kb)
P0
USB2 (2.0)
51P/41P
eMMC
(8GB)
Sub Micom
(RENESAS
R5F100GEAFB)
DDR3 2133 X 16
(512MB X 2EA)
X_TAL
27MHz
A
B
X_TAL
32.768KHz
I2S Out
I2C 4
USB3_TX/RX0
I2C 4
(HW Port)
COMP
OCP
YPbPr
CVBS/RGB
SPDIF OUT
ETHERNET
I2C 1
(HW Port)
SUB
ASSY
IR / KEY
LOGO LIGHT(Ready)
WIFI/BT Combo
USB_WIFI
GPIO86_SPI_DI0
GPIO88_SPI_DO0
DDR3 2133 X 16
(512MB X 2EA)
HDMI3(External EDID)
USB3 (2.0)
RS232C
HDMI2(ARC) HDMI 2.0
TWEETER Audio AMP
(NTP7515D)
AV
AV
Vx1
OCP
OCP
USB_DM/DP2
USB_DM/DP1
P1
P2
I2C 2
I2C6
(HW Port)
HDMI4(External EDID)
MUX
Digital Demod
IF (+/-)
Analog Demod
Tuner : I2C 2
CVBS/SIF
Tuner
RETIMER
