7
ENGLISH

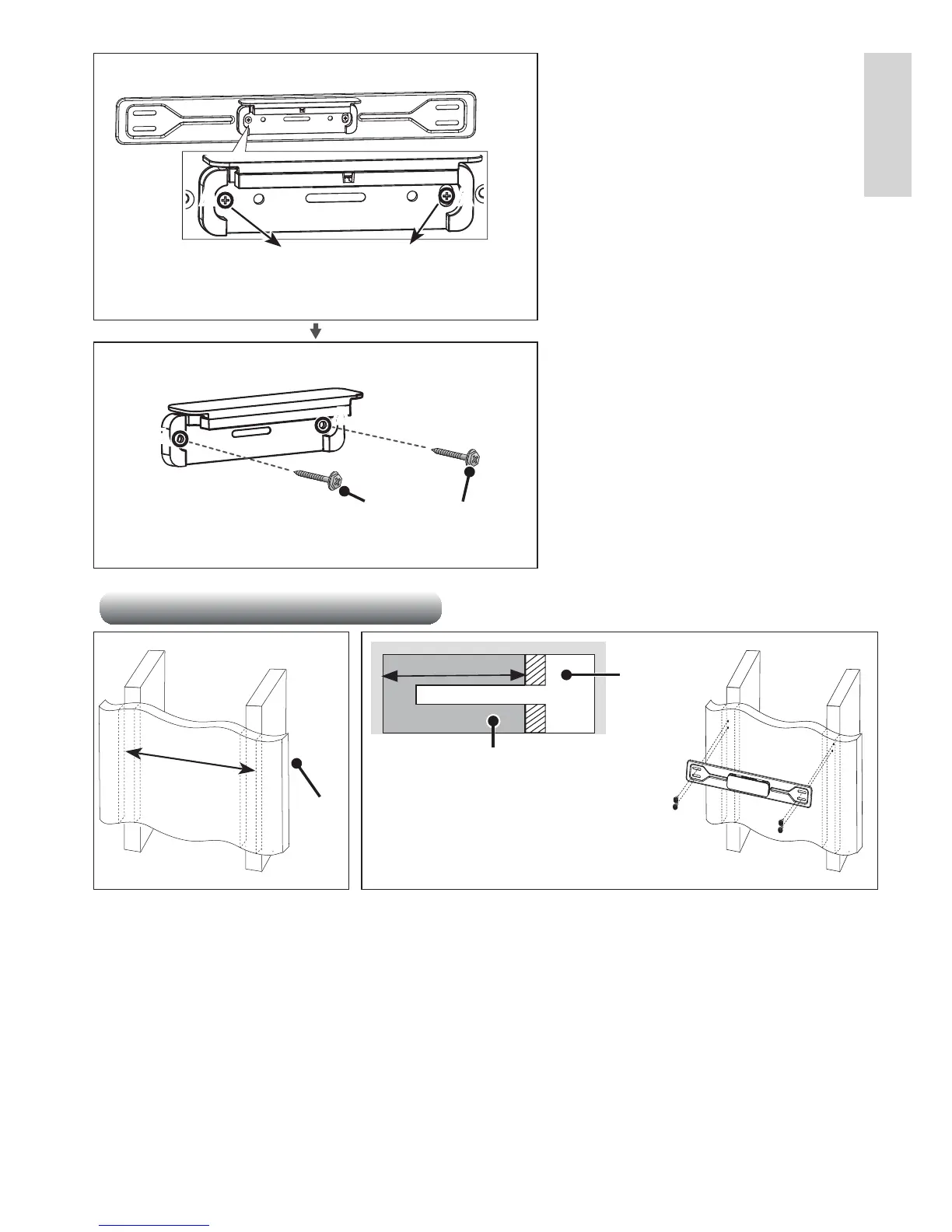

Remove the wall mount fixing screws.
A A
ĺ Rotate the two screws next to A
counterclockwise to remove the screws
and the mounting bracket for wooden
walls from the top wall mount.
ĺ Place the top wall mount onto the area
of the wall where you want to install it,
and then mark the fixing point for the
fixing screws and remove the top wall
mount.
ĺ Attach the top wall mount to the wall by
referring to the illustration below.
ĺ Check if the wall mount is level by
using a leveler.
Wall mount screw
A
A
ĺ Fix one wall mount fixing screw into the
top left hole next to A and another
screw into the top right hole next to A
as shown in the illustration.
ĺ At this time, use a + driver (Manual or
motorized) or 8 mm wrench to tighten
the screw so that the wall, wall bracket
and screw are completely pressed
against one another.
ĺ After attaching the screws, put down
the top of the top wall mount.
When mounting to wooden studs
406 mm
drywall
drywall
wood stud
76 mm
a. Locate and mark the centers of the wall studs using a stud finder.
b. After aligning the wall bracket on the wall where the center of the wood stud is marked, mark the
location of the screws and then remove the wall bracket.
c. Use a level to make sure your screw marks are level.
d. Use the 4 mm drill bit for wood to drill holes with the depth of 76 mm or above where the wall mount
screw location is marked on the wall.
e. Clean the drilled hole.
f. Tighten the wall mount screws for the wall bracket on the drilled hole.
ĺ At this time, tighten the screw so that the wall, wall bracket and the wall mount screw are pressed
against one another.
(Drywall can be damaged when tightened with excessive force, please be careful.)
ĺ When tightening the screw use the + driver (manual or motorized) or 8 mm wrench.
To Next Page
