9
ENGLISH

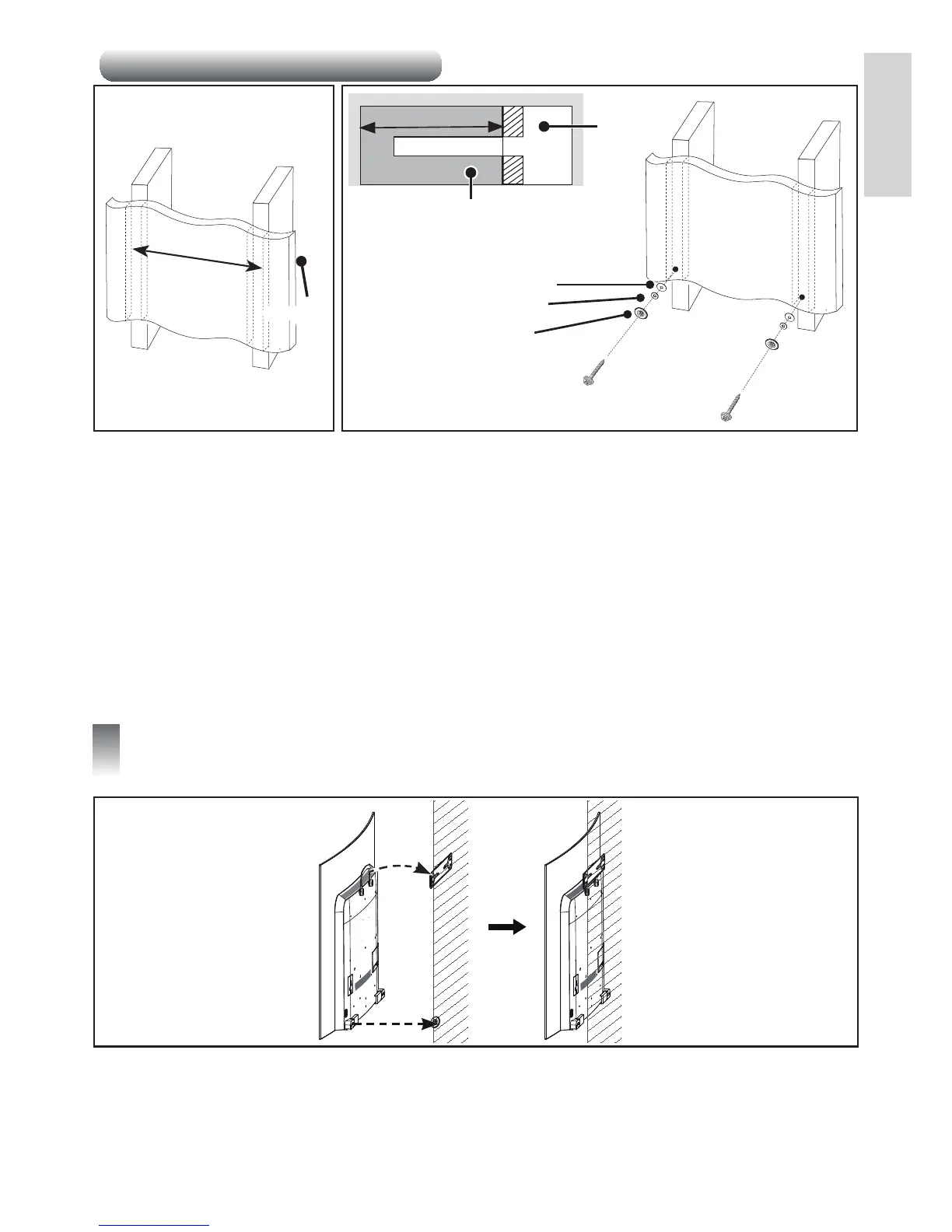

When mounting to wooden studs
406 mm
drywall
bottom wall fixing bracket
bottom wall fixing washer
Washer
drywall
wood stud
76 mm
a. Locate and mark the centers of the wall studs using a stud finder.
b. After aligning the wall bracket on the wall where the center of the wood stud is marked, mark the
location of the screws and then remove the wall bracket.
c. Use a level to make sure your screw marks are level.
d. Use the 4 mm drill bit for wood to drill holes with the depth of 76 mm or above where the wall mount
screw location is marked on the wall.
e. Clean the drilled hole.
f. Tighten the wall mount screws for the wall bracket on the drilled hole.
ĺ Depending on the condition of the wall, use additional washers when tightening the bottom wall
attaching brackets.
ĺ At this time, tighten the screw so that the wall, wall bracket and the wall mount screw are pressed
against one another.
(Drywall can be damaged when tightened with excessive force, please be careful.)
ĺ When tightening the screw use the + driver (manual or motorized) or 8 mm wrench.
6
How to Attach the Top Wall Mount to the Product
- Two or more people are needed to lift and install the product.
Hang the hanger on the top wall mount as shown in the figure.
ĺ Two people must lift the TV set attached to the hanger and carefully check from both sides whether it
is properly installed.
ĺ Make sure that the product is fixed securely by lightly pulling on the bottom of the TV.
ĺ The product should be about 10 mm apart from the wall. When connecting cables and accessories, make
sure that the product is installed at a sufficient distance from the wall to avoid putting stress on them.
ĺ Pushing the product with excessive force may cause damage to the product.
To Next Page
