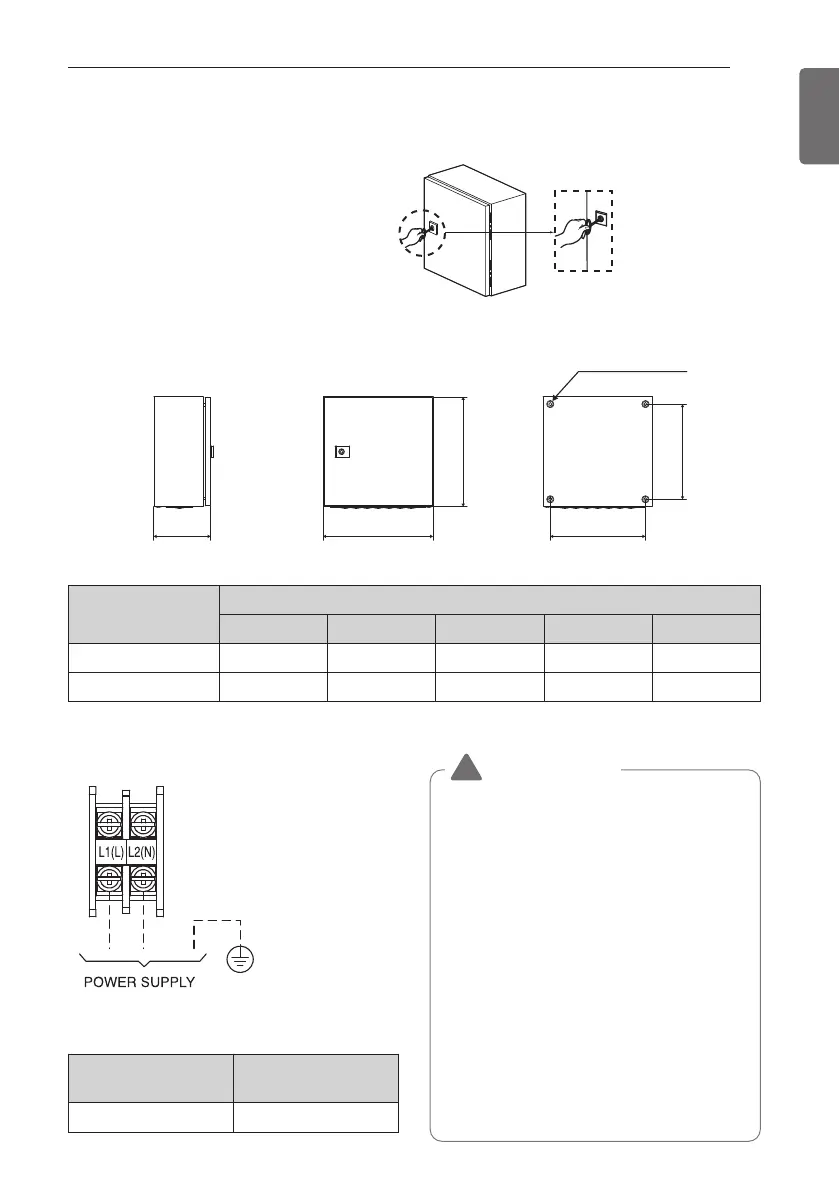

Mechanical installation
1 Open the door using the key.
2 Drill 4 holes on correct position and fix the Comm. Kit box securely with 4 screws
(Field supply) through the holes Ø 9 mm(11/32 inch) [Reference the length of the holes Ø
9(11/32)]
<Side> <Front side> <Back side>
Model
Size
W D H A B
PAHCMR000 300 155 300 260 260
PAHCMS000 380 155 300 340 260
Electric Wiring Work
CAUTION
!
• All field supplied parts and materials and
electric works must be conform to local
codes.
• Use copper wire only.
• All wiring must be performed by an
authorized electrician.
•
A main switch or other means for
disconnection, having a contact separation
in all poles, must be incorporated in the
fixed wiring in accordance to relevant local
and national legislation.
• Refer to the installation manual attached
to the outdoor unit for the size of power
supply electric wire connected to the
outdoor unit, the capacity of the circuit
breaker and switch, wiring and wiring
instructions.
Rated current of
appliance A
Nominal
cross-sectional area mm
2
0.1 2.5
Minimum cross-sectional area of conductors
