LG PAHCMS000 - Controller Module; Module Identification; Electric Characteristics

6

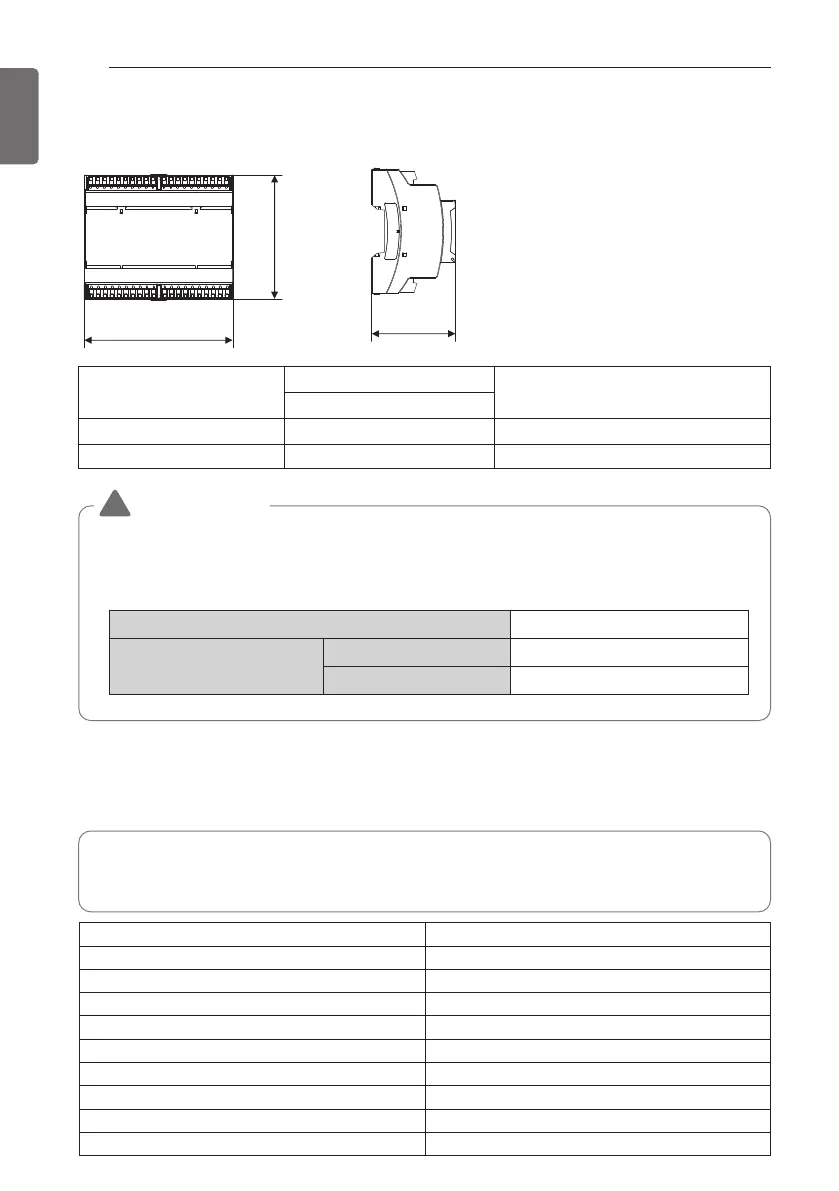

CONTROLLER MODULE
ENGLISH
CONTROLLER MODULE
61
A
90
Model
Size
Remark
A
PAHCMM000 162 Main module
PAHCMC000 108 Communication module
CAUTION
!
• This model requires DC12 V ~ external power supply. (Select an insulating transformer
that complies with IEC61558-2-6 and NEC Class 2.)
• Please check the Product operation range below.
Power supply DC 12 V
Product operation range
Ambient Temperature -20 ~ 65 °C DB
Humidity 0 ~ 98 % (Non-Condensing)
Electric Characteristics
- Recommended circuit breaker is ELCB.
- MFA is used to select the circuit breaker and ground fault circuit interrupter.
- Refer to the PDB about detail electric characteristics.
ELCB : Earth Leakage Circuit Breaker
MFA : Maximum Fuse Amperes(A)
PDB : Product Data Book
Rated Current (A) Sectional Area (mm
2
)
≤ 0.2
Tinsel cord
> 0.2 and ≤ 3
0.5
> 3 and ≤ 6
0.75
> 6 and ≤ 10
1
> 10 and ≤ 16
1.5
> 16 and ≤ 25
2.5
> 25 and ≤ 32
4
> 32 and ≤ 40
6
> 40 and ≤ 63
10
