Wired remote controller _ 21
Wired remote controller
3. Please fix remote controller upper part into the setup board attached to the surface of the wall, as the
picture below, and then, connect with setup board by pressing lower part.
- Please connect not to make a gap at the remote controller and setup board’s upper and lower, right and left
part.
4. Please connect indoor unit and remote controller using connection cable.
Please check if connector is normally connected.
DC 12 V Red
Signal Yellow
GND Black
1:1 Control

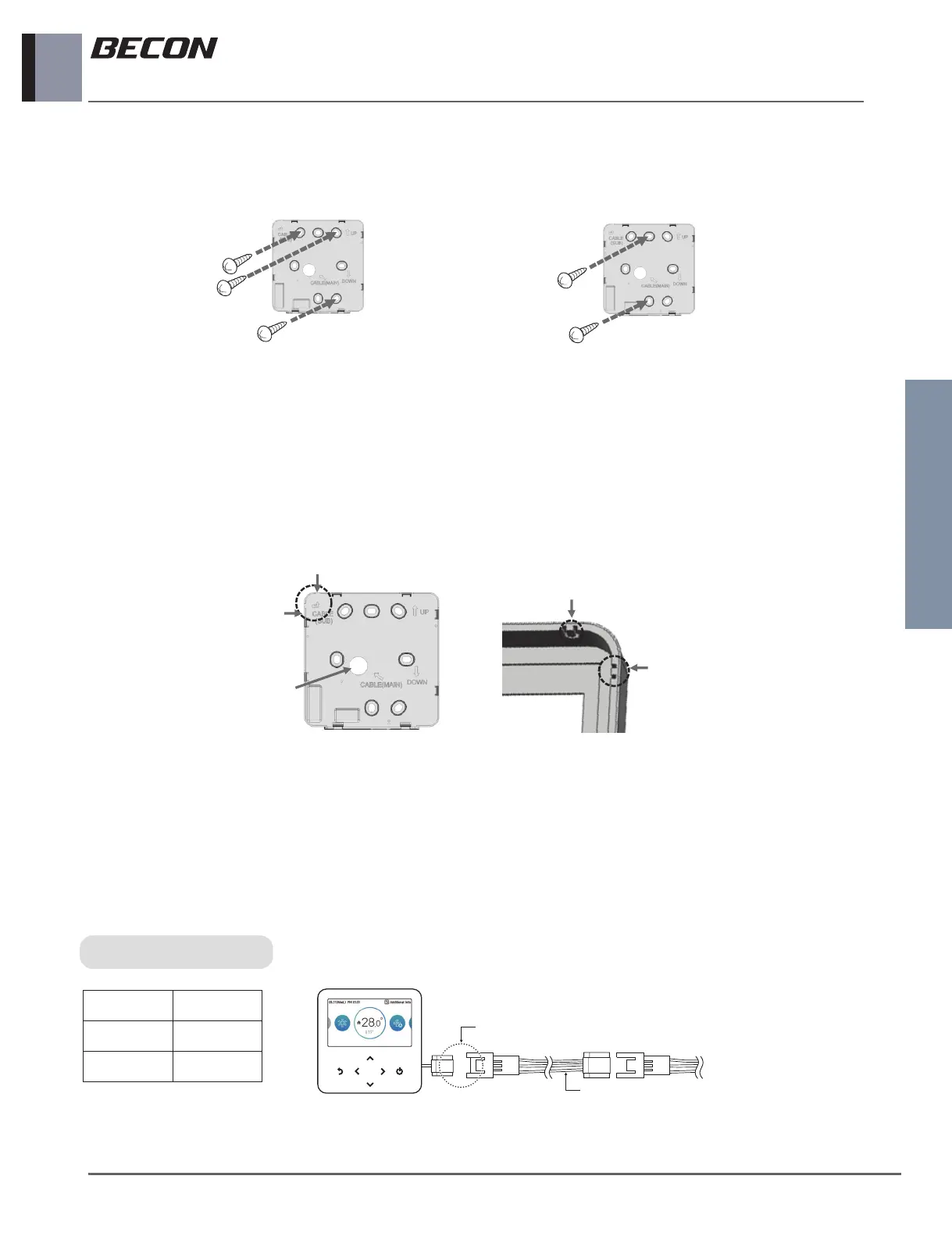

1. Please fix tightly using provided screw after placing remote controller setup board on the place where
you like to setup.
- Please set it up not to bend because poor setup could take place if setup board bends.
Please set up remote controller board fit to the reclamation box if there is a reclamation box.
<4 socket reclamation box installation> <2 socket reclamation box installation>
2. Can set up Wired remote controller cable into three directions.
- Setup direction: the surface of wall reclamation, upper, right
- If setting up remote controller cable into upper and right side, please set up after removing remote controller
cable guide groove.
h Remove guide groove with long nose.
- Reclamation to the surface of the wall.
To Next Page
