Setting up

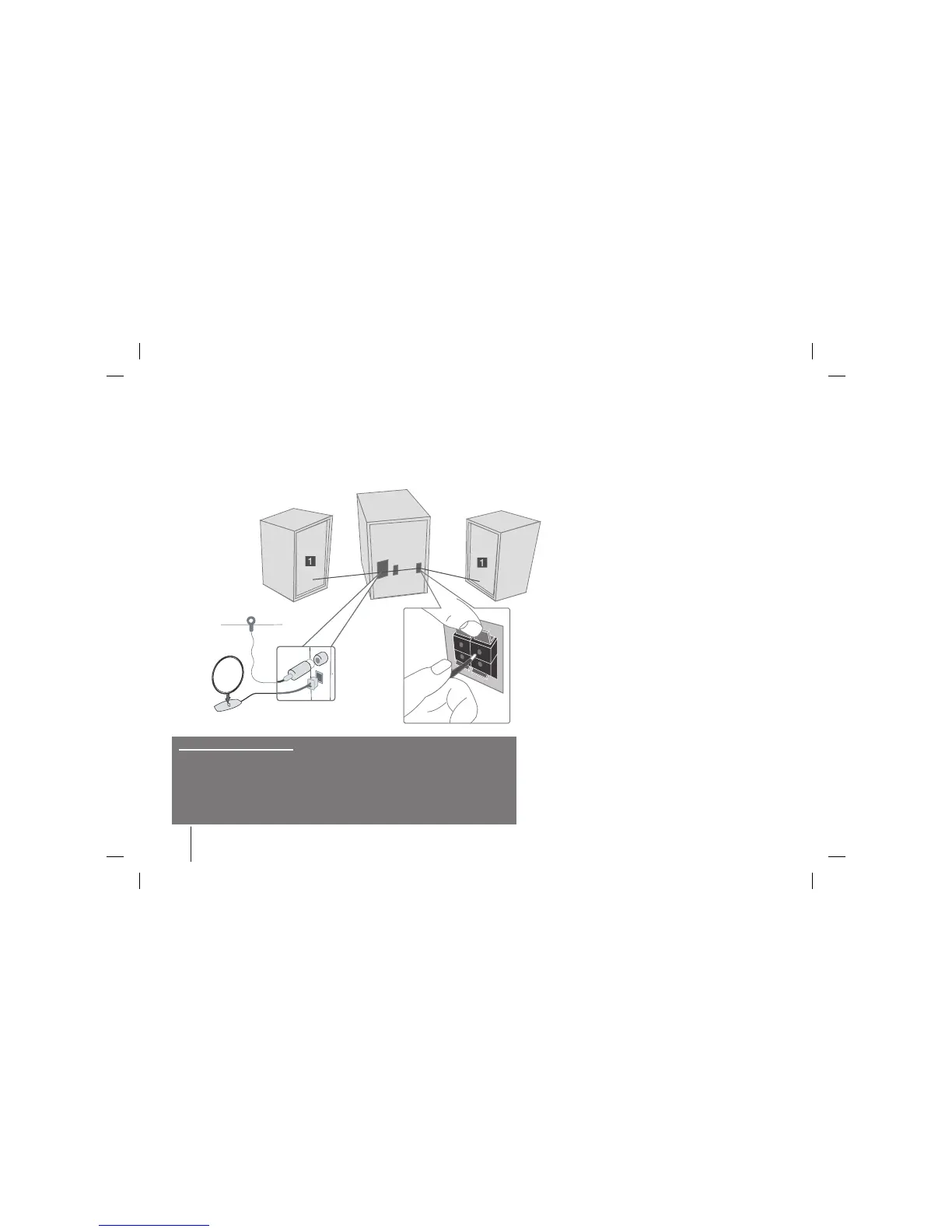

1 Connection of the front speakers
Connect the speaker cables to the speaker terminals.
Connect the black end of each wire to the terminals marked -
(minus) and the other end to the terminals marked + (plus).
2 Fit the AM loop aerial to its stand (AM optional)
Connect the AM loop aerial to the unit.
3 Connect the FM aerial
The reception will be at its best when the two loose ends of
the aerial are in a straight line and horizontal.
4 Plug the power plug into a wall socket
NOTES:
• If TV screen becomes discolored do not place speakers
within 30cm from TV.
•
Be sure to match the speaker cord to the appropriate
terminal on the components: + to + and – to –. If the cords
are reversed, the sound will be distorted and will lack base.
Be careful of the following
• Be careful to make sure children not to put their hands or any objects into the
*speaker duct.
*speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure).
• The speakers contain magnet parts, so color irregularity may occur on the TV
screen or PC monitor screen. Please use the speakers far away from either TV
screen or PC monitor.
2
3
FM - aerial
AM - aerial (optional)
