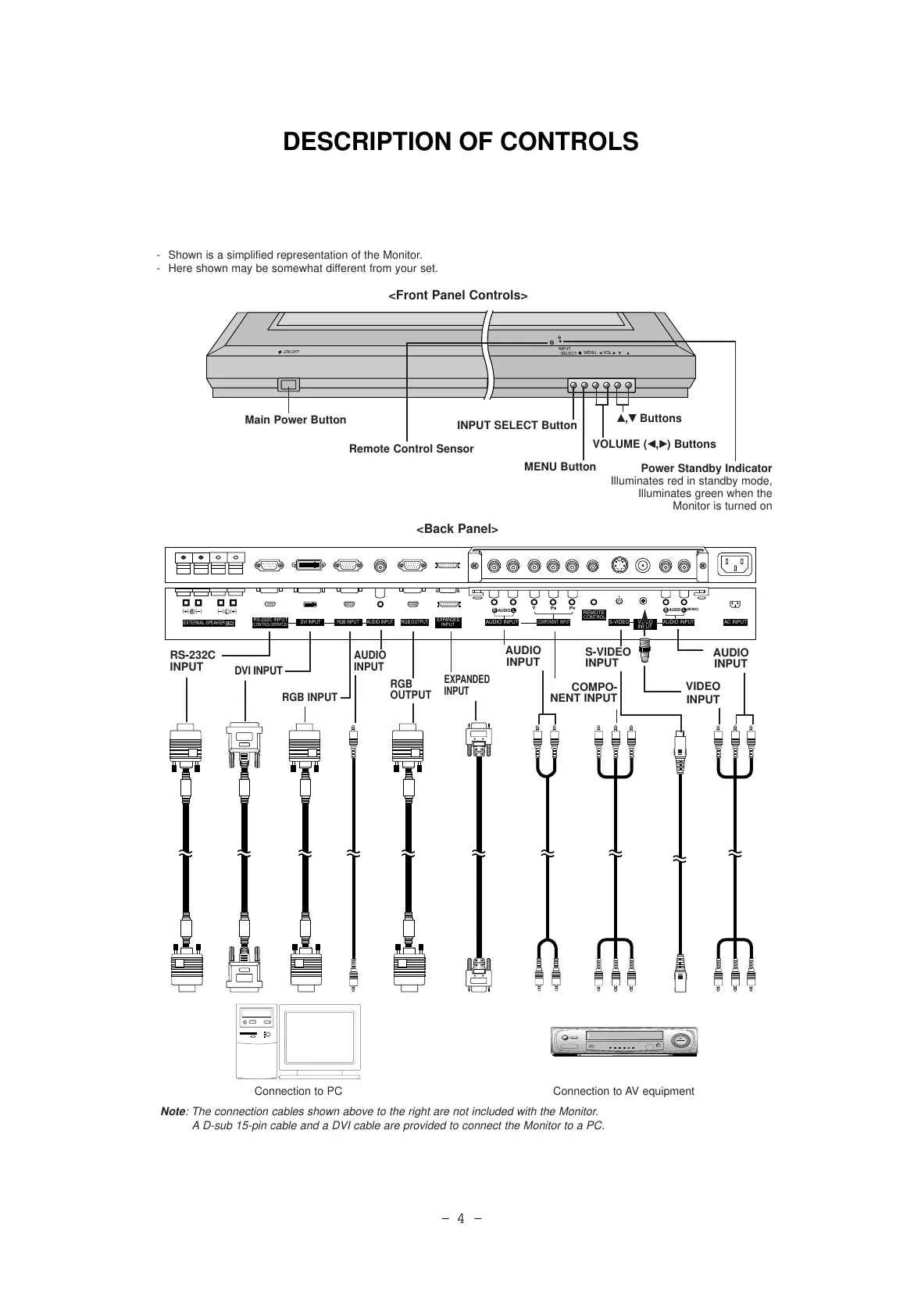

DESCRIPTION OF CONTROLS
<Back Panel>
<Front Panel Controls>
Connection to PC
Note: The connection cables shown above to the right are not included with the Monitor.
A D-sub 15-pin cable and a DVI cable are provided to connect the Monitor to a PC.
Connection to AV equipment
( )( )
R
( )( )
L
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
YP B P R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO AC INPUTAUDIO INPUT AUDIO INPUT COMPONENT INPUT AUDIO INPUT RGB OUTPUTRGB INPUTDVI INPUT
VIDEO
INPUT
EXPANDED
INPUT
VOL.MENU
INPUT
SELECT
ON/OFF
Main Power Button
INPUT SELECT Button
VOLUME (
F
,
G
) Buttons
Power Standby Indicator
Illuminates red in standby mode,
Illuminates green when the
Monitor is turned on
Remote Control Sensor
MENU Button
D
,
E
Buttons
AUDIO
INPUT
VIDEO
INPUT
S-VIDEO
INPUT
AUDIO
INPUT
RS-232C
INPUT
DVI INPUT
RGB INPUT
RGB
OUTPUT
EXPANDED
INPUT
AUDIO
INPUT
COMPO-
NENT INPUT
- Shown is a simplified representation of the Monitor.
- Here shown may be somewhat different from your set.
