2-40
ONE POINT REPAIR GUIDE
7. BT CONNECTION ERROR
When you connect Wireless connection(like mobile phone, multi-room SPK, etc) through the BT,
the “BT ERROR“ message appears.
7-1. BT module
7-1-1. Solution
Replace BT module on Main chassis.
7-1-2. How to troubleshoot (Countermeasure)
1) Check your BT device. Make sure that BT function is on-state.
2) If it is OK, please check the CN252.
3) If there is soldering problem, please re-soldering pin CN252.
4) If after re-soldering problem still occurs, replace BT module.
5) If problem still occurs after change BT module, check MT8563 IC (IC501). Refer to item 2-7.
7-1-3. Service hint (Any picture / Remark)

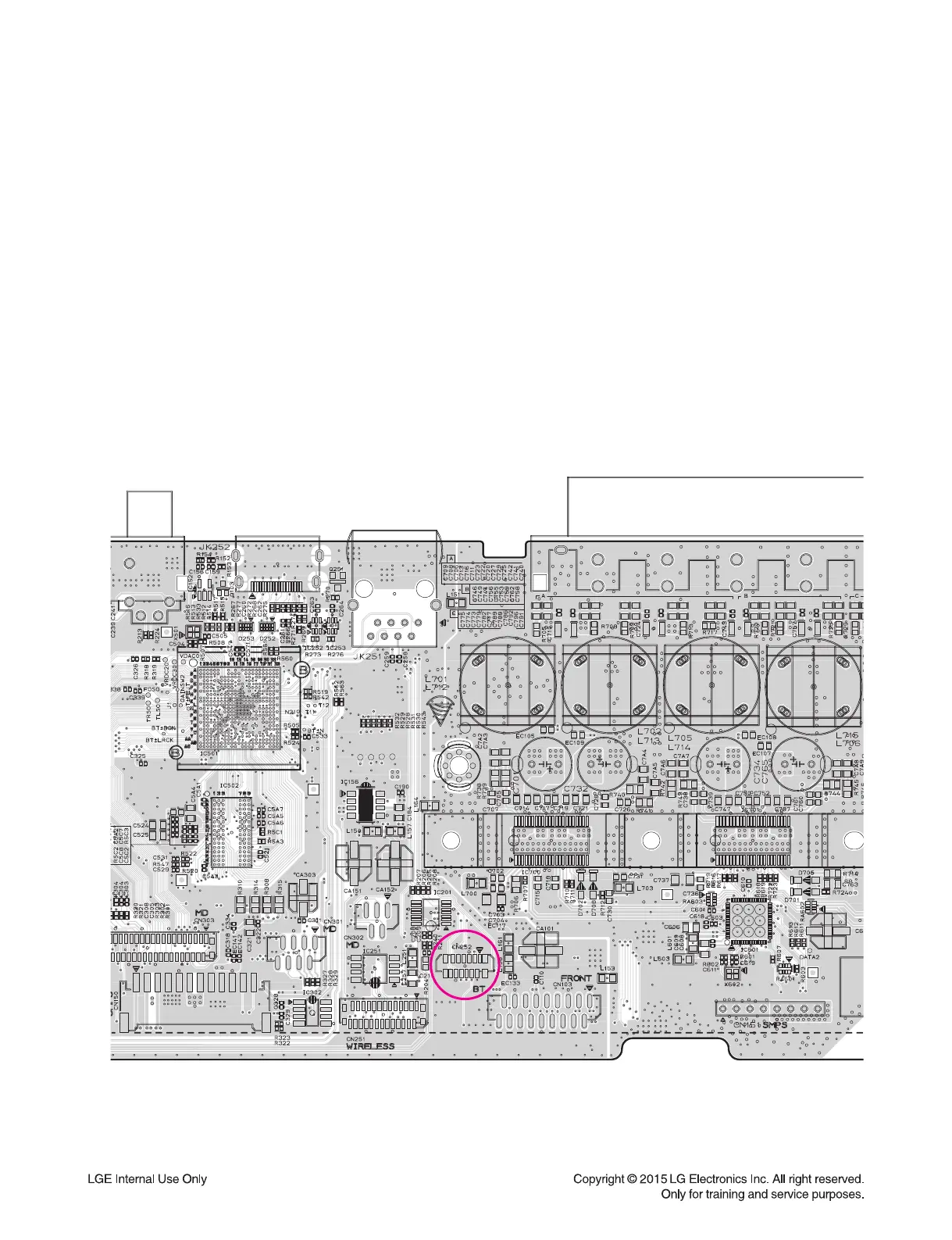

< MAIN board top view >
CN252
