Connecting 13
Connecting
2

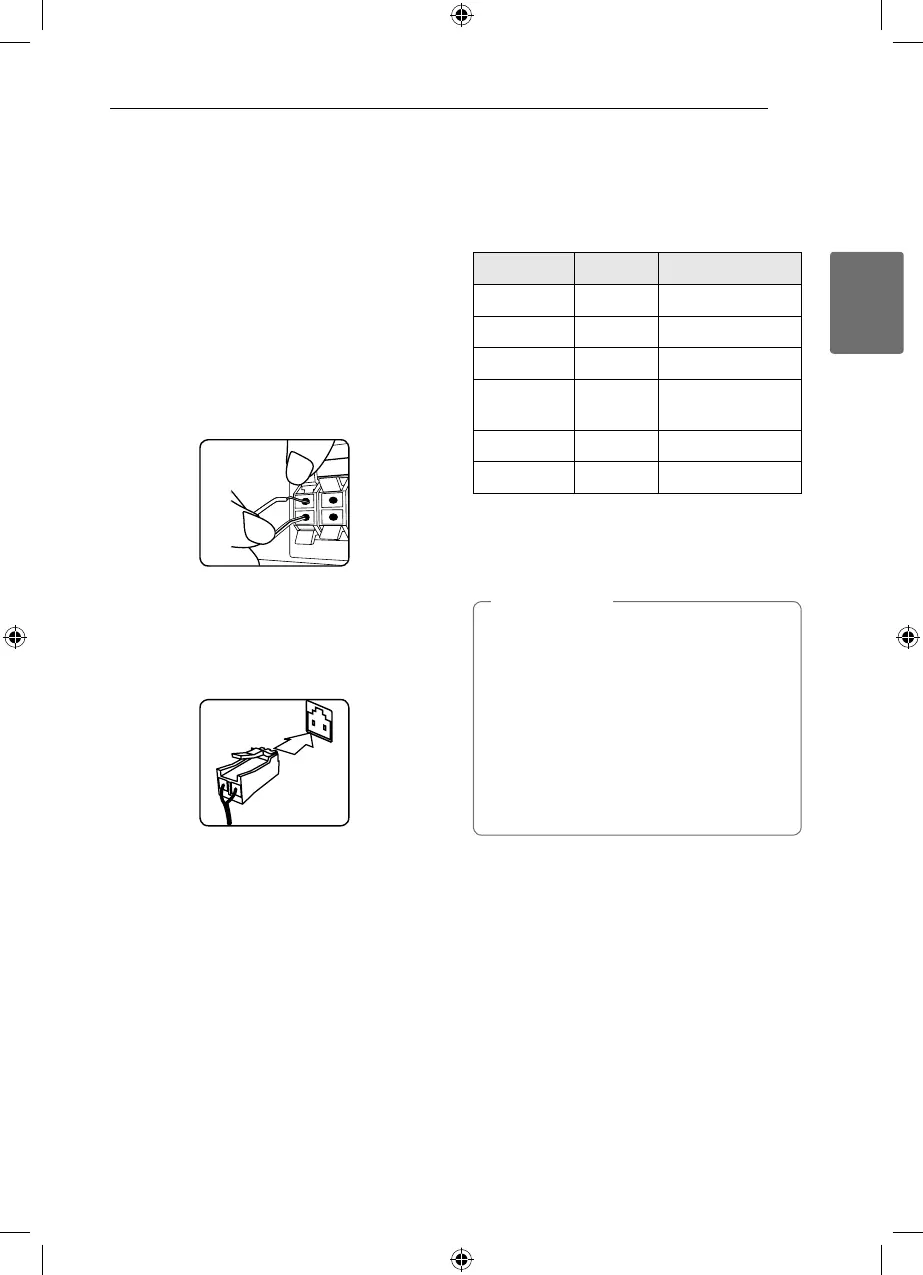

Speaker Connection
Attaching the speakers to the
player
1. Connect the wires to the unit.
Match each wire’s colored band (or marking)
to the same colored (or marked) connection
terminal on the rear of the unit. To connect the
cable to the unit, press each plastic finger pad
to open the connection terminal. Insert the wire
and release the finger pad.
Connect the black stripe of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).
Connect a woofer cord to the player. When
connecting a woofer cord to the player, insert
the connector until it clicks.
2. In some cases, the wires need to be connected
to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding
or marking:
Color Speaker Position
Grey (R.R/L) Rear Rear right
Blue (R.R/L) Rear Rear left
Green (C) Center Center
Orange
Sub
woofer
Any front position
Red (F.R/L) Front Front right
White (F.R/L) Front Front left
To connect the cable to the speakers, press each
plastic nger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the nger pad.
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
>
Caution
LHB655-FB_BKENHLK_ENG_6914.indd 13 2015-04-13 �� 2:24:32
