2-24
WAVEFORMS OF MAJOR CHECK POINT
1.

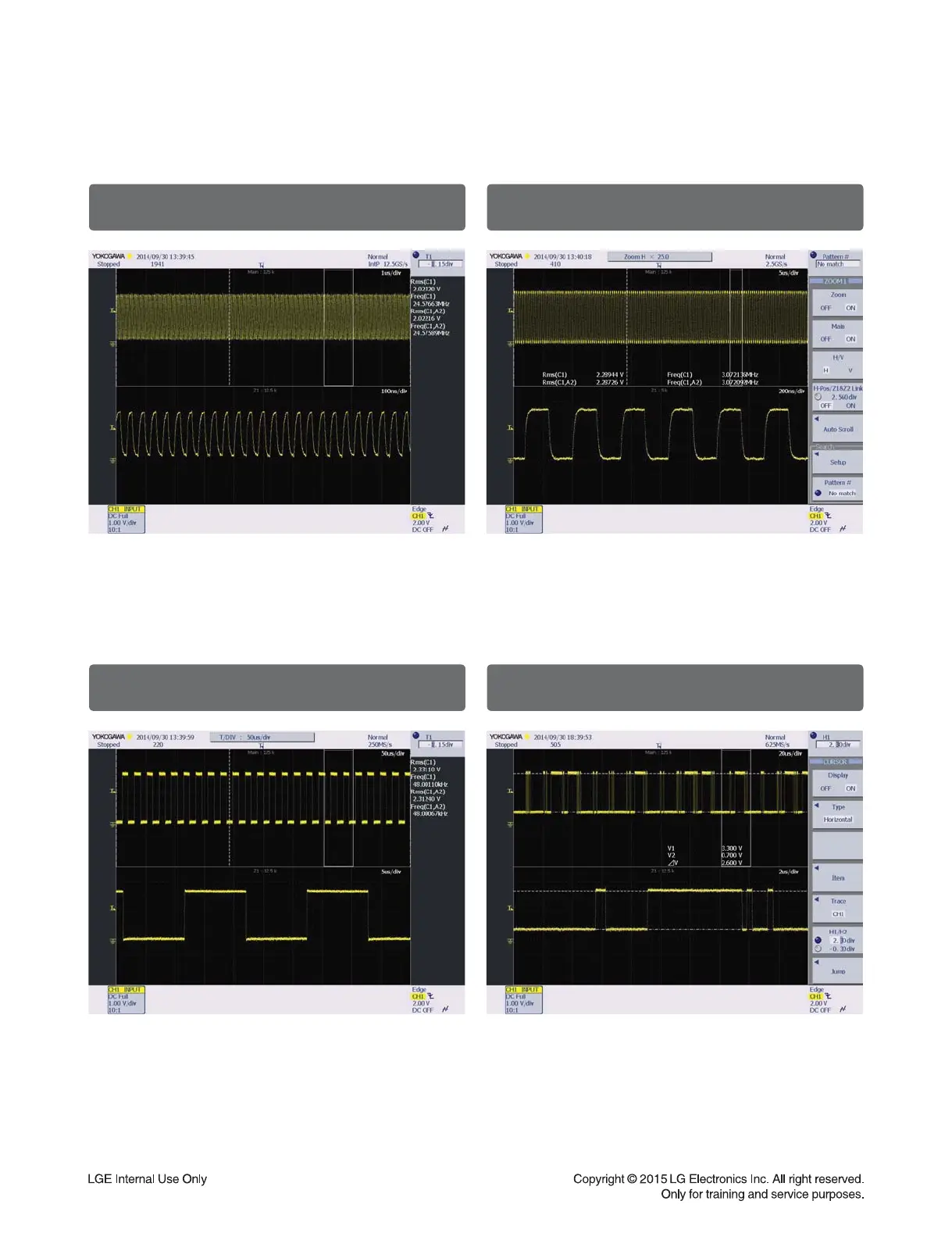

ADC I2S WAVEFORM (IC200)
M_I2S_MCLK Waveform (24.576 MHz) - PIN6
M_I2S_LRCK Waveform (48.00 MHz) - PIN7
M_I2S_BCK Waveform (3.072 MHz) - PIN8
M_ADC_DATA Waveform - PIN9
