3-2
DISASSEMBLY INSTRUCTIONS
Before you begin, position the main set upside down.
1. Cover Bottom Assembly
1) Remove the 20 screws on the main set.
2) Remove the Cover Bottom Assembly.
2. Cover Back
1) Remove the 11 screws securing the Cover Back.
2) Detach the power cord from the Cover Back.
3) Remove the Cover Back.

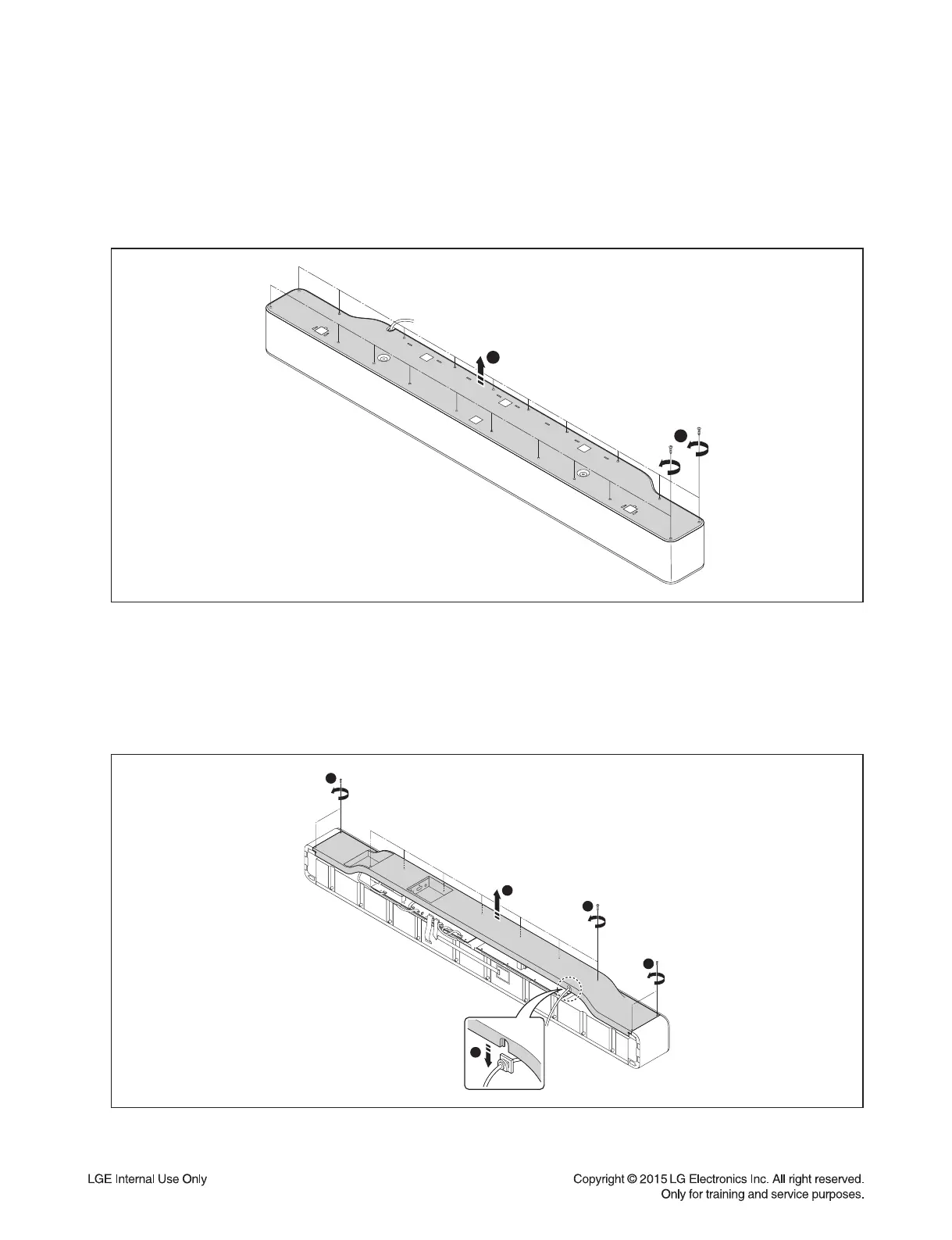

Fig. 2
Fig. 1
1
1
3
1
Cover Back
Power Cord
2
1
2
Cover Bottom Assembly
