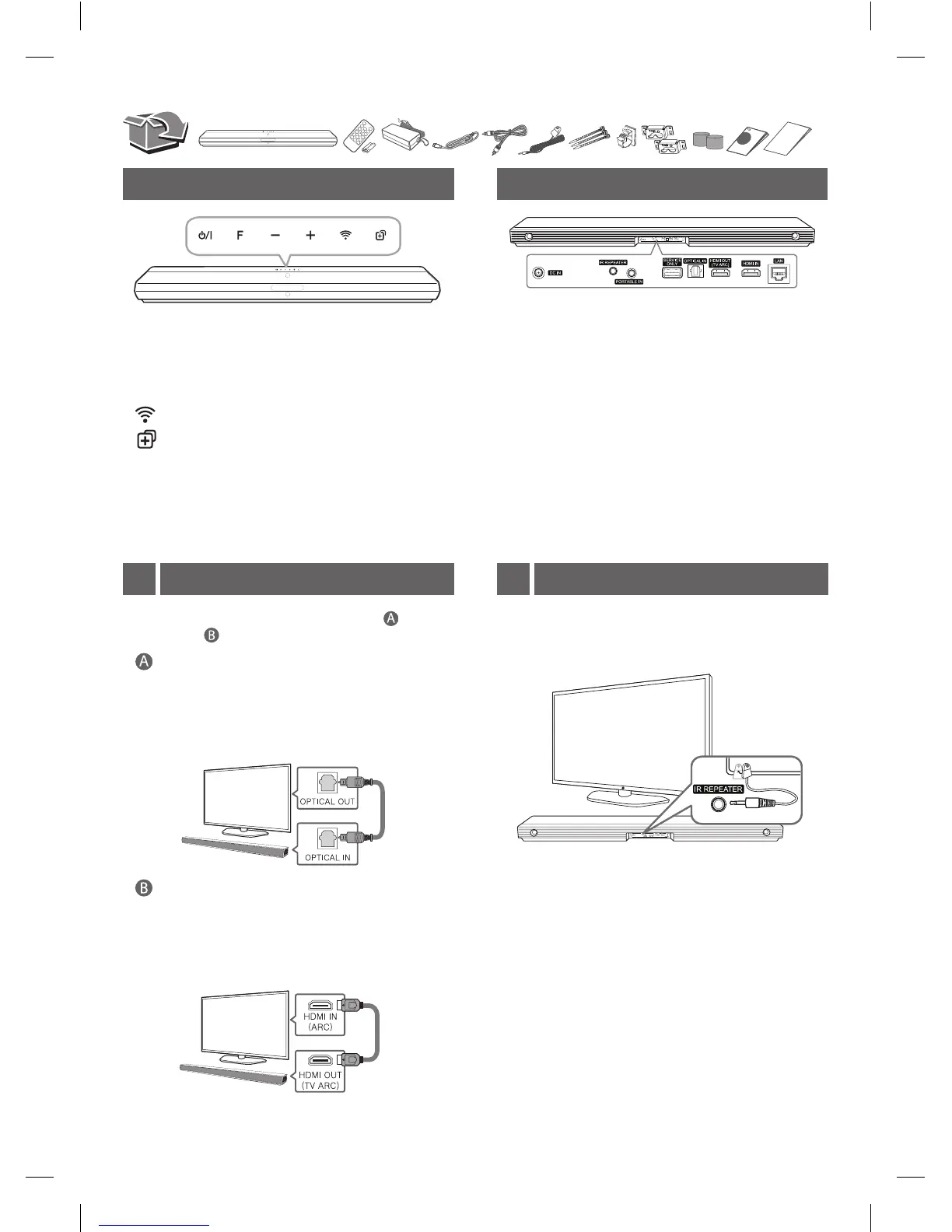

Front Panel Rear Panel
1/! ·······························Standby / On
F ································Selects function
-/+ ·······························Adjusts volume
····················Connects wireless network.
··Connects an additional LG Smart Hi-Fi Audio
product.
DC IN ·····················Connect to AC Adapter.
IR REPEATER ············Connect to IR Repeater.
PORTABLE IN · · · · · · · · · · · Connect portable device.
USB (Service only) ······S/W download connector.
OPTICAL IN ···········Connect to an optical device
HDMI OUT (TV ARC) ············· Connect to a TV.
HDMI IN ······· Connect to device with HDMI OUT.
LAN···························· Connect to router.
IR Repeater Connection2
IR Repeater is supplied as an accessory with the unit
in order to communicate well with the remote control
and the TV.
a Put IR Repeater on the back of the unit with the
sensor of IR Repeater facing the remote sensor
of the TV.
b Connect the end of IR Repeater to IR REPEATER
jack.
a Connect the speaker to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on
your TV setting menu.
TV
TV
TV Connection 1
Optical
HDMI(ARC) Connection
a Connect the speaker to the TV using HDMI
cable.
b Set up [External Speaker (HDMI ARC)] on
your TV setting menu.
Connect the speaker and TV using Optical ( ) or
HDMI ARC ( ).
TV
