Additional Information
Specication
Power
consumption
Refer to the main label.
AC adapter
y
Model :
DA-38A25
y
Manufacturer : Asian Power
Devices Inc.
y
Input :
100 - 240 V ~ 50 - 60 Hz
y
Output : 25 V
0
1.52 A
Dimensions
(W x H x D)
Approx.
891.0 mm X 57.5 mm X 87.8 mm
With foot
(35 inch x 2.2 inch x 3.4 inch)
Bus Power
Supply (USB)
5 V 0 500 mA
Amplier
(Total RMS
Output power)
360 W RMS
Design and specications are subject to change
without notice.
Rear Speakers Ready
Ready for surround sound with Rear Speakers
Kit sold separately. (SPK8-S)
Subwoofer Connection1
Place the wireless subwoofer near the speaker and
follow steps below.
a Connect the power cord of wireless subwoofer
and sound bar to the outlet.
b Turn on the main unit :
The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Subwoofer Connection Manually
If the subwoofer does not make sound, try to
connect manually.
a Press Pairing button on the rear of the wireless
subwoofer.
y
The green LED on the rear of wireless
subwoofer blinks quickly. (If the green LED
does not blink, press and hold the Pairing
button.)
b Turn on the main unit.
c Pairing is completed.
y
The green LED on the rear of wireless
subwoofer turns on.

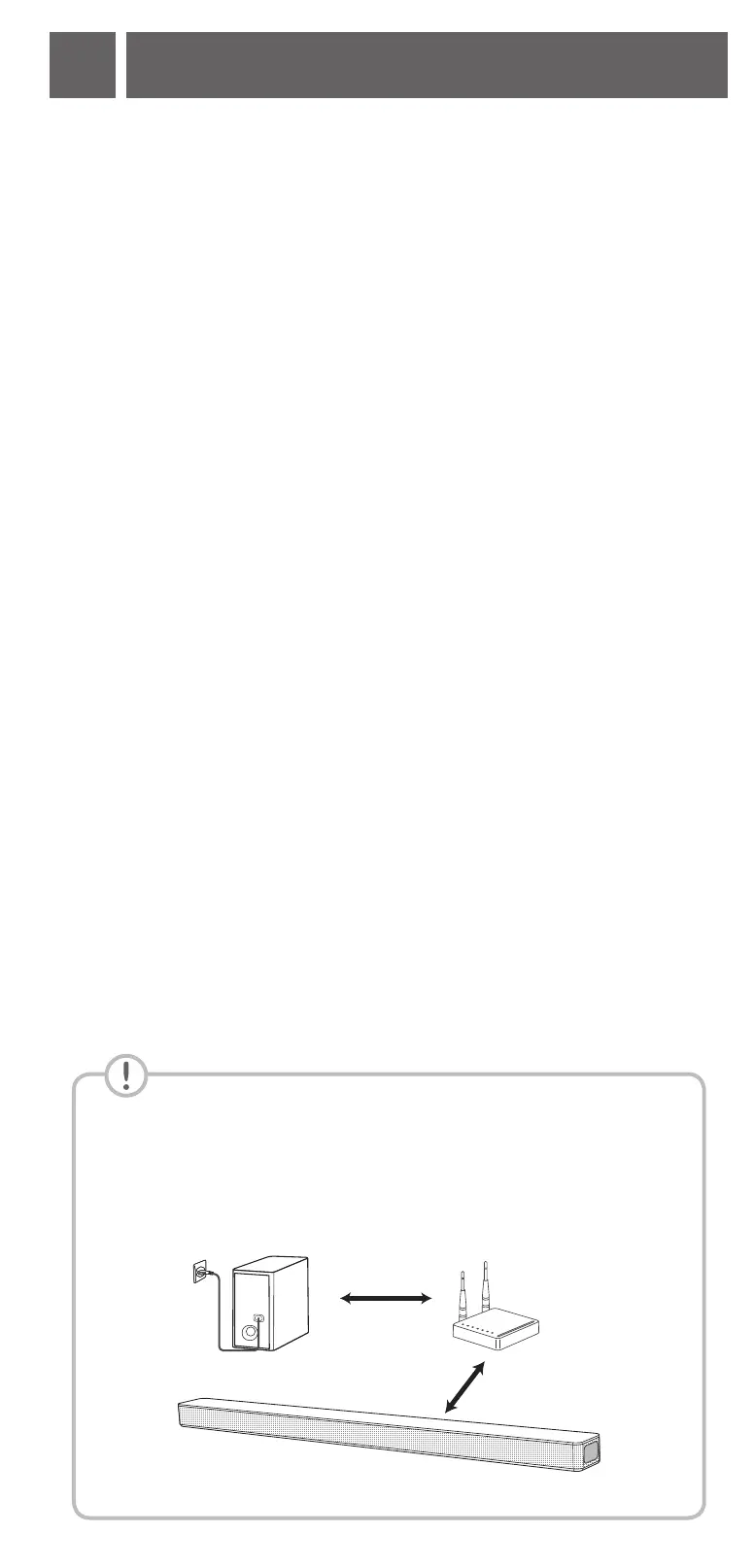

Keep the sound bar and the subwoofer away
from the device (ex. wireless router, microwave
oven, etc.) over 1 m (3.3 ft) to prevent wireless
interference.
!
1 m
(3.3 ft)
ASC/DTS V:X/BASS BLAST: Selects the sound effect.
REAR +/-: Adjusts the volume level of rear speakers. (For
rear speakers)
Adjustment of the Rear speakers volume
levels and using Surround Sound are applied
only when the rear speakers are connected.
Rear speaker kit sold separately.
WOOFER +/-: Adjusts the volume level of subwoofer.
AUTO POWER ON/OFF: Automatically turns on by an
input source.
Replacement of battery
Remote control
a Connect the sound bar to the TV using
Optical cable.
b Set up [External Speaker (Optical)] on
your TV setting menu.
TV
TV
TV Connection 2
Optical Connection
HDMI(ARC) Connection
a Connect the sound bar to the TV using
HDMI cable.
b Set up [External Speaker (HDMI ARC)] on
your TV setting menu.
Connect with the Sound Bar and TV using
Optical (
) or HDMI ARC ( ).
Additional Device Connection
a Connect to the external device as follows.
TV
OR
(Set-top Box,
Player etc.)
b Set the input source by pressing F on the remote
control or unit repeatedly.
y
HDMI connection is unavailable if your TV
does not support HDMI ARC.
y
If this unit is connected by OPTICAL and
ARC at the same time, the ARC signal is a
high priority.
Front Panel
1 (Standby)···········Switches the unit ON or OFF
F (Function) ·······················Selects Function
o/p (Volume) ·················· Adjusts Volume
Rear Panel
DC IN ·················· Connect to the AC adapter
OPTICAL IN · · · · · · · · · · · Connect to an Optical device
PORTABLE IN ········ Connect to a Portable device
USB
·················· Connect to a USB device
HDMI OUT (TV ARC) ·············· Connect to a TV
HDMI IN ········· Connect to HDMI out on a device
The buttons are located on the side.
