1. AMP IC

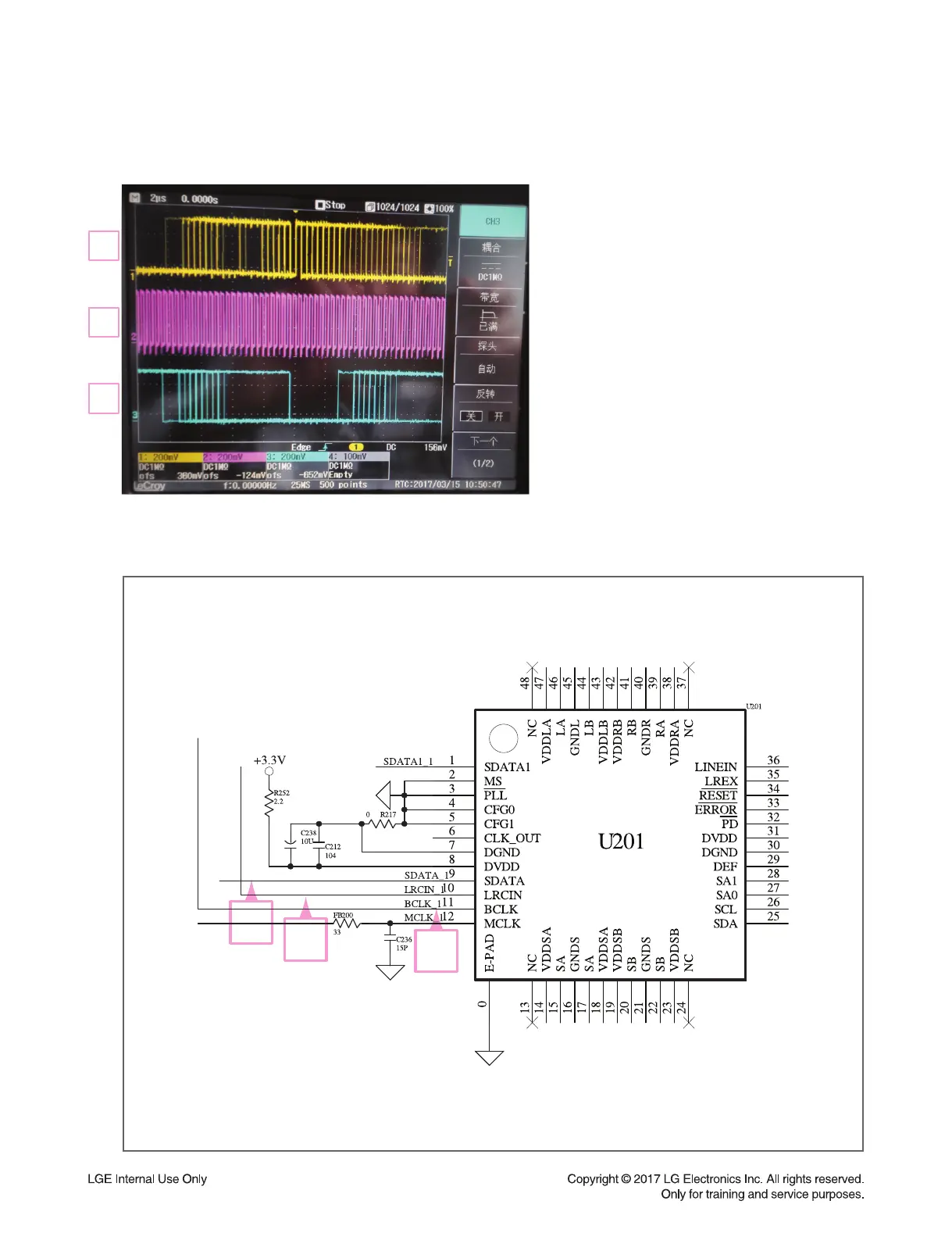

FIG 1. U201 pin9, 10, 11
AMP_SDATA
AMP_BCLK
AMP_LRCIN
2
3
1
1
2
3
4-6
WAVEFORMS OF MAJOR CHECK POINT
