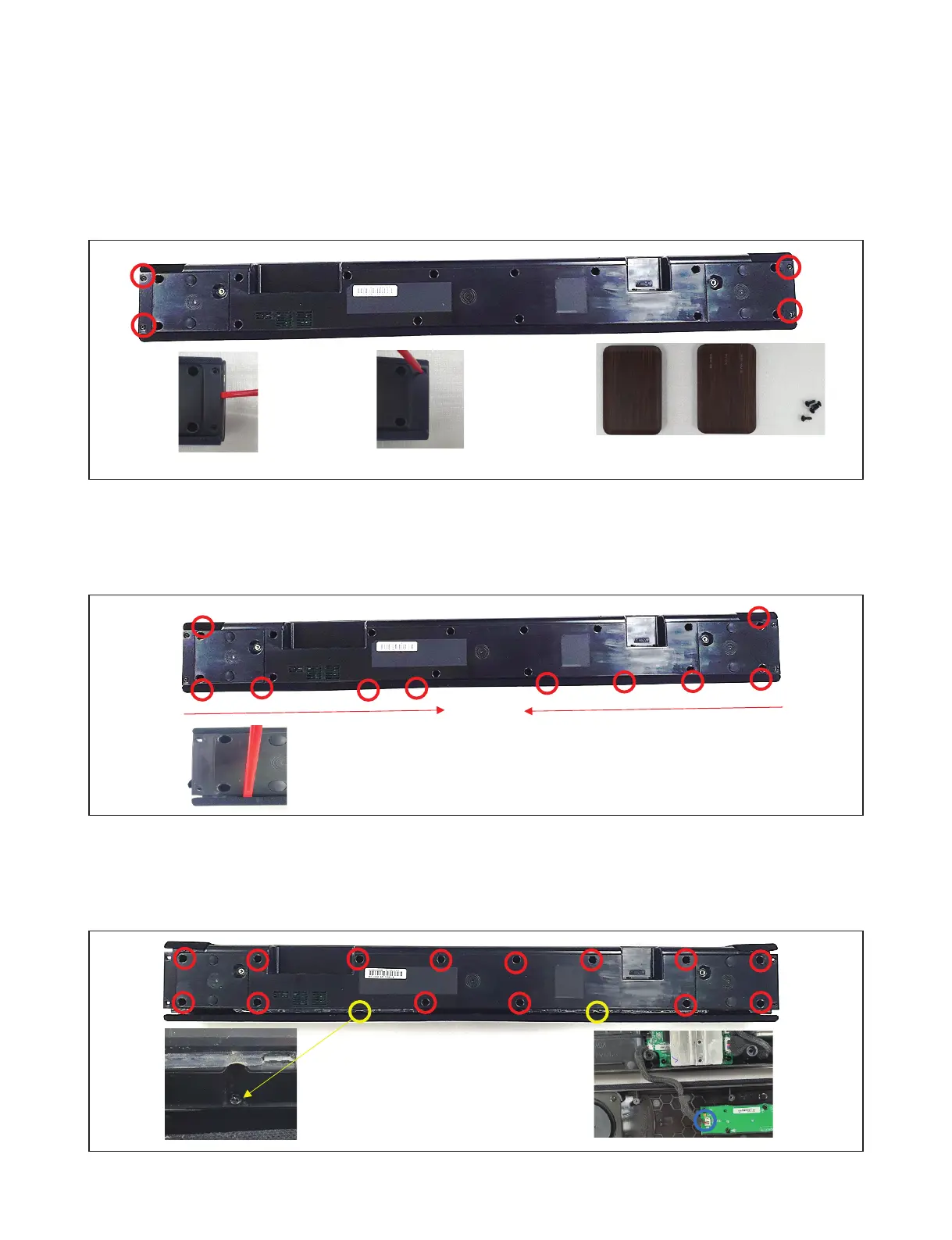

1. HOW TO DISASSEMBLE THE MAIN HOUSING
DISASSEMBLY INSTRUCTIONS
1-1. DISASSEMBLE OF SIDE COVER
Disassemble Red points Screw(CTB3+8GFZR) : 4 EA
Method A : Use Hera Method B : Use awl
How to disassemble the Hook
Step 1: Disassemble 4ea in A direction.
Step 2: Disassemble 4ea in B direction.
Step 3: Disassemble the 2ea of rear (C).
1-2. DISASSEMBLE OF TOP HOUSING
Step 1. Disassemble Red points Hook : 10 EA (Use Plastic paddle)
- Use a plastic remover for vehicles (Use Hera)
Step 2. Disassemble Red points Screw(CTB3+10GFZR) : 16 EA
- 2 screws are hidden. (Yellow Point)
Step 3. Disassemble the key PCB cord wire of Top Housing. (Blue Point)
