3. HOW TO DISASSEMBLE THE BOTTOM HOUSING

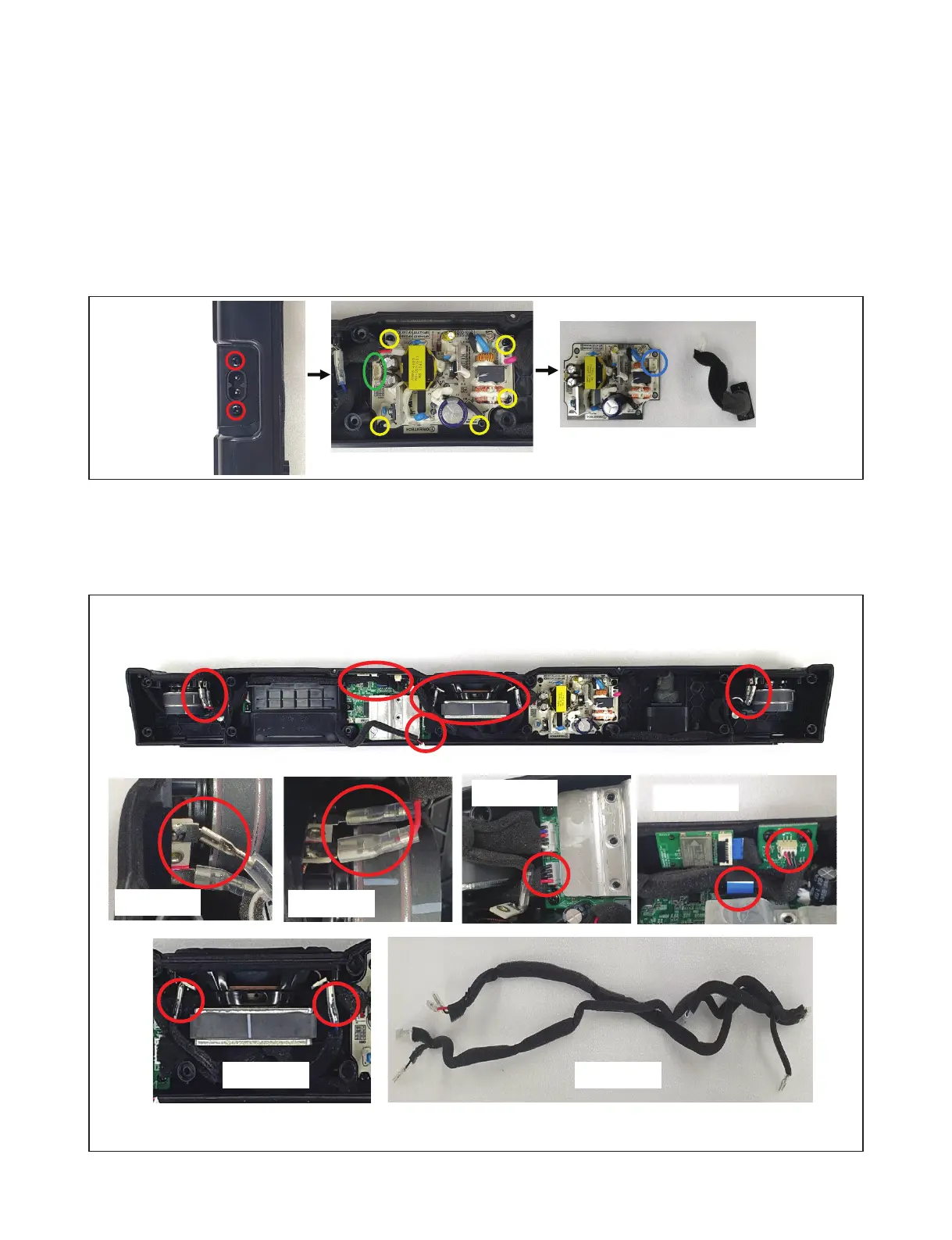

3-1. DISASSEMBLE OF SMPS AND AC INLET JACK
Step 1. Disassemble Red points Screw(CTB3+8GFZR) : 2 EA
Step 2. Disassemble Yellow points Screw(CTB3+8GFZR) : 5 EA
Step 3. Disassemble Green points Cord wire Jack
Step 4. Disassemble AC Inlet Jack (Blue Point)
3-2. DISASSEMBLE OF CORD WIRE
Step 1. Disassemble Red points Cord wire Jack : 5 Points
Step 2. Disassemble Cord wire (Figure F)
A
B
E
D
C
Figure A
Figure B
Figure C
Figure D
Figure E Figure F
