LG SPM2 Service Manual

2-11
Copyright © 2022 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

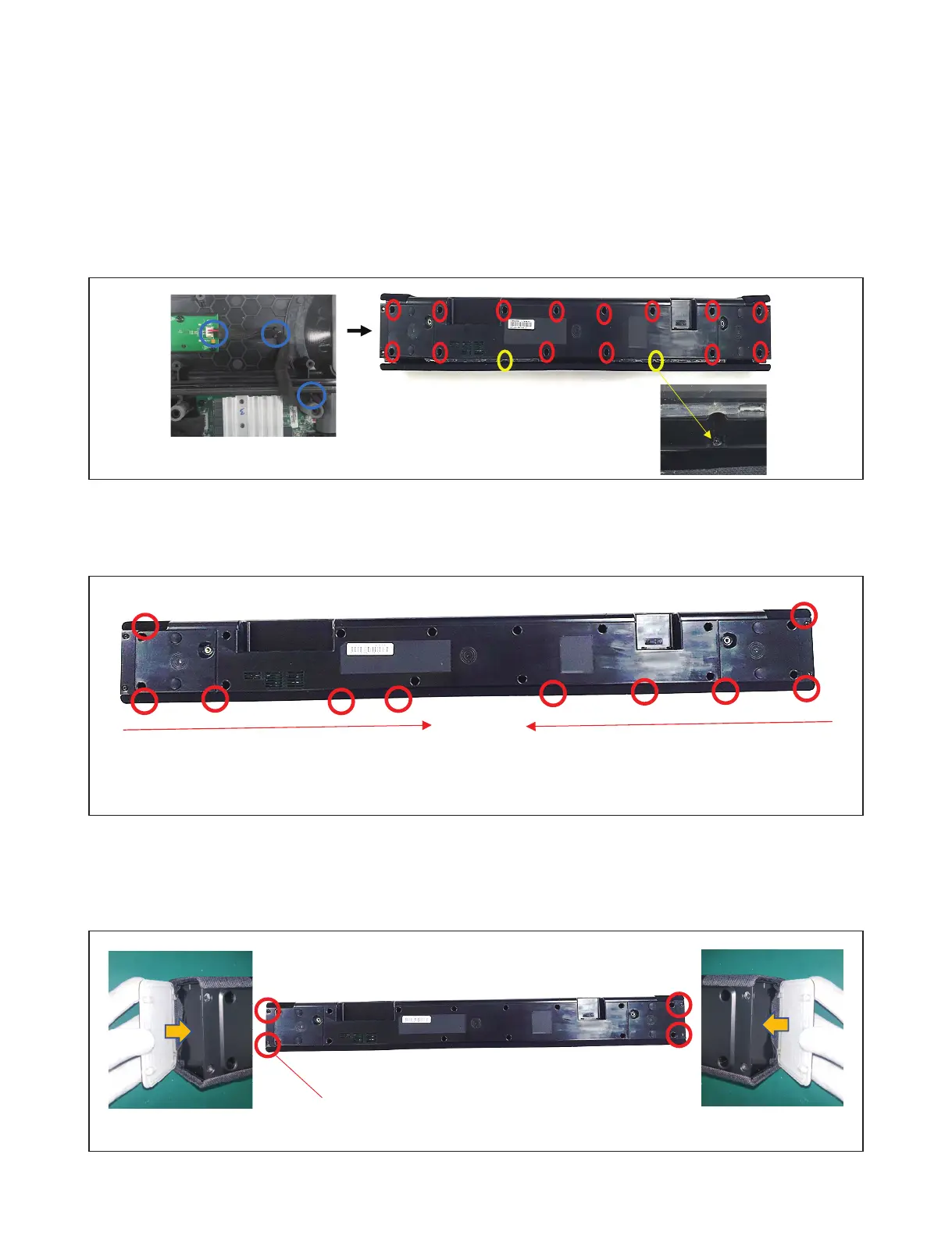

3. HOW TO ASSEMBLE THE MAIN HOUSING
Step 1
Step 2
3-1. ASSEMBLE OF TOP HOUSING
Step 1. Assemble the key PCB cord wire of Top Housing. (Use a blue point hook)
Step 2. Close top and bottom and assemble Red points Screw(CTB3+10GFZR) : 16 EA
- 2 screws are hidden. (Yellow Point) [Closing torque : 6.5 ± 0.5kgf.cm]
Step 1
Step 2
Step 3
3-2. ASSEMBLE OF SIDE COVER
Step 1. Assemble the Side cover R Step 2. Assemble the Side cover L
Step 3. Assemble Red points Screw(CTB3+8GFZR) : 4 EA [Closing torque : 4.0 ± 0.5kgf.cm]
AB
C
C
Step 3. Assemble Red points Hook : 10 EA
How to Assemble the Hook
Step 1: Assemble the 2ea of rear (C)
Step 2: Disassemble 4ea in B direction.
Step 3 : Disassemble 4ea in A direction.
