LG SPM2 Service Manual

2-7
Copyright © 2022 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

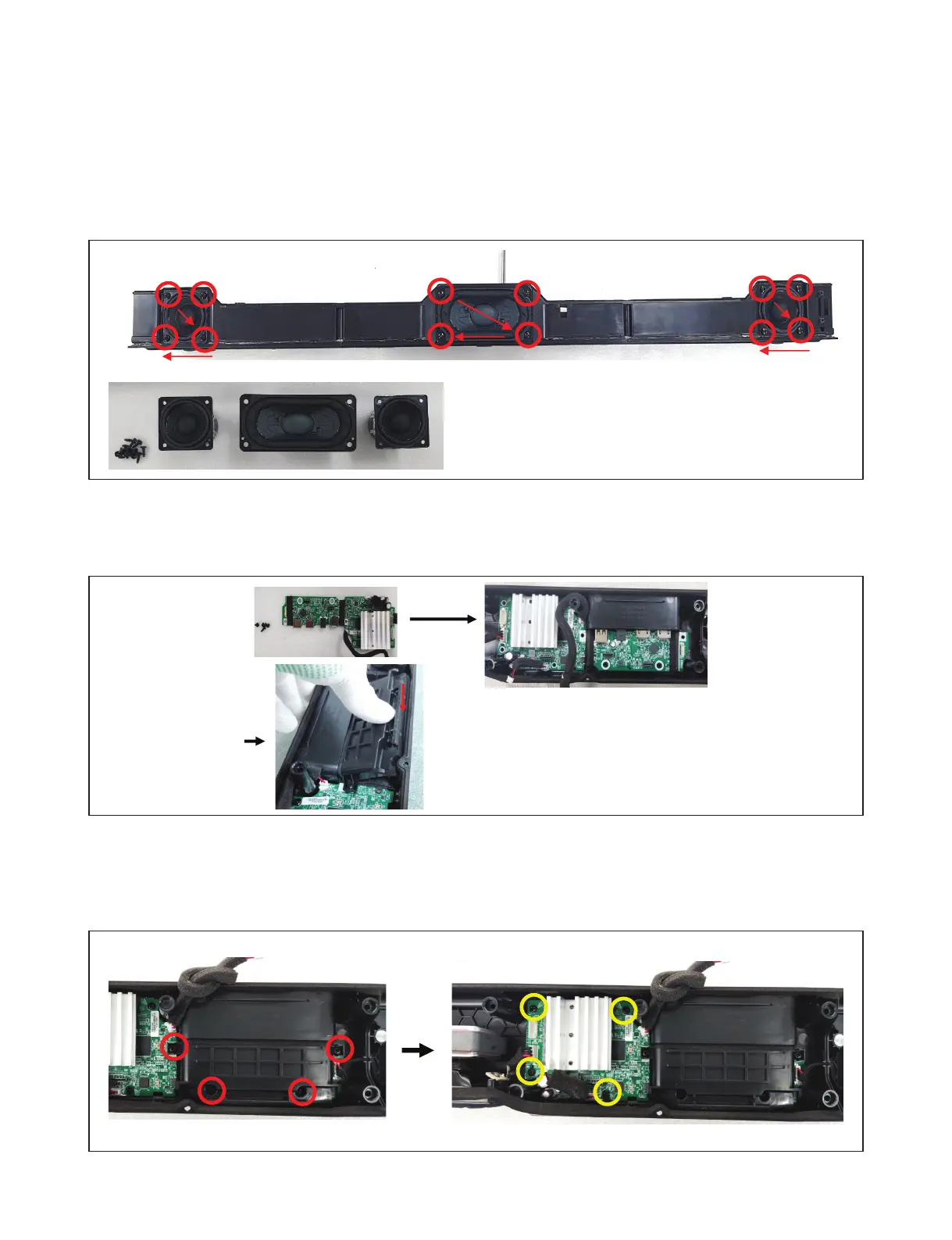

ASSEMBLY INSTRUCTIONS
1. HOW TO ASSEMBLE THE BOTTOM HOUSING
1-1. ASSEMBLE OF SPEAKER
Assemble Red points Screw(CTB3+10GFZR) : 12 EA [Closing torque : 5.0 ± 0.5kgf.cm]
1-3. ASSEMBLE OF JACK COVER
Assemble Red points Screw(CTB3+10GFZR) : 4 EA [Closing torque : 6.0 ± 0.5kgf.cm]
Assemble Yellow points Screw(CTB3+8GFZR) : 4 EA [Closing torque : 6.0 ± 0.5kgf.cm]
A
B
1-2. ASSEMBLE OF MAIN PCB AND JACK COVER
Assemble the main PCB to the bottom housing.
※ Caution
When assembling a speaker,
the screw is assembled diagonally.
How to assemble the Main PCB and Jack cover
Step 1: Assemble the main PCB to the bottom housing.
Step 2: Insert the jack cover into the groove on the side (A)
of the bottom housing.
Step 3: Press (B) to completely assemble the jack cover.
